Telguard HGDL-0 Product Description:

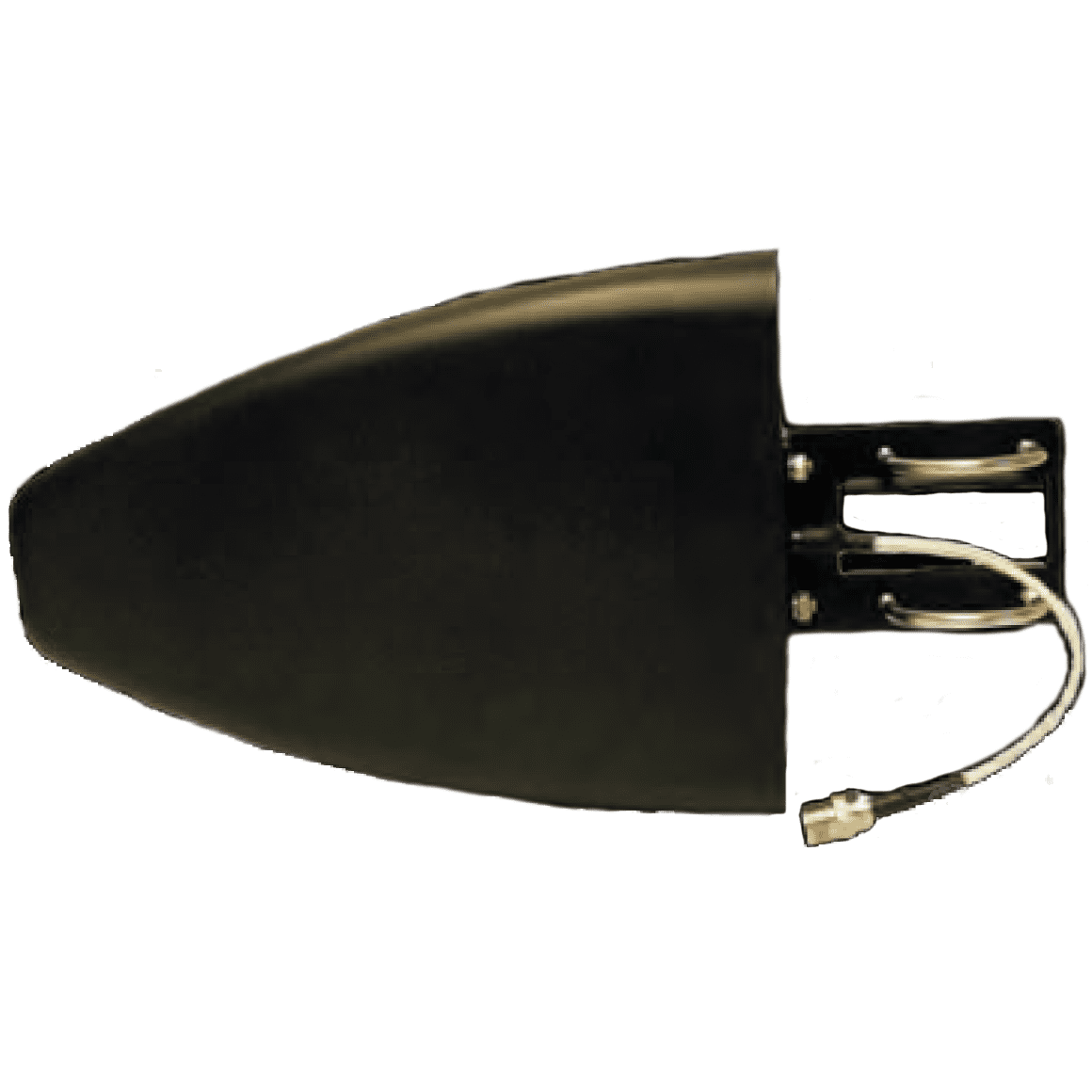

The Telguard HGDL-0 is a high-gain, wideband, directional, cellular LTE antenna. The HGDL-0 antenna is designed to support all Telguard cellular LTE alarm communicators.

The EXDL-0 does not include the following cables. When using the EXDL-0 for TG-1 Express use CTXL-12. And when using the EXDL-0 for TG-1B, TG-4, and TG series use ACD-12/35/50/100.

Product Features:

Mechanically robust for both Indoor/Outdoor applications
Excellent 700 MHz LTE performance
Self-contained design requiring no ground plane
Applicable for both 3G and 4G application
Focused power captures more signals
Multiple bands: 690-2700 MHz

Telguard HGDL-0 Specifications:

Radiation Pattern: Directional
Frequency: 690-2700 MHz
Gain: 8-10dBi
Bandwidth: VSWR: <1.5 1 = 690-2700 MHz
Front to Back Ration: >20dB
Beamwidth: H70° V70°
Impedance: 50 ohms
Max Input Power: 100 watts
Exterior Finish: Black UV stable
Dimensions: 11.575" L x 8" H x 2.375" D (294 x 203 x 60.325 mm)
Weight: 1.365 lbs. (623 kg)
Installation: U-bolts forup to 1.75" pole
Cable: 8" DA195
Polarization: Vertical
Wind Rating: >110 MPH
Warranty: 5 Years

Telguard HGDL-0 Kit Includes:

Antenna with integral radial
Ground plane connector
Mounting Bracket
TNC Adapter
