HG72710LP-NF - Videofied Cellular Antenna (Powered by L-Com Hyperlink)

HG72710LP-NF - Videofied Cellular Antenna (Powered by L-Com Hyperlink)
HG72710LP-NF - Videofied Cellular Antenna (Powered by L-Com Hyperlink)
Item# HG72710LP-NF

Please Note: The L-Com Hyperlink HG72710LP-NF cellular antenna has been discontinued without replacement.

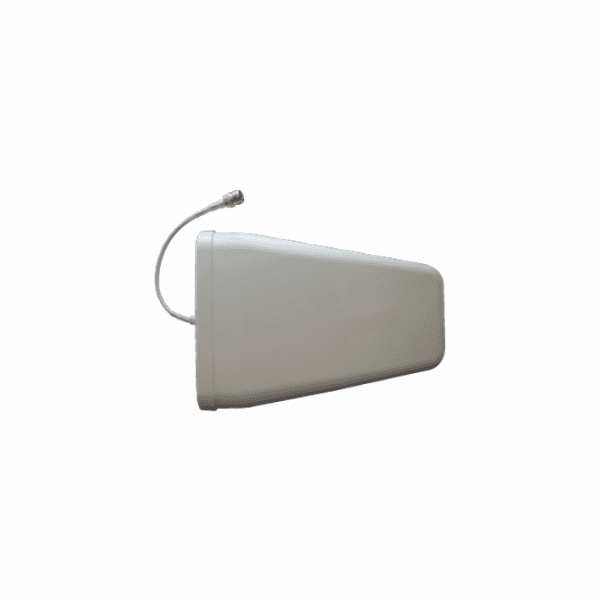

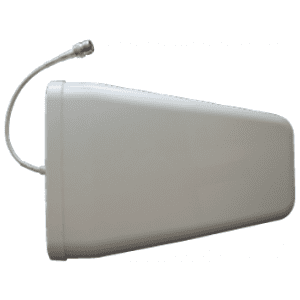

L-Com HG72710LP-NF Product Description:


The L-Com Hyperlink HG72710LP-NF is a high performance wide band log periodic antenna designed to operate from 698-960 MHz and 1710-2700 Mhz for Videofied XT-Series Control Panels (XT-IP630 and XTO-IP630). This Wideband design eliminates the need to purchase different antennas for each frequency. This simplifies installations since the same antenna can be used for a wide array of wireless applications where wide coverage is desired.

The HG72710LP-NF is ideal for Distributed Antenna Systems, DAS. A DAS system is used to distribute Cellular and WiFi signals throughout a building or area. It is also suited for directional and multipoint IEEE 802.11b/g/n wireless LANs, public wireless hotspot applications and other systems operating in the 2.4GHz ISM band. The broadband characteristics of the antenna enable it to operate over a very wide frequency range. This antenna features 9/10 dBi of gain and a 56°/45° vertical beam width.

The internal components of this antenna are enclosed within a UV-stable white ABS radome for all-weather operation. It is supplied with a tilt and swivel mast mount kit.

Product Features:

  • Superior Performance
  • Weatherproof ABS
  • Compatible with Videofied XT-Series Control Panels (XT-IP630 and XTO-IP630)
  • Internal combiner eliminated the need for separate coax cables for each frequency
  • Supplied with tilt and swivel mast bracket
  • DAS (Distributed Antenna Systems)
  • 700MHz and cellular applications
  • AWS (Advanced wireless services) and PCS (Personal communication services)
  • IEEE 802.11b/g WiFi applications
  • Weight: 2.5 lbs
  • LTE networks
