Item# TX-8010-01-1

Please Note: The Interlogix TX-8010-01-1 DesignLine wireless garage door sensor has been discontinued without replacement.

Interlogix TX-8010-01-1 Product Description:

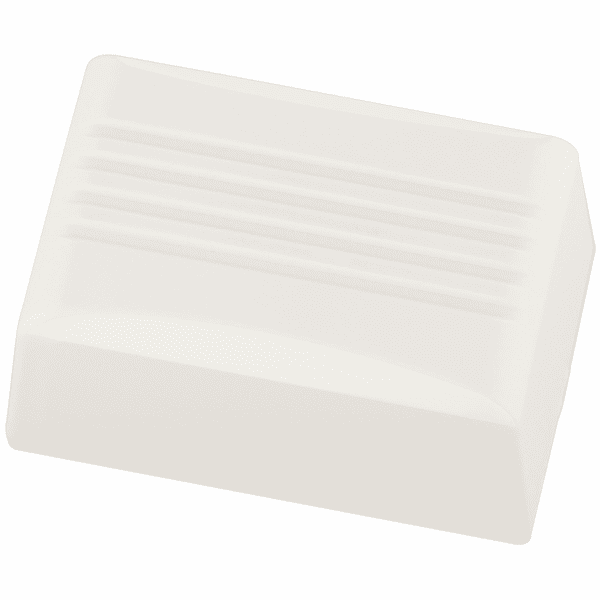

The GE Interlogix TX-8010-01-1 is a garage door sensor that extends intrusion protection to garage structures, enabling users to regularly monitor the garage door's opening for complete home security. Once armed, if the garage door opens to a 45° angle, the sensor goes into an alarm condition which can turn on the siren and automatically call the central alarm monitoring station. The sensor can also transmit an open and close signal to the panel each time the garage door is opened of closed.

To prevent false alarms, this sensor comes equipped with a built-in one-second delay feature in case the garage door shakes during windy conditions. In addition, the sensor also sends a supervisory signal to the panel every 64 minutes and is equipped with a cover tamper for added security.

Unique to the GE Simon XT wireless alarm control panel, the TX-8010-01-1 wireless garage door sensor is the first wireless sensor that can protect an overhead garage door opening. When considering full home security, most people fail to protect their overhead garage door since a regular wireless door & window alarm contact does not work on an overhead door. The TX-8010-01-1 now gives you an easy option for securing your garage door.

Product Features:

  • Compact size allows mounting directly on inside of garage door; no wiring needed
  • Event-driven updates on door status
  • Supervisory reports on battery and transmitter condition
  • Trip delay features reduces false alarms
  • Sensor cover tamper for added security

Interlogix TX-8010-01-1 Product Specifications:


  • Dimensions (L x W x D): 4.32 x 2.76 x 23.2 (cm) or 1.7" x 1.1" x 0.91" (in)
  • Weight: 0.63oz (18g)
  • Operating Temperature: 10° to 120°F (-12° to 49°C)
  • Battery: (1) CR2032, 3V coin cell lithium battery (included)
  • Battery Life: 5 years (typical use)
  • Transmitter Frequency: 319.508MHz (crystal-controlled)
  • Transmitter Frequency Tolerance: ±8kHz
  • Bandwidth: 24kHz
  • Peak Field Strength: Typical 35,000µV/m at 3m
  • Tilt Switch Angle: 45°
  • Supervisory Interval: 64 minutes
  • Colors: Belgian Grey
  • Approvals: FCC
