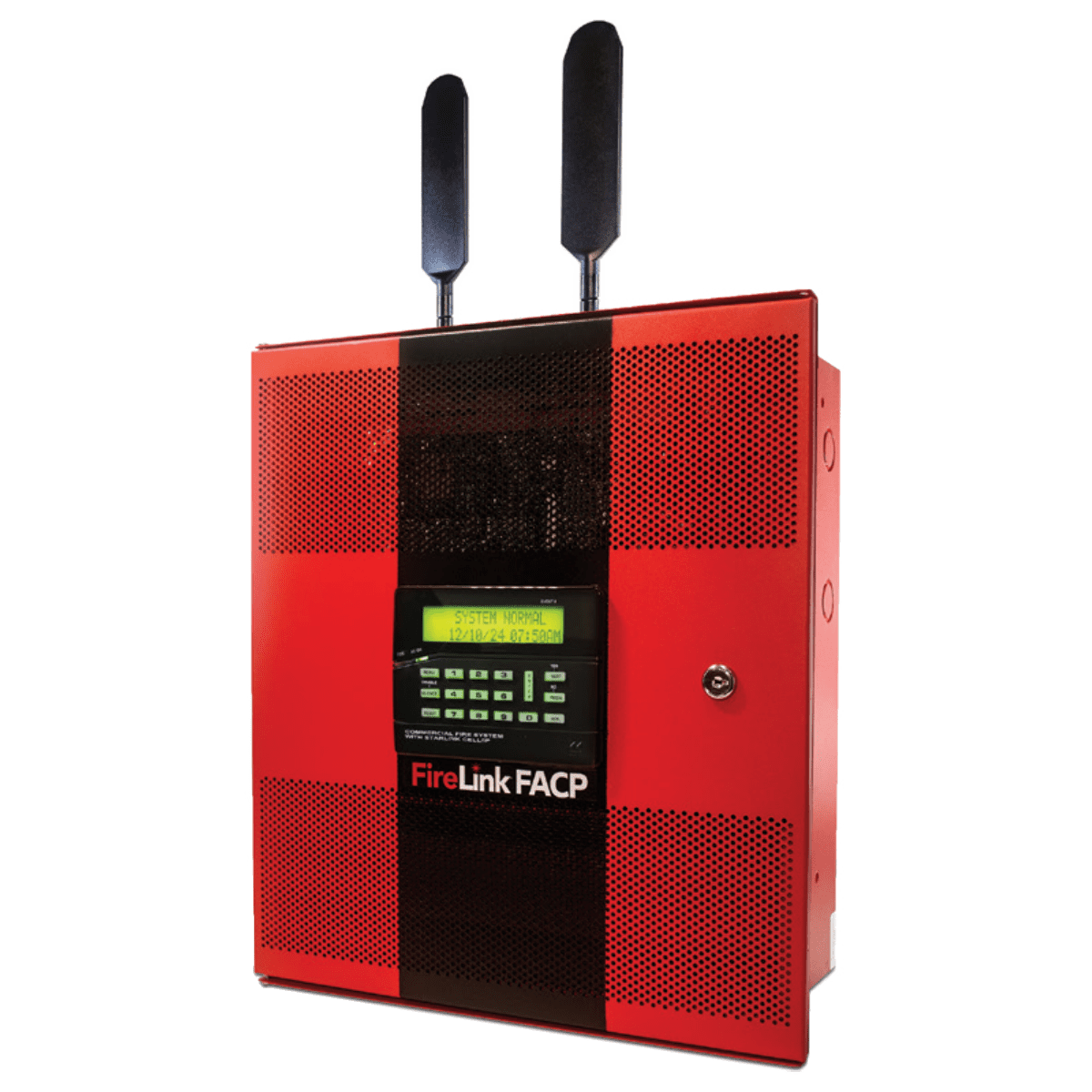

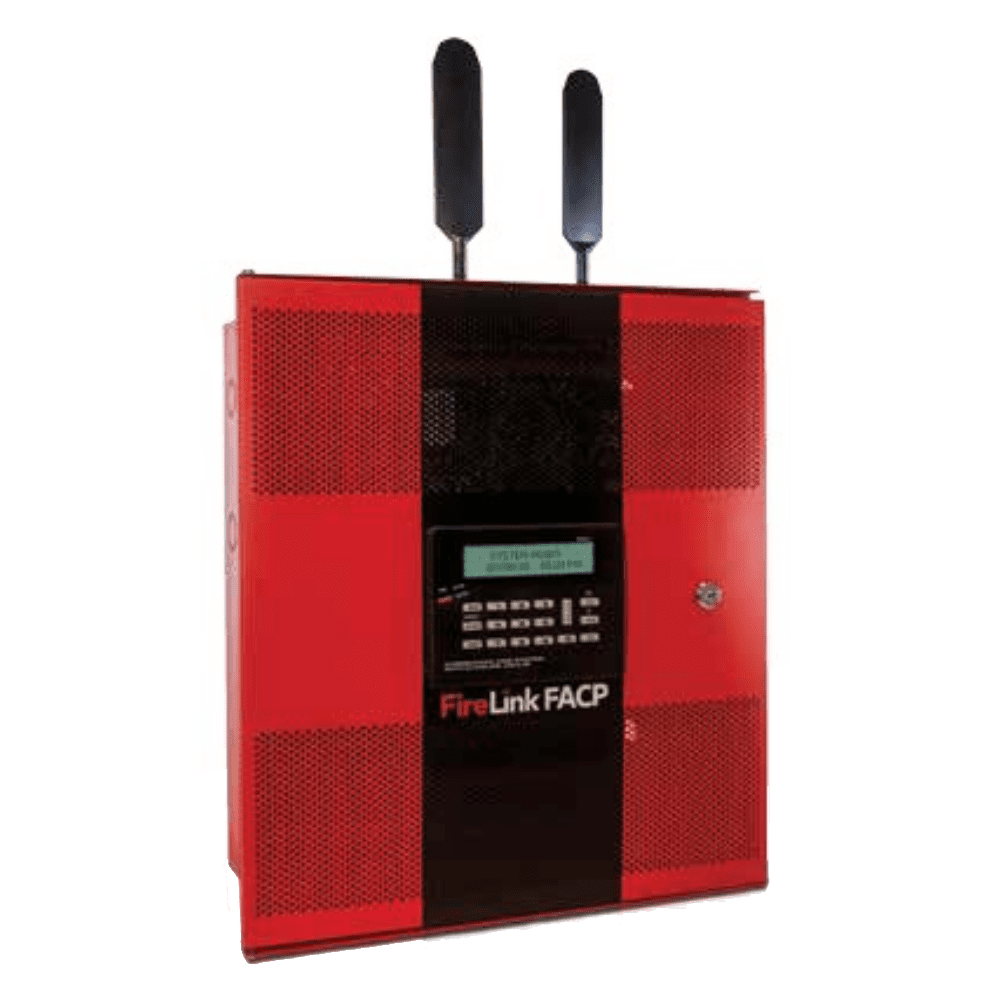

FLX2-32 - Napco FireLink Self-Contained Commercial Fire FACP with StarLink Max 2 Dual-SIM AT&T/Verizon Alarm Communicator
Napco FLX2-32 Product Description:
The Napco FLX2-32 FireLink Self-Contained Commercial Fire FACP is an advanced, full-featured fire alarm control panel designed for reliable and intelligent reporting in commercial settings. Featuring an award-winning, self-contained design, it integrates a built-in StarLink Max 2 dual SIM cellular alarm communicator, ensuring seamless cellular reporting. The system intelligently switches between Verizon and AT&T, selecting the best Quality of Service (QoS) for optimal connectivity, with dynamic failover capabilities that maintain reporting reliability at all times. Equipped with proven high-performance dual diversity twin antennas and signal boost circuitry, the FLX2-32 guarantees greater range and dependable communication, whether using cellular or IP models.
This powerful FACP comes preprogrammed with 7 conventional points and supports expansion up to 32 points, accommodating both conventional and addressable devices. Its robust 4A onboard power supply ensures stable operation, while flexible programming options are available through cloud-based or software solutions, allowing for customized setup and control via PC. Designed for versatility and dependability, the Napco FLX2-32 delivers an exceptional fire detection and alarm management solution that adapts effortlessly to diverse commercial environments, providing peace of mind through advanced communication technology and comprehensive system capabilities.
Product Features:
- Includes 32 point with StarLink MAX 2 FACU with Dual Sim/Dual Cellular Network
- Auto-selects between Verizon and AT&T Cell Networks for the best signal
- Supports 7 conventional zones, expandable to 32 zones max through analog addressable, wireless and convectional GEMC devices
- Fire annunciator mounted on front cover, supports up to 6 additional remote annunciators
- Includes 2 NAC circuits, 2A each at 24V, supports Wheelock and Systems Sensor synchronization protocol
- System completely assembled/wired
- Requires direct 120VAC power connection
- Includes basic conventional default program suitable for sprinkler supervision and basic fire applications
- Programmable Over The Air through PCD Windows QuickLoader software
Napco FLX2-32 Product Specifications:
- Dimensions: Locking Enclosure for surface mount* or recess mounting (between the studs) 16"x 14.25" x 5.2" (H x W x D) without cover. Houses up to 16Ah @ 24V battery backup capacity.
- FACP: 8 to 32 Zone Conventional Fire Alarm Control Panel, 8 conventional fire zones, suitable for 2-wire fire, expandable to 32; 2 to 4 programmable NAC circuits, 2A @ 24V
- Built-In Annunciator: Menu-driven operation with backlit custom alphanumeric display and functionality for Reset, Acknowledge, Silence (with disable).
- Onboard, Integrated StarLink Fire MAX2 Dual SIM Cellular Communicator: Code-compliant, replaces 2 POTS lines to save thousands of dollars per year over leased landlines.
- Choice of Plans: sole path, dual path Cell/IP or Super Dual Cell-only Supervised Dual Path.
- Reports to any Central Station: via dial up or IP, without any special equipment
- Power Supply: 4A @ 24V
- 2 Onboard serial ports: one for high-speed local downloading
- Fully Cloud Programmable from smart devices/tablets: Preprogrammed, or optional Quickloader® Software custom programmable.
- Warranty: 36-Month Napco Warranty
*Note: For flush mount applications, use external antennas
Napco FLX2-32 Pre-Programmed Out of Box:
- Zone 1: Waterflow
- Zone 2: Supervisory (Tamper)
- Zone 3: Conventional Fire Zone
- Zone 4: Conventional Fire Zone
- Zone 5: Conventional Fire Zone
- Zone 6: Conventional Fire Zone
- Zone 7: Conventional Fire Zone
- Zone 8: Supervisory (Cell/IP Communicator Trouble)
- Plus Expansion: up to 32 Zones/Points.
Napco FLX2-32 FACP Expansion Options:
- Expandable with conventional or SLC addressable devices
- Main FACP board supports 1 Addressable Fire SLC (addressable Signaling Line Circuit controllers)
- Fire 4-wire bus for annunciators and non-SLC (conventional) devices
- Supports up to 6 additional Red fire annunciators, GEMC-FK1 or FireLink FL-FK1 or FLX-RFA, mounted anywhere on the bus
- Addressable SLC Loop Isolator (optional use - for fire applications requiring increased circuit integrity, e.g., meets Class A, Style 7 loop requirements.
- SLC Fire Devices supported: Analog smoke detector, analog heat detector, duct detector, pull station, conventional zone module & short circuit isolator
Napco FLX2-32 FACP Inputs:
- Up to 32 Zones/Points from a wide range of initiating devices
- Addressable SLC Loop- supports up to 1, 32 point loop
- Conventional 1- to 4-zone EZM Expansion modules on the 4-wire fire bus or SLC loops
- Conventional 2-wire or 4-wire smoke detector inputs
- SLC Fire Devices supported: analog smoke detector, analog heat detector, duct detector, pull station, conventional zone module & short circuit isolator
Napco FLX2-32 FACP Outputs:
- Up to 96 outputs
- Two onboard NAC circuits, 2 amps each, total 4A @ 24V
- Onboard Wheelock & System Sensor NAC sync/strobe/horn protocol allows initial silence of audible appliances while maintaining visual notification, without the use of additional modules
- Addressable SLC Fire Devices: Supervised relay, unsupervised relay
- Fire 4-wire bus devices: 8 zone form C relay (GEMC-RM3008), 8 open collector output (GEMC-OUT8)
- Support for Legacy and Existing Notification Appliances - One NAC output configurable for 12V for easy retrofit compatibility
- UL Regulated NAC output
- Automatic drift compensation for SLC smoke detectors
- Programmable obscuration level by smoke detector device
- Tri-Mode Smoke Obscuration Report (for addressable detectors) generated remotely or locally (see WI2309LF instructions)
