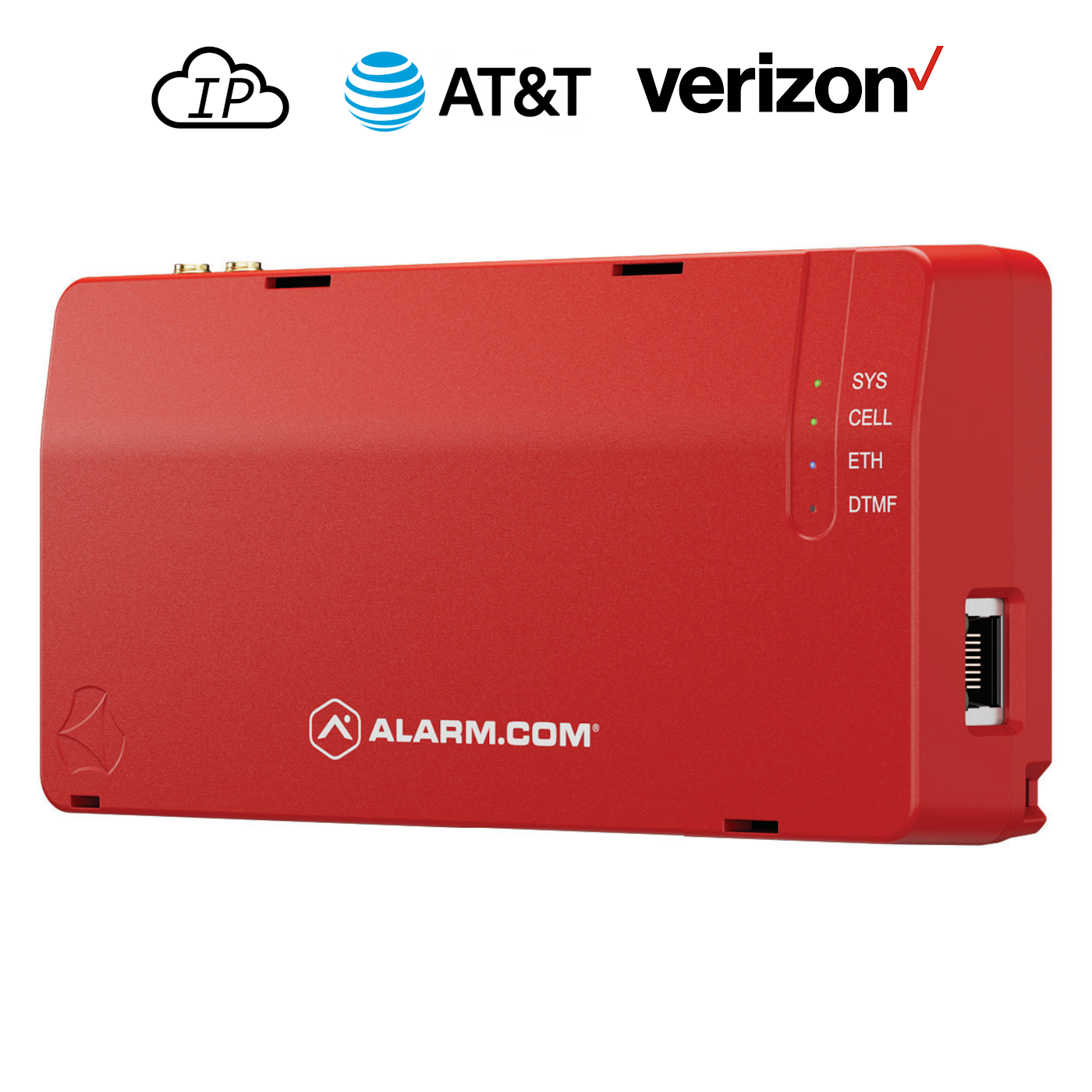

ADC-FC100-T10-AT-VZ - Alarm.com Dual-Path Ethernet/Cellular AT&T and Verizon LTE Commercial Fire Alarm Communicator (for Universal Contact ID or SIA Control Panels)
Alarm.com ADC-FC100-T10-AT-VZ Product Description:
The ADC-FC100-T10-AT-VZ Alarm.com dual-path ethernet/cellular commercial fire alarm communicator is a professional-grade fire alarm communication solution designed to deliver dependable, secure, and cost-effective commercial fire monitoring. Compatible with universal Contact ID and SIA fire alarm control panels, the ADC-FC100-T10-AT-VZ seamlessly integrates with the Alarm.com platform to provide reliable alarm signal transmission over both Ethernet broadband and dual-SIM AT&T/Verizon LTE cellular networks. Whether protecting office buildings, retail stores, warehouses, schools, healthcare facilities, or other commercial properties, this communicator offers the performance and reliability required for modern life safety applications.
Built to meet stringent commercial fire requirements, the ADC-FC100-T10-AT-VZ is UL Listed and NFPA 72 compliant, helping businesses satisfy applicable fire alarm communication standards. Its advanced dual-path communication continuously utilizes both Ethernet and cellular connectivity to help ensure alarm signals reach the central monitoring station even if one communication path becomes unavailable. Additionally, integrated dual-SIM technology automatically switches between supported cellular carriers, providing enhanced network availability and maximizing communication reliability during carrier outages or service interruptions.
More than just a fire alarm communicator, the ADC-FC100-T10-AT-VZ brings commercial fire systems into the powerful Alarm.com for Business platform. Property owners, facility managers, and authorized users receive real-time alarm notifications, system alerts, automated reports, and event history from virtually anywhere using the Alarm.com mobile app or secure web portal. This unified platform provides greater visibility into fire system activity while simplifying remote management and improving overall operational awareness.
The Alarm.com ADC-FC100-T10-AT-VZ Dual-Path Commercial Fire Alarm Communicator is an ideal upgrade for businesses seeking a modern, code-compliant fire alarm communication solution. Combining universal panel compatibility, redundant Ethernet and LTE communications, automatic carrier switching, and cloud-based monitoring capabilities, the ADC-FC100-T10-AT-VZ delivers exceptional reliability, enhanced situational awareness, and peace of mind for protecting people, property, and business operations.
Product Features:
- Dual-Path Communications - Combines Ethernet and LTE cellular connectivity for reliable, redundant alarm signal transmission.
- Dual SIM - Automatically switches between supported AT&T/Verizon cellular carriers to maximize network availability.
- Dual Capture DTMF (POTS) - Supports reliable alarm signal capture from traditional analog telephone (POTS) connections.
- Supervised Relay Inputs - Monitors relay input status to help detect wiring faults or changes in connected devices.
- Contact ID & SIA Support - Compatible with industry-standard Contact ID and SIA alarm reporting formats.
- UL Listed, NFPA 72 Compliant - Meets UL listing requirements and complies with NFPA 72 fire alarm communication standards.
- Remote Firmware Updates - Receives firmware updates remotely to keep the communicator current with the latest features and enhancements.
- Pre-Activated Cellular SIM(s) - Includes pre-activated SIM cards for faster installation and simplified deployment.
Alarm.com ADC-FC100-T10-AT-VZ Product Specifications:
- Dimension of PCB: 6.4 x 2.9 inches (163mm x 73mm)
- Dimension of Plastic Enclosure: 6.77 x 3.35 x 1.38 inches (172mm x 85mm x 35mm)
- Communication Paths: Cellular: 4G LTE, LAN: Ethernet
- Protocol Supported : ContactID, SIA
- Transmission Security : AES Encryption
- Voltage Supply : 24 VDC (Acceptable 12 VDC - 28 VDC)
230mADC @12VDC, 160mADC @24VDC - Cellular Network: Dual-SIM AT&T Verizon LTE
- Operating Temperature: 32°F to 120°F (0°C to 49°C)
- Max. Relative Humidity: 0-93% (without condensation)
- Input/Output: 4 x inputs (100mA/30VDC)
3 x relay outputs (max. load 1A/30VDC)
1 x OC output (max. load 0.6A/36VDC) - Carriers : Telit LE910C1-SNXD
Alarm.com ADC-FC100-T10-AT-VZ Product Documents:
General Information
- Data Sheet
- Firmware Revision History
- Installation Guide
- Manual
- Programming Guide
- Quick Install Guide
- Inspection Guide
- Panel Setup Guide (Honeywell Fire-Lite ES-50X/ES-200X/ES-1000X)
- Panel Setup Guide (Honeywell Silent Knight 6700/6808/6820)
- Panel Setup Guide (Potter AFC-50/AFC-100/AFC-1000)
- Power and Wiring Guide
- Dialer Codes
- Compatibility Requirements
How-to-Troubeshooting Guides
- Create a Customer Account Using a Fire Alarm Control Panel (FACP)
- Create an Alarm.com Customer Account
- Signals are Not Forwarding to the Monitoring Station
- Module LED Guide
- Troubleshooting Guide
- Remote Programming is Blocked by a Local Communicator Setting
Frequently Asked Questions
- Frequently Asked Questions
- Can Hybrid Fire/Intrustion Panels be Used?
- Can I Remotely View Zone Equipment Lists?
- Can the Firmware be Upgraded Remotely?
- How are Phone Line and Relay Reporting Events Displayed?
- How Does Relay Reporting Work?
- How Does it Get Power?
- How Should it be Tested?
- What are the Signal Strength Requirements?
- What do SW1, SW2, and SW3 do?
- What Monitoring Station Settings Need to be Set?
- What Service Package Options are Available?
- What UL Standards and Other Certifications are Meet?
Alarm.com ADC-FC100-T10-AT-VZ Product Includes:
- 2 x LTE Antennas
- 1 x Plastic Enclosure
- 1 x Mounting Bracket
