ADC-VDB780B-W115C-KIT - Alarm.com 2MP Battery-Powered Wi-Fi Video Doorbell Camera and Smart Chime Kit
Alarm.com ADC-VDB780B-W115C-KIT Product Description:

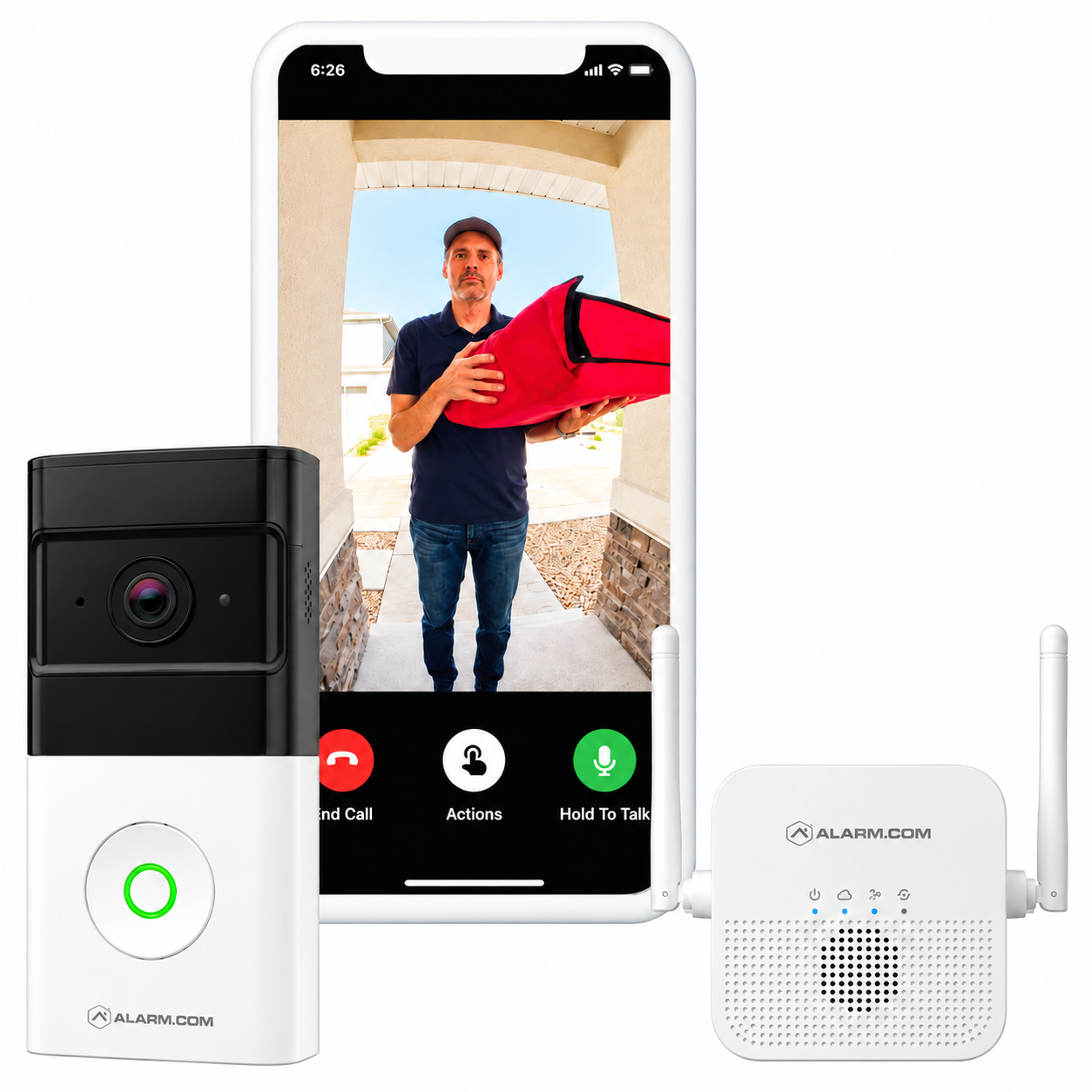

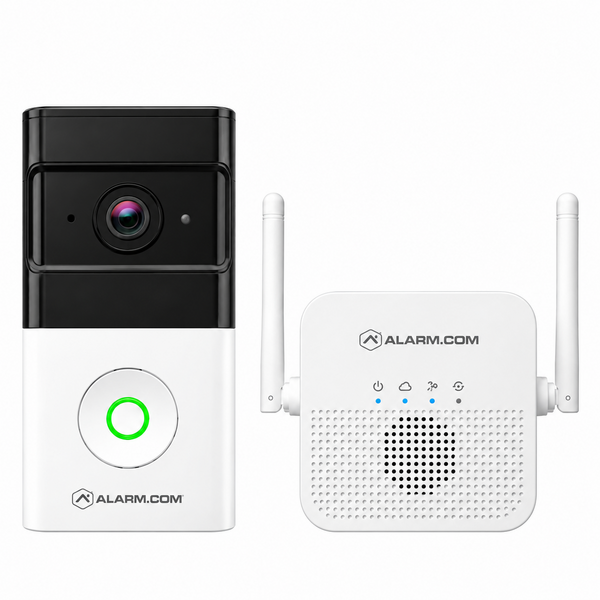

The Alarm.com ADC-VDB780B-W115C-KIT bundle includes the Alarm.com ADC-VDB780B 2MP battery-powered WiFi video doorbell and the ADC-W115C smart chime.
The Alarm.com ADC-VDB780B Wireless Video Doorbell is a battery-powered doorbell camera that features HD video, Video Analytics for rapid people detection, Two-Way Audio, a wide field of view, and a rechargeable battery. This completely wireless video doorbell gives you the flexibility to choose the perfect installation location without depending on the existing wiring or chime. The VDB780B must be connected over Wi-Fi to the Alarm.com Smart Chime (ADC-W115C).
Product Features:
- Completely wireless installation
- Rechargeable (micro USB) battery pack
- Optimized for battery life that is expected to last up to six months
- Advanced motion detection provides increased awareness with timely alerts
- Two-Way Audio through the mobile app
- Installation flexibility for optimal viewing
- 160° horizontal FOV
- Full HD 1080p recording
- Wi-Fi connection to the Alarm.com Smart Chime (ADC-W115C)
Alarm.com ADC-VDB780B-W115C-KIT Product Specifications:
ADC-VDB780B Video Doorbell
- Dimensions (W x L x D): 2.5 x 5.3 x 1.2" (64 x 134 x 30 mm); mounting bracket adds 0.2" (6 mm) to depth
- Recording compression: H.264
- Ingress protection: IP66
- Max resolution: 1920x1080
- Image sensor: 2.12 MP - 1080p, Sony IMX323 ABRcontrol support and MJPEG
- Lens/angle of view: 160° horizontal, 90° vertical, 175° diagonal
- Low-light sensitivity: 0.5 lux with IR LED off
- IR range: Up to 15 feet (5 meters)
- Image adjustments: Flip, brightness, contrast, saturation, sharpness, exposure
- Wi-Fi connectivity: 802.11 b/g/n, 2.4 GHz
- Operating and storage temperature: -4°F to 122°F (-20°C to 50°C)
- Operating humidity: 20% to 95% condensing RH
- Motion sensor: Passive infrared sensor
- Battery pack capacity: 9540mAh nominal capacity
- Charging requirement: 5V/1.5A charger
- Charging time: Up to 7 hours
- Speaker: 1W, 8Ω speaker
- Microphone: Single, omni-directional, analog, >-40dBV/Pa
ADC-W115C Smart Chime and WiFi Access Point
- Dimensions with Antennas (H x W x D): 5.0 x 1.0 x 2.1" (12.7 x 13.0 x 5.4 cm)
- Dimensions without Antennas (H x W x D): 3.3 x 3.3 x 2.1" (8.5 x 8.5 x 5.4 cm)
- WiFi Connection: 802.11 b/g/n, 2.4 GHz
- WiFi Security: WPA2
- LED Indicators: 4
- Buttons: WPS, Reset
- Antennas: 2
- WiFi Chime: 1.5 W speaker, 77 dB
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Operating humidity: 10% to 90% condensing RH
- Motion sensor: Passive infrared sensor
- Battery pack capacity: 9540mAh nominal capacity
- Charging requirement: 5V/1.5A charger
- Charging time: Up to 7 hours
- Speaker: 1W, 8Ω speaker
- Microphone: Single, omni-directional, analog, >-40dBV/Pa
Alarm.com ADC-VDB780B-W115C-KIT Product Documents:
ADC-VDB780B Video Doorbell:
- Data Sheet - Alarm.com Wireless Video Doorbell (ADC-VDB780B)
- Installation Guide - Alarm.com Wireless Video Doorbell (ADC-VDB780B)
- Charge Battery - Alarm.com Wireless Video Doorbell (ADC-VDB780B)
- Factory Reset to Default Settings - Alarm.com Wireless Video Doorbell (ADC-VDB780B)
- Supervision Intervals and Conditions - Alarm.com Wireless Video Doorbell (ADC-VDB780B)
- View the Battery Level - Alarm.com Wireless Video Doorbell (ADC-VDB780B)
- Spare Batteries Available - Alarm.com Wireless Video Doorbell (ADC-VDB780B)
- How Long Battery Last - Alarm.com Wireless Video Doorbell (ADC-VDB780B)
- LEDs Mean - Alarm.com Wireless Video Doorbell (ADC-VDB780B)
- Camera Name and Timestamp Missing - Alarm.com Wireless Video Doorbell (ADC-VDB780B)
ADC-W115C Smart Chime:
- Data Sheet - Alarm.com Smart Chime (ADC-W115C)
- Installation Guide - Alarm.com Smart Chime (ADC-W115C)
- Enable Video Doorbell Camera Notifications - Alarm.com Smart Chime (ADC-W115C)
- Factory Reset to Default Settings - Alarm.com Smart Chime (ADC-W115C)
- Ping to Verify Proper Communications - Alarm.com Smart Chime (ADC-W115C)
- Test Signal Strength - Alarm.com Smart Chime (ADC-W115C)
- Troubleshoot Not Stay Plugged Into Outlet - Alarm.com Smart Chime (ADC-W115C)
- How Many Can Doorbell Camera Ring at Once - Alarm.com Smart Chime (ADC-W115C)
- How Many Devices Can be Connected - Alarm.com Smart Chime (ADC-W115C)
- How Many on Single Account - Alarm.com Smart Chime (ADC-W115C)
- AP mode IP Address - Alarm.com Smart Chime (ADC-W115C)
Alarm.com ADC-VDB780B-W115C-KIT Includes:
- ADC-VDB780B Wireless Video Doorbell
- ADC-W115C Smart Chime and WiFi Access Point
- Battery pack
- Charging cable
- Mounting plate
- Mounting screws (2)
- Mounting anchors (2)
- Wedge screws (4)
- 10° tilt wedge
- Installation guide
