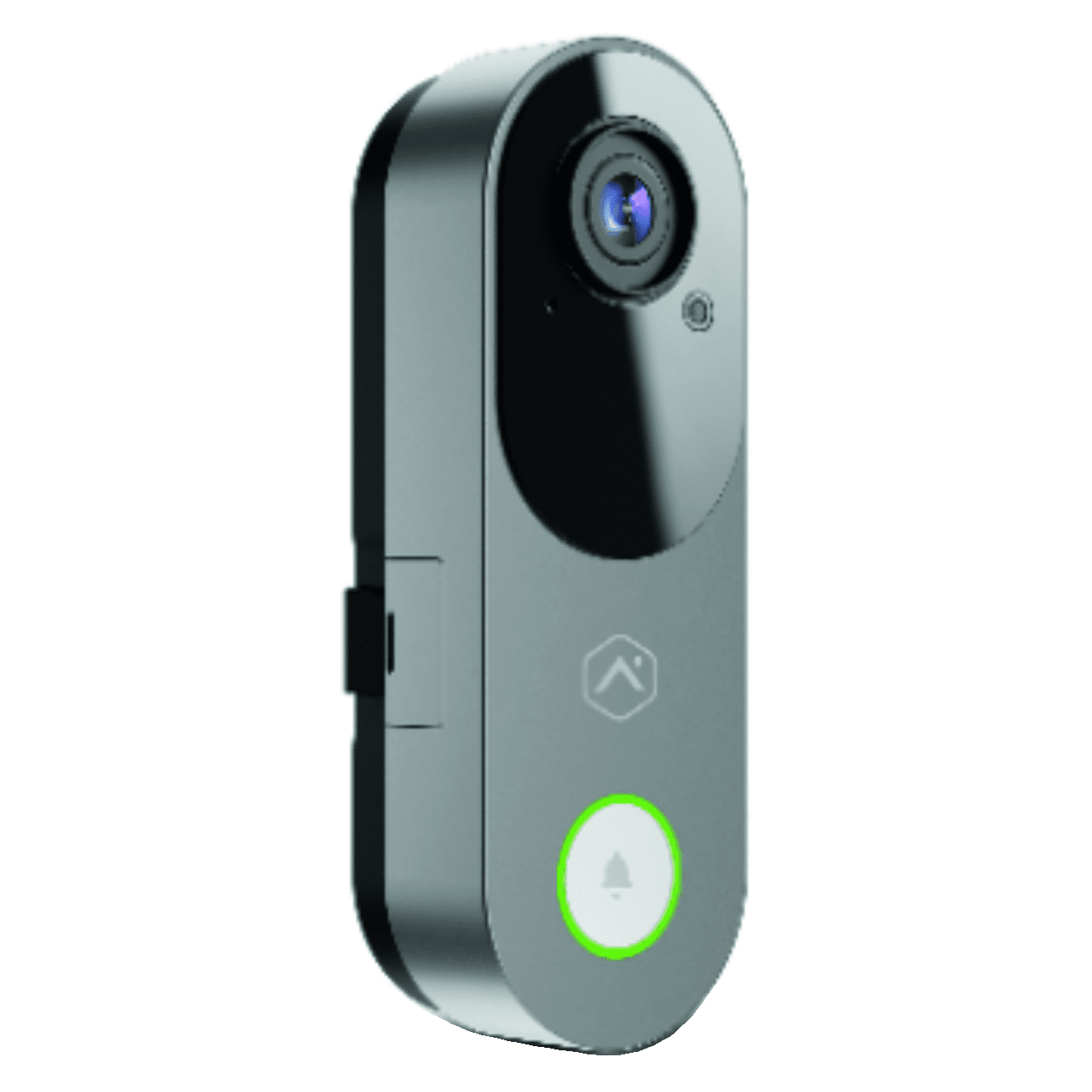

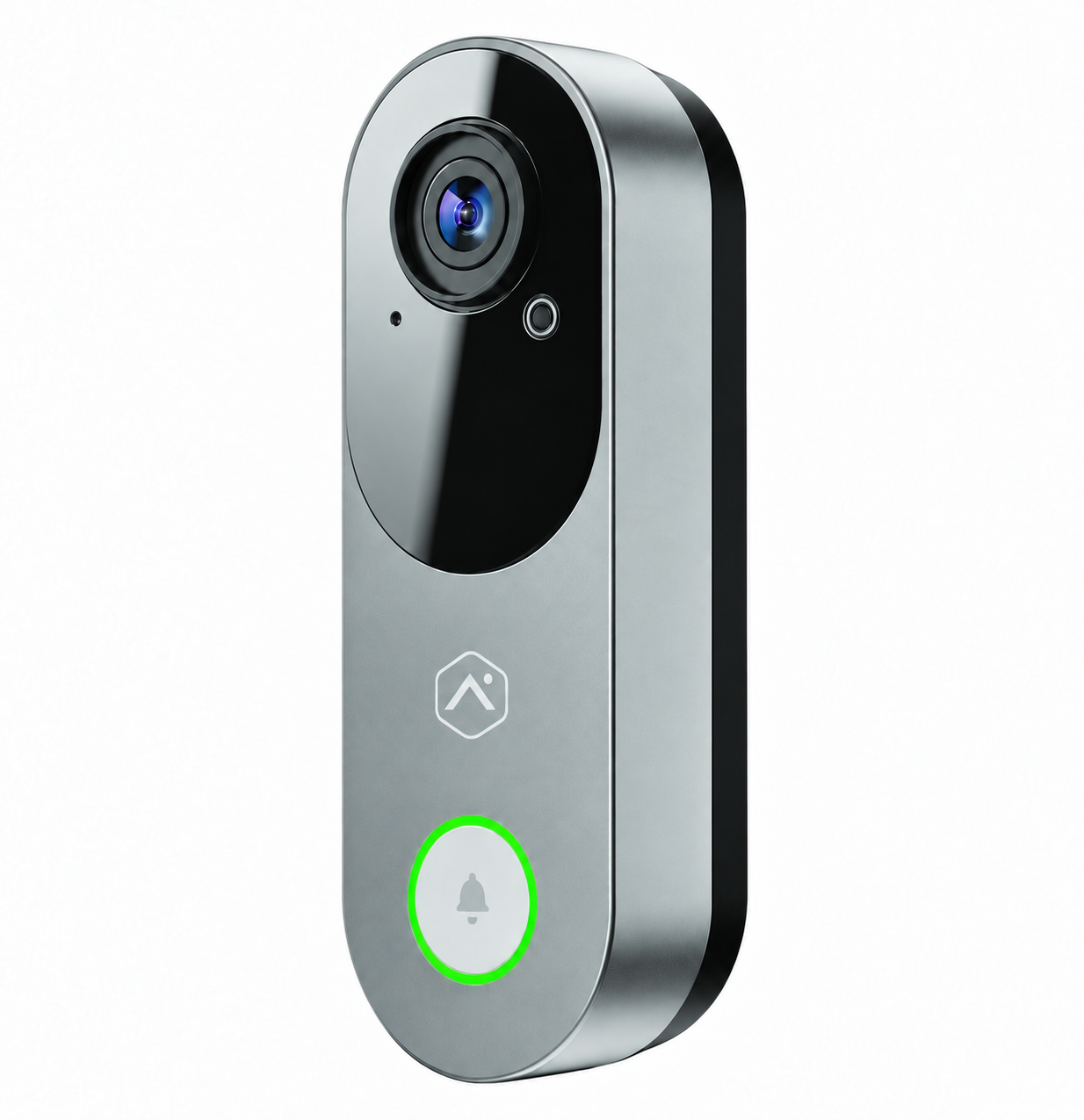

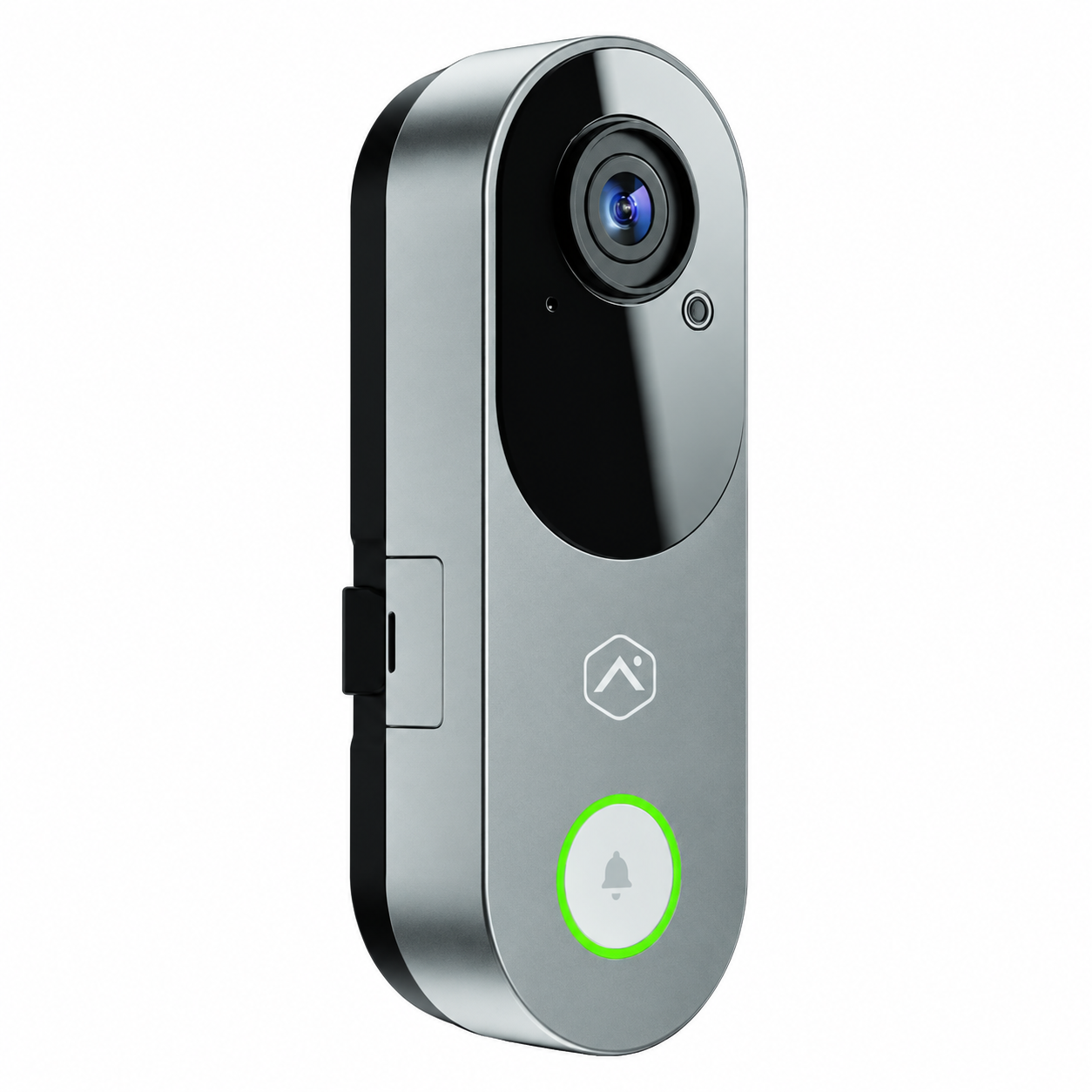

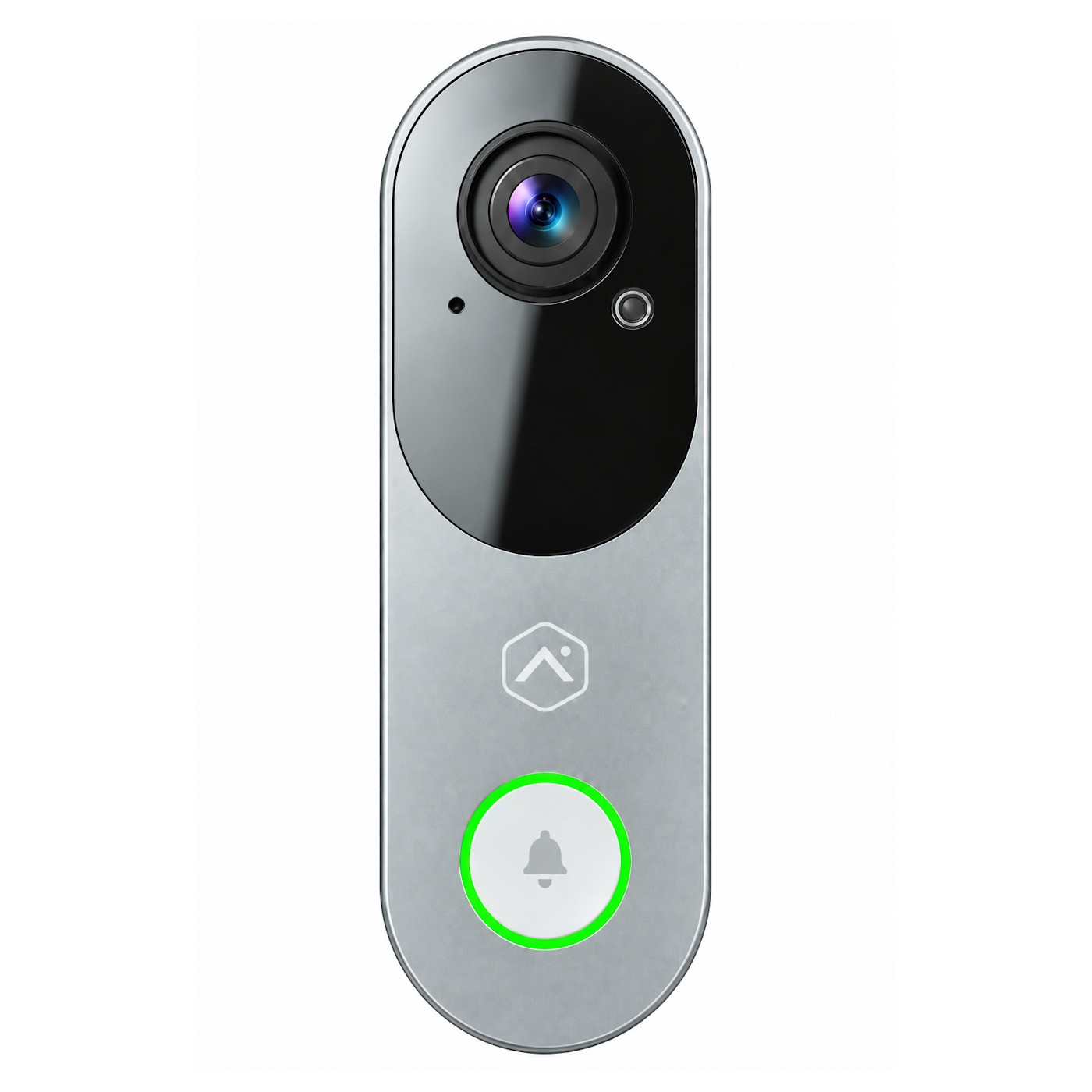

ADC-VDB775-S - Alarm.com Premium 4MP Wired Video Doorbell Camera (in Silver Finish)
Please Note: The Alarm.com ADC-VDB775-S premium 4MP wired video doorbell camera is coming soon.
Alarm.com ADC-VDB775-S Product Description:
The Alarm.com ADC-VDB775-S premium wired video doorbell camera, in elegant silver housing, delivers next-level awareness and protection at your front door. Featuring vivid 4MP video resolution and a 150° vertical and horizontal field of view, it captures every detail - ensuring packages, visitors, and activity are always in clear sight. In addition to the classic capabilities customers already love, such as Perimeter Guard® and Package Alerts, the VDB775-S introduces directional tripwires, along with vehicle and animal detection, enhancing its ability to filter and respond to meaningful events.
Installation has never been easier thanks to Bluetooth® enrollment, which streamlines setup and significantly reduces time on site. Once installed, the ADC-VDB775-S integrates seamlessly with Alarm.com's smart home and security platform, offering homeowners real-time awareness and proactive deterrence tools that extend the power of their security system.
Built for reliability in all conditions, this premium video doorbell supports a wide operating temperature range of -58° to 120°F (-50° to 50°C), making it suitable for diverse climates and challenging environments. Whether protecting against porch pirates, keeping tabs on visitors, or detecting vehicles approaching the property, the ADC-VDB775-S delivers superior awareness, convenience, and peace of mind in one sleek design.
Product Features:
- 4MP HDR Video Quality - Crisp, detailed footage for enhanced front door awareness.
- 150° Vertical & Horizontal Field of View - Expansive coverage for packages, visitors, and surroundings.
- Elegant Silver Finish - Aesthetically pleasing silver color finish that blends seamlessly with modern home exteriors.
- Perimeter Guard® - Visual and audible deterrence to discourage unwanted activity.
- Package Alerts - Smart notifications when deliveries are detected.
- Directional Tripwires - Detect motion crossing a set path for more accurate alerts.
- Vehicle & Animal Detection - Advanced analytics for smarter event filtering.
- Bluetooth® Enrollment - Crisp, detailed footage for enhanced front door awareness.
- Wide Operating Temperature Range - Reliable performance in all weather conditions.
- Seamless Alarm.com Integration - Works with the full Alarm.com smart home and security ecosystem.
- Wired Power Design - Continuous operation without the need for battery swaps.
Alarm.com ADC-VDB775-S Product Specifications:
- Dimensions (W x L x D): 1.81 x 5.26 x 1.34" (46 x 133.5 x 34 mm)
- Camera Type: Premium Wired Video Doorbell Camera
- Housing Color: Silver
- IR Range: Up to 15 feet (5 m)
- Low-Light Sensitivity: 0 lux with IR
- Image Sensor: 1/3.11" (4MP HDR CMOS sensor)
- Max Video Resolution: Up to 2048 x 2048 (4MP)
- Lens Field of View: 150° vertical x 150° horizontal
- Video Compression: H.264 / H.265
- Smart Video Analytics:
-Perimeter Guard® (visual + audible deterrence)
-Package Alerts
-Directional Tripwires
-Vehicle and Animal Detection - Audio: Two-Way Audio (built-in microphone and speaker)
- Wireless Connectivity: Wi-Fi (802.11 b/g/n/ac/ax, 2.4GHz / 5GHz), Bluetooth® for easy enrollment
- Power Requirements (AC Transformer): 16-24VAC, 10-40VA wired connection (16VAC, 10VA recommended)
- Power Requirements (DC Transformer): 18-24VDC, 12-30W
- Night Vision: IR night vision with spotlight support for low-light conditions
- Operating Temperature: -58°F to 120°F (-50°C to 50°C)
- Operating Humidity: <95% (non-condensing) RH
- Weather Resistance: Outdoor-rated, weatherproof housing (IP65 Ingress Protection)
- Mounting Options: Standard doorbell wiring with mounting plate and hardware
- Integration: Fully compatible with Alarm.com security and smart home platform
- Certifications: FCC, UL, and regional compliance
Alarm.com ADC-VDB775-S Product Documents:
• Data Sheet - Alarm.com Premium Wired Video Doorbell Camera (ADC-VDB775-S)
• Installation Guide - Alarm.com Wireless Video Doorbell (ADC-VDB775-S)
• LED Status Guide - Alarm.com Wireless Video Doorbell (ADC-VDB775-S)
Alarm.com ADC-VDB775-S LED Status Guide:
LED Pattern
- Off: Power Off
- Solid Green: Connected to Alarm.com
- Blinking Green: Local network connection
- Blinking Red: Power on, Camera booting
- Solid Red: No local or internet connection
- Blinking White: Wi-Fi Access Point mode (press and hold the reset button for 30-35 seconds)
- Blinking Blue: WPS mode (press and hold button for 35-40 seconds)
- Blinking Yellow: Power cycling (press and hold button for 40-45 seconds)
- Blinking Red and Green: Camera resetting to factory default (press and hold button for 45-50 seconds)
- Blinking Blue and Green: Firmware updating
