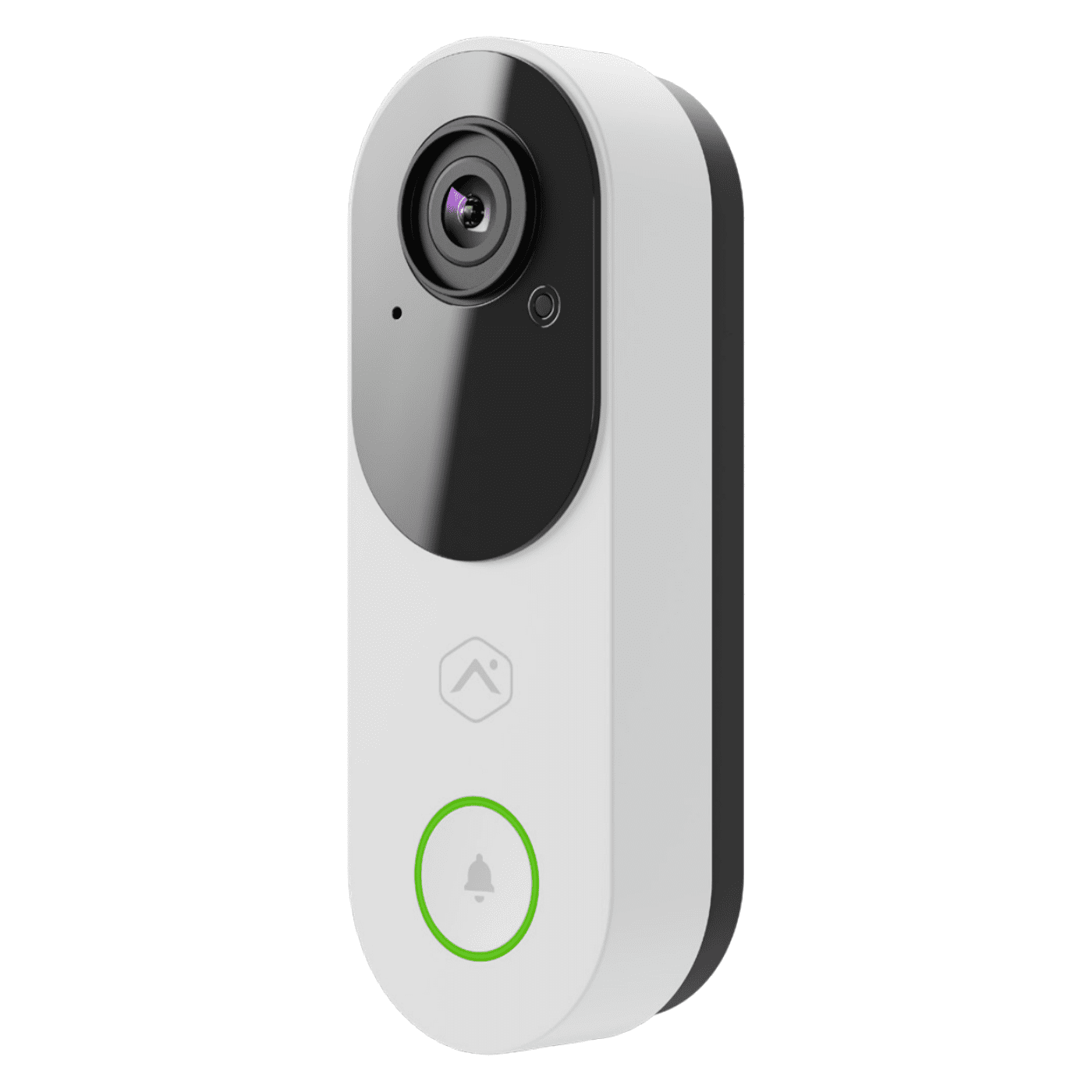

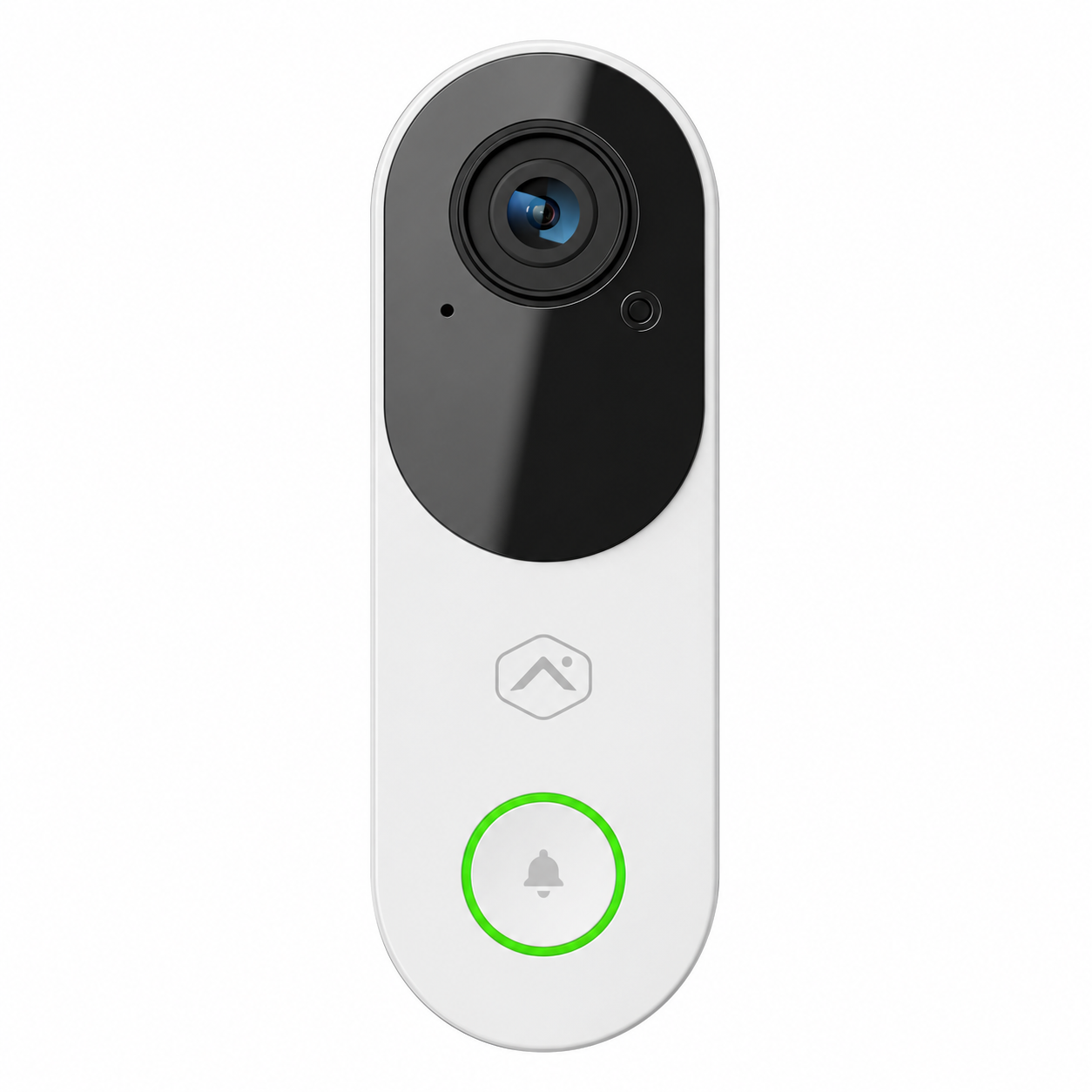

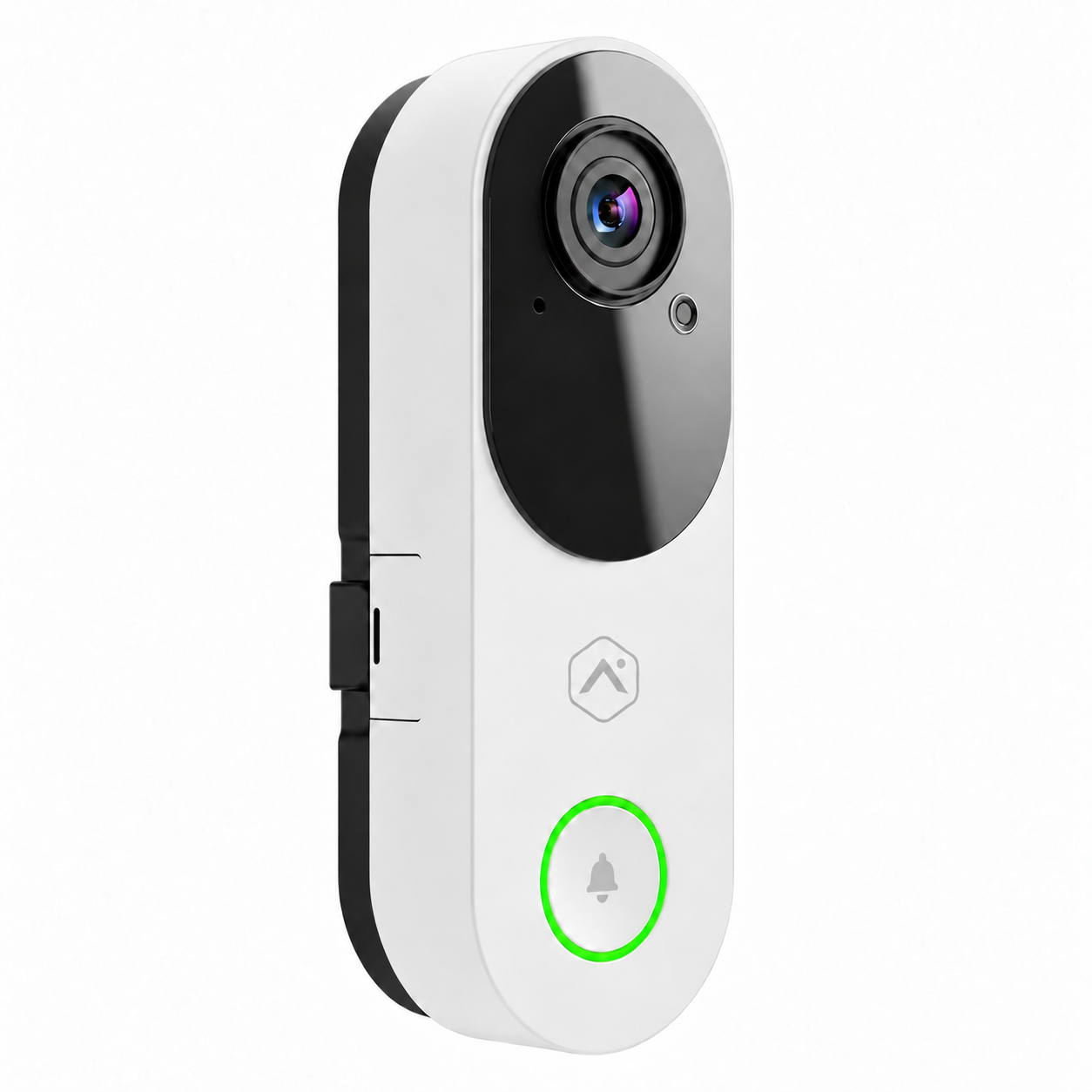

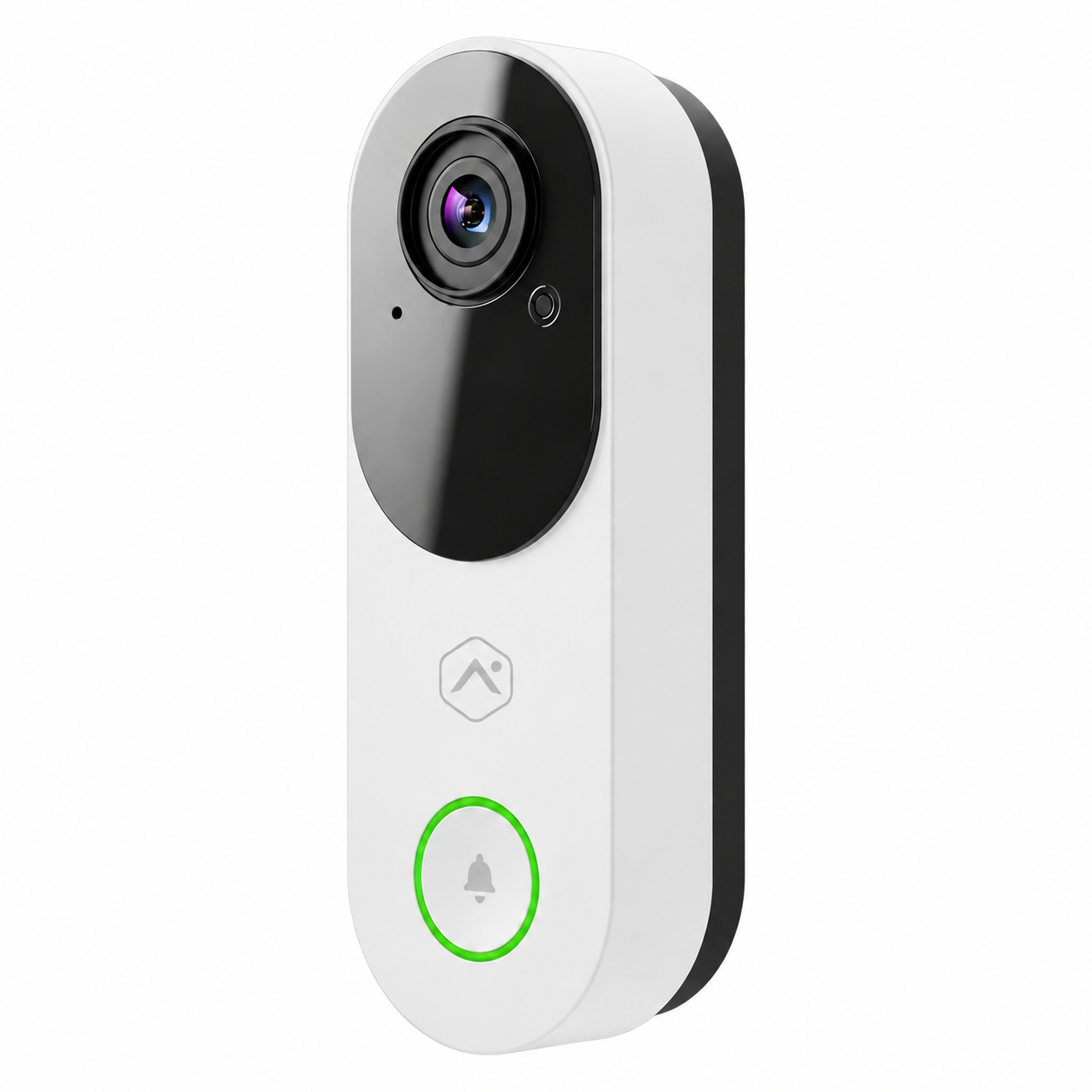

ADC-VDB775 - Alarm.com Premium 4MP Wired Video Doorbell Camera

ADC-VDB775 - Alarm.com Premium 4MP Wired Video Doorbell Camera
ADC-VDB775 - Alarm.com Premium 4MP Wired Video Doorbell Camera
Item# ADC-VDB775

THIS ITEM IS CURRENTLY OUT OF STOCK

Please fill out the form below if you want us to notify you as soon as we are restocked!

Please Note: The Alarm.com ADC-VDB775 premium wired video doorbell camera has not been released yet.

Alarm.com ADC-VDB775 Product Description:


The Alarm.com ADC-VDB775 premium wired video doorbell camera delivers next-level awareness and protection at your front door. Featuring vivid 4MP video resolution and a 150° vertical and horizontal field of view, it captures every detail - ensuring packages, visitors, and activity are always in clear sight. In addition to the classic capabilities customers already love, such as Perimeter Guard® and Package Alerts, the VDB775 introduces directional tripwires, along with vehicle and animal detection, enhancing its ability to filter and respond to meaningful events.

Installation has never been easier thanks to Bluetooth® enrollment, which streamlines setup and significantly reduces time on site. Once installed, the ADC-VDB775 integrates seamlessly with Alarm.com's smart home and security platform, offering homeowners real-time awareness and proactive deterrence tools that extend the power of their security system.

Built for reliability in all conditions, this premium video doorbell supports a wide operating temperature range of -58° to 120°F (-50° to 50°C), making it suitable for diverse climates and challenging environments. Whether protecting against porch pirates, keeping tabs on visitors, or detecting vehicles approaching the property, the ADC-VDB775 delivers superior awareness, convenience, and peace of mind in one sleek design.

Product Features:

  • 4MP HDR Video Quality - Crisp, detailed footage for enhanced front door awareness.
  • 150° Vertical & Horizontal Field of View - Expansive coverage for packages, visitors, and surroundings.
  • Perimeter Guard® - Visual and audible deterrence to discourage unwanted activity.
  • Package Alerts - Smart notifications when deliveries are detected.
  • Directional Tripwires - Detect motion crossing a set path for more accurate alerts.
  • Vehicle & Animal Detection - Advanced analytics for smarter event filtering.
  • Bluetooth® Enrollment - Crisp, detailed footage for enhanced front door awareness.
  • Wide Operating Temperature Range - Reliable performance in all weather conditions.
  • Seamless Alarm.com Integration - Works with the full Alarm.com smart home and security ecosystem.
  • Wired Power Design - Continuous operation without the need for battery swaps.

Alarm.com ADC-VDB775 Product Specifications:


  • Dimensions (W x L x D): 1.81 x 5.26 x 1.34" (46 x 133.5 x 34 mm)
  • Camera Type: Premium Wired Video Doorbell Camera
  • IR Range: Up to 15 feet (5 m)
  • Low-Light Sensitivity: 0 lux with IR
  • Image Sensor: 1/3.11" (4MP HDR CMOS sensor)
  • Max Video Resolution: Up to 2048 x 2048 (4MP)
  • Lens Field of View: 150° vertical x 150° horizontal
  • Video Compression: H.264 / H.265
  • Smart Video Analytics:
    -Perimeter Guard® (visual + audible deterrence)
    -Package Alerts
    -Directional Tripwires
    -Vehicle and Animal Detection
  • Audio: Two-Way Audio (built-in microphone and speaker)
  • Wireless Connectivity: Wi-Fi (802.11 b/g/n/ac/ax, 2.4GHz / 5GHz), Bluetooth® for easy enrollment
  • Power Requirements (AC Transformer): 16-24VAC, 10-40VA wired connection (16VAC, 10VA recommended)
  • Power Requirements (DC Transformer): 18-24VDC, 12-30W
  • Night Vision: IR night vision with spotlight support for low-light conditions
  • Operating Temperature: -58°F to 120°F (-50°C to 50°C)
  • Operating Humidity: <95% (non-condensing) RH
  • Weather Resistance: Outdoor-rated, weatherproof housing (IP65 Ingress Protection)
  • Mounting Options: Standard doorbell wiring with mounting plate and hardware
  • Integration: Fully compatible with Alarm.com security and smart home platform
  • Certifications: FCC, UL, and regional compliance

Alarm.com ADC-VDB775 LED Status Guide:


LED Pattern

  • Off: Power Off
  • Solid Green: Connected to Alarm.com
  • Blinking Green: Local network connection
  • Blinking Red: Power on, Camera booting
  • Solid Red: No local or internet connection
  • Blinking White: Wi-Fi Access Point mode (press and hold the reset button for 30-35 seconds)
  • Blinking Blue: WPS mode (press and hold button for 35-40 seconds)
  • Blinking Yellow: Power cycling (press and hold button for 40-45 seconds)
  • Blinking Red and Green: Camera resetting to factory default (press and hold button for 45-50 seconds)
  • Blinking Blue and Green: Firmware updating
