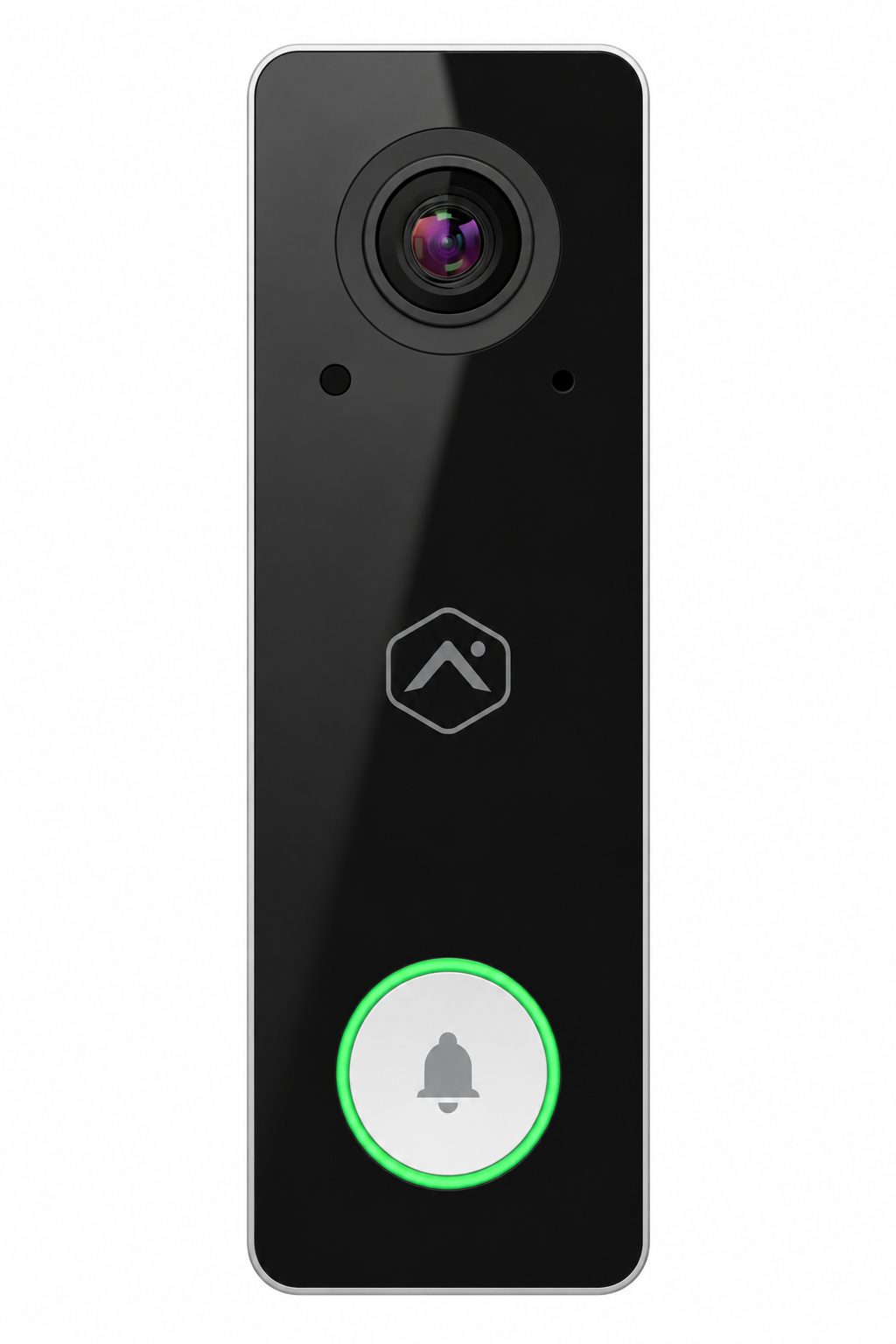

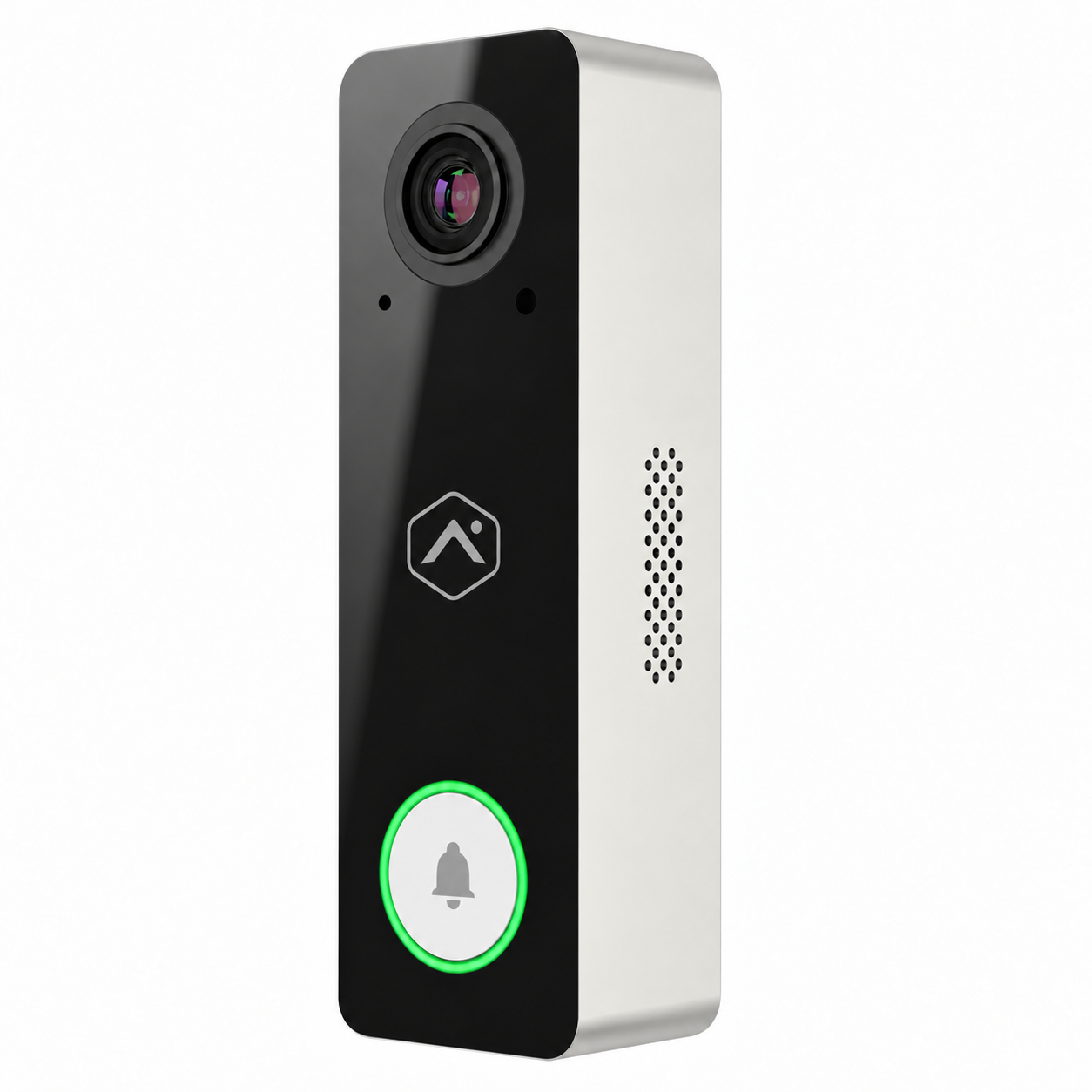

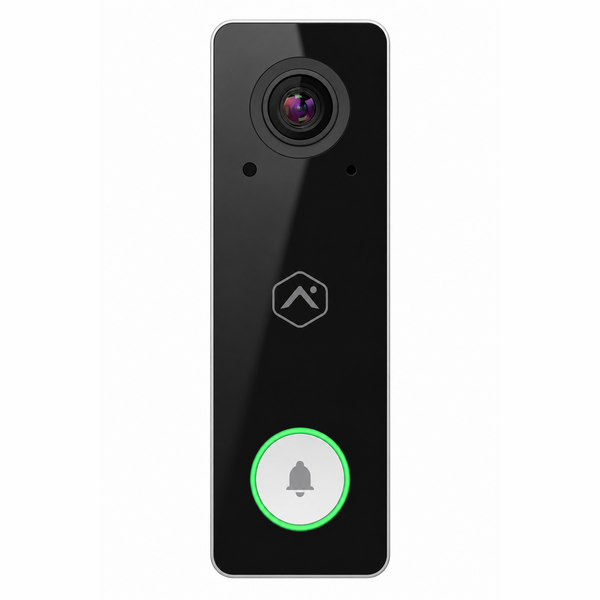

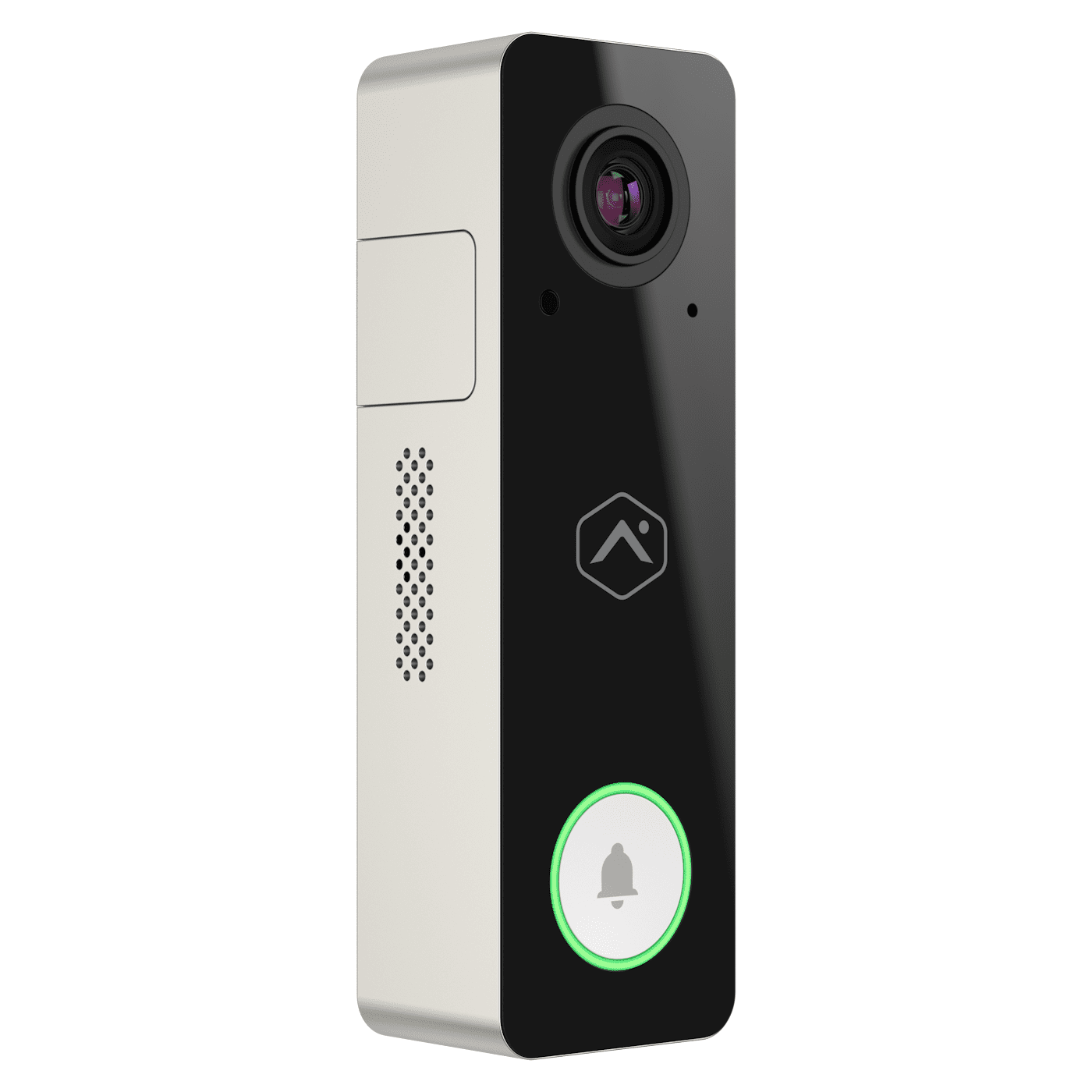

ADC-VDB750-S - Alarm.com Design Studio Series WiFi 2MP Video Doorbell Camera (in Silver Finish)
Alarm.com ADC-VDB750-S Product Description:
The Alarm.com ADC-VDB750-S is the latest addition to the Alarm.com family of video doorbell cameras in a silver finish. The ADC-VDB750 doorbell offers crystal clear 2MP picture and an expansive 165° horizontal and 145° vertical Field of View so customers can see and do more at the front door.
Alarm.com's powerful People Detection and crisp Two-Way Audio help reduce false notifications while bringing increased awareness and allowing users to communicate with visitors. Plus, a wide range of operating temperatures increase install flexibility making this a great choice in any environment.
Product Features:
- Two-Way Audio
- Expansive 165° horizontal and 145° vertical Field of View ensures customers get a full picture of what's happening at their front door
- Video Analytics with rapid People Detection for faster, more relevant alerts and fewer false notifications
- Full HD resolution, High Dynamic Range (HDR), and infrared night vision
- Compatible with the Alarm.com Smart Chime (ADC-W115C)
- 2MP live video and saved clip viewing via the app and customer website
- Dual antenna (2x2 MIMO) WiFi for improved range (2.4 GHz and 5 GHz)
Alarm.com ADC-VDB750-S Product Documents:
Data Sheets
• Alarm.com Video Doorbell (ADC-VDB750-S) - Data SheetInstallation Guides
• Alarm.com Video Doorbell (ADC-VDB750-S) - Installation Guide• Wire the ADC-VDB750-S without a chime
• Wire the ADC-VDB750-S to a chime
User Guides
• Adjust saved video resolution for the ADC-VDB750-S• Adjust the call volume for the ADC-VDB750-S
• Adjust the chime type for the ADC-VDB750-S
• Create a Video Analytics notification for the ADC-VDB750-S
• Factory reset an ADC-VDB750-S to its default settings
• Interact with visitors and devices using the ADC-VDB750-S call screen
• Power module for the ADC-VDB750-S - User Guide
• Reconnect an ADC-VDB750-S if the wireless network or router changes
• Verify if the ADC-VDB750-S is receiving enough power
How-to-Troubleshooting Guides
• The ADC-VDB750-S detects too much or too little motion• The Alarm.com Video Doorbell (ADC-VDB750-S) is constantly buzzing or humming
• The indoor chime does not make sound when a guest rings the ADC-VDB750-S
• Unable to hear audio during an ADC-VDB750-S doorbell call
Frequently Asked Questions
• Can the ADC-VDB750-S be used without a chime?• Can the ADC-VDB750-S be used without a Power Module?
• Can the ADC-VDB750-S send notifications to a security panel?
• Can the ADC-VDB750-S use Video Motion Detection and Video Analytics?
• Can the micro USB port power the ADC-VDB750-S?
• Can users change the LED color of the button on the ADC-VDB750-S
• Do saved clips from the ADC-VDB750-S contain audio?
• How can users view the ADC-VDB750-S live video stream?
• How does the Video Doorbell Mounting Wall Plate work?
• How does the Video Doorbell Wall Power Supply Kit work?
• Is the ADC-VDB750-S compatible with the ADC-SG130 Smart Gateway?
• Is there a recommended Wi-Fi extender for the ADC-VDB750-S?
• What are the network requirements for the ADC-VDB750-S?
• What are the power requirements for the ADC-VDB750-S?
• What do the LEDs on the ADC-VDB750-S mean?
• What network connection methods are available for the ADC-VDB750-S?
• What types of chimes are compatible with the ADC-VDB750-S?
• Where is the MAC address located on the ADC-VDB750-S?
• Why is motion for the ADC-VDB750-S unavailable on the Notifications page?
Alarm.com ADC-VDB750-S Product Specifications:
- Dimensions (W x L x D): 1.5 x 4.81 x 1.18" assembled with back plate (38 x 122 x 30 mm)
- Color: Silver
- Recording compression: H.264
- Ingress protection: IP65
- Max resolution: 1440 x 1440
- Image sensor: 1/2.4", 2.36 MP, HDR
- Lens (angle of view): 165° horizontal, 145° vertical
- Low-light sensitivity: 0 lux with IR
- IR range: Up to 15 feet (5 meters)
- Image adjustments: Flip, brightness, contrast, saturation, sharpness, exposure
- Wireless connectivity: 802.11 b/g/n/ac, 2.4 & 5 GHz
- Operating temperature: -58° - 122° F (-50°C - 50°C)
- Operating humidity: Up to 95% (noncondensing) RH
- Activity Detection: Advanced Video Analytics for People Detection
- Audio: Two-Way Audio (Full Duplex)
- AC transformer: 16-24 VAC, 10-40VA (16VAC, 10VA recommended)
- DC transformer: 15-24 VDC, 6-20W
Alarm.com ADC-VDB750-S Status LED Light Guide:
LED Patterns:
- Off: Power Off
- Blinking yellow: Camera power cycling (press and hold button for 40-45 seconds)
- Solid red: No local or Internet connection
- Blinking red: Power on, camera booting
- Alternating red and green: Camera resetting to factory default (press and hold button for 45-50 seconds)
- Solid green: Connected to Alarm.com
- Blinking green: Local network connection
- Blinking blue: WPS mode (press and hold button for 30-35 seconds)
- Blinking white: WiFi Access Point mode (press and hold button for 35-40 seconds)
- Alternating blue and green: Firmware update
Alarm.com ADC-VDB750-S Optional Accessories:
- Wired compatible mechanical or digital chime
- ADC-VDB750 Power Module (sold separately as ADC-VDBA-PM-750; only required if wired to a digital chime)
- ADC-VDB750 Backplate Adapter (sold separately as ADC-VDBA-750-BPA; can be used if replacing a Slim Line Doorbell Camera and it is preferred to not reconnect the wiring)
- ADC-VDB750 Wedge Mount Kit (sold separately as ADC-VDBA-750-WMK; can be used to optimize the captured field of view)
Alarm.com ADC-VDB750-S Included Accessories:
- ADC-VDB750-S video doorbell
- ADC-VDB750 wallplate (with pre-assembled set screw and wire terminal screws)
- Wall anchors (x2) & ST3.5 x 22mm screws (x2)
- Installation card with scannable QR code
- A resistor for mechanical chime installations, if needed
