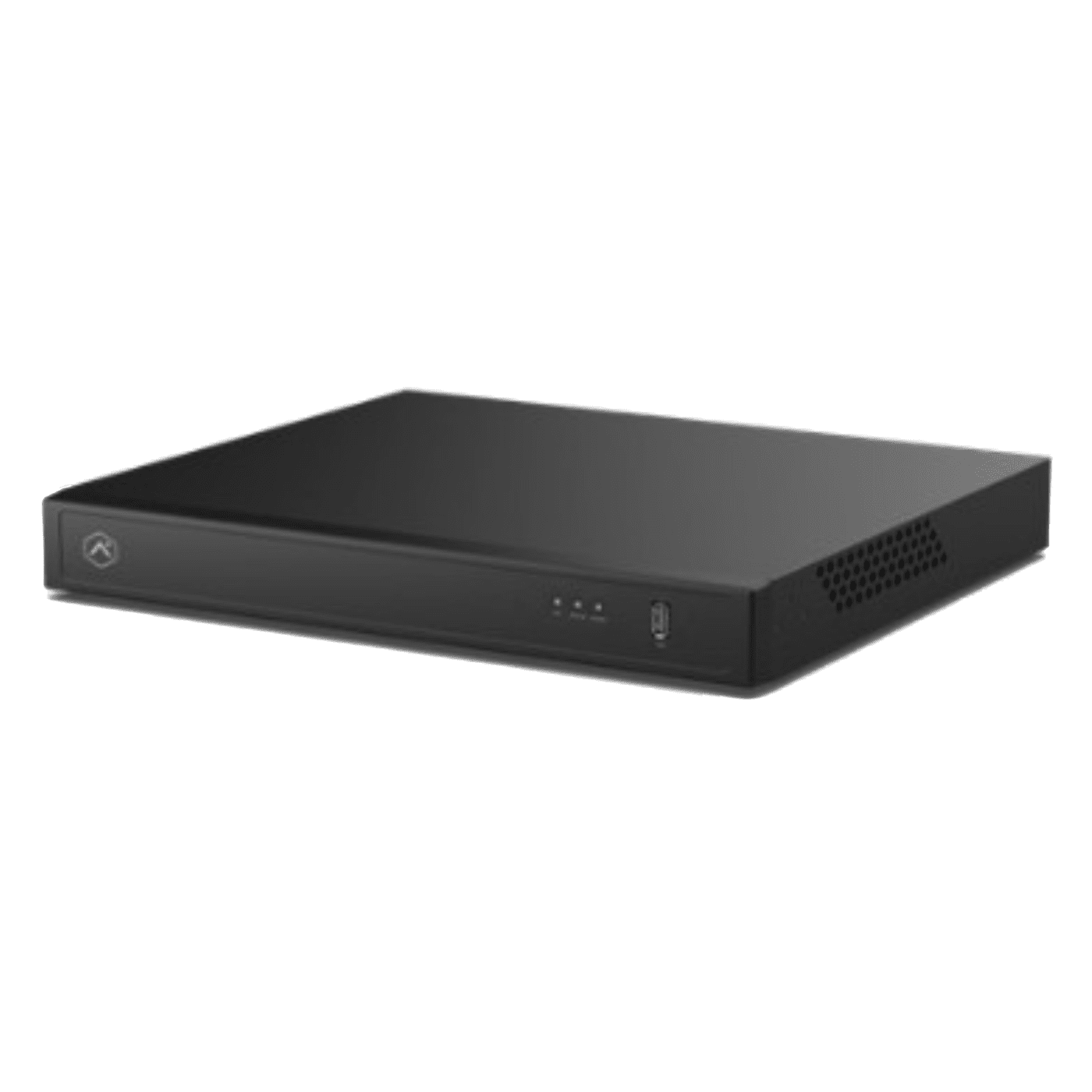

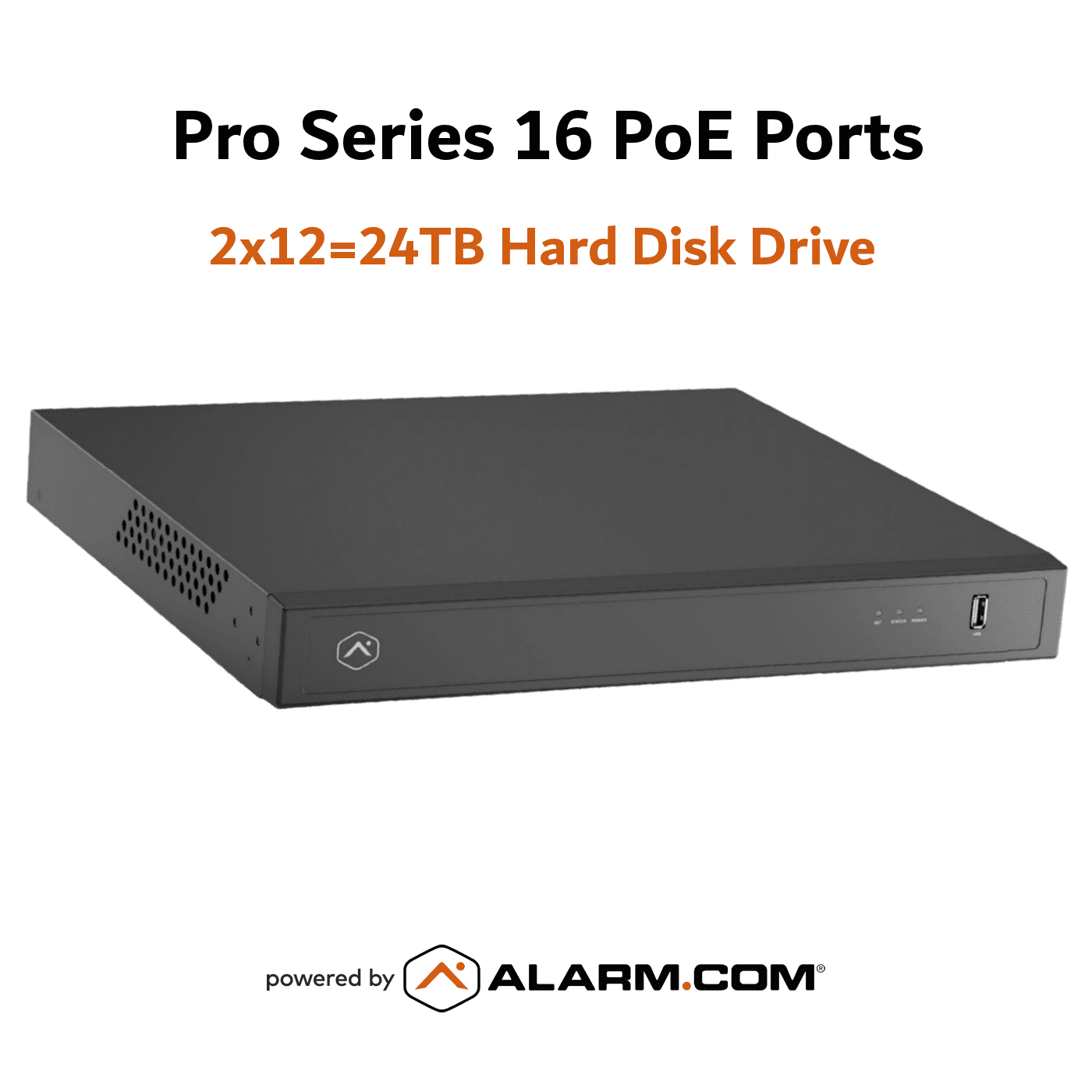

ADC-CSVR2116P-2x12TB - Alarm.com Pro Series 16 Built-In PoE Ports Commercial Business Stream Video Recorder (2x12=24TB Hard Disk Drive)
Alarm.com ADC-CSVR2116P-2x12TB Product Description:
The ADC-CSVR2116P-2x12TB Alarm.com Pro Series Commercial Stream Video Recorder is a powerful cloud-managed video storage solution engineered for businesses that require dependable 24/7 continuous video surveillance. Featuring 16 built-in Power over Ethernet (PoE) ports and two 12TB hard drives (2x12TB), this commercial SVR simplifies installation by providing both power and network connectivity to compatible Alarm.com PoE security cameras through a single device. Designed for retail stores, office buildings, restaurants, warehouses, schools, healthcare facilities, and other commercial environments, the ADC-CSVR2116P delivers reliable local recording while seamlessly integrating with the Alarm.com for Business platform.
Alarm.com Commercial Video is a powerful, easy-to-use video surveillance solution that integrates directly with the Alarm.com for Business platform. As part of this intelligent ecosystem, recorded video is automatically tagged with important business events such as door access activity, alarm activations, and other system events. This event-based tagging allows business owners and managers to quickly locate the exact footage they need using the Alarm.com mobile app or secure web portal, eliminating the need to manually search through hours of recorded video. Whether you're on-site or away from your business, critical video is always accessible from virtually anywhere.
Built to support demanding commercial surveillance applications, the ADC-CSVR2116P can continuously record up to 16 camera streams with an aggregate recording throughput of 70 Mbps, ensuring smooth and reliable performance across multiple cameras. Its integrated 16-port PoE switch reduces installation time, minimizes cabling requirements, and provides centralized power for compatible Alarm.com Pro Series PoE cameras. As a cloud-managed solution, the recorder also benefits from remote system management, health monitoring, firmware updates, and seamless integration with Alarm.com's advanced video analytics and commercial security services.
Whether you're securing a single commercial location or managing multiple business properties, the Alarm.com ADC-CSVR2116P-2x12TB Pro Series Commercial Stream Video Recorder offers the ideal combination of continuous local recording, intelligent event-based video search, cloud-managed convenience, and enterprise-grade reliability. With powerful storage capacity, integrated PoE connectivity, and seamless Alarm.com integration, it provides businesses with a scalable, professional video surveillance solution designed to protect what matters most.
Product Features:
- Simplified networking with 16 dedicated camera PoE ports
- Local storage on two hard drives (2x12TB=24TB total hard drive storage)
- CSVR units are shipped with WD Purple hard drives, SATA 6 Gb/s (WD64PURZ)
- Rack-compatible (1U) industrial design
- Outputs for up to one 4K monitor and one Full HD monitor
- USB 3.0 outputs for fast video clip export
Please Note:The Alarm.com Pro Series CSVR is compliant with Section 889 of the NDAA and is not produced by any entity identified on the FCC's Covered List.
Alarm.com ADC-CSVR2116P-2x12TB Product Specifications:
- Dimensions (W x D x H): 14.4 x 12.6 x 1.7" (36.6 x 32.0 x 4.6 cm)
- Video input: 16 channels, 70 Mbps total
- Storage: 2x12TB=24TB total hard drives
- Local Display Capabilities: Live View, Playback, Clip Export, Archive Export
- Local Display Output: 1x HDMI, 1x VGA (Full HD)
- Local Clip Export: 1x USB 3.0 (front), 2x USB 2.0 (rear)
- Ethernet Connectivity: 1x Client RJ45 10/100/1000 Mbps
1x Camera RJ45 10/100/1000 Mbps
16x Camera PoE 802.3af RJ45 10/100 Mbps - Operating Temperature: 32°F - 104°F (0°C - 40°C)
- PoE Power Budget: 200W
- Max power consumption: 280W
- Max weight: 8.48 lbs (4.0 kg)
- Compliance: FCC Class A, IC, CE, UL Listed, NDAA
- Power Requirements: Standard electrical outlet
- Network Requirements: Ethernet connection to broadband Internet
Alarm.com ADC-CSVR2116P-2x12TB Product Compatibility:
Recommended Alarm.com PoE cameras
- ADC-VC7398PA
- ADC-VC8498PA
- ADC-VC8498P
- ADC-VC8295P
- ADC-VC725
- ADC-VC726
- ADC-VC736
- ADC-VC825
- ADC-VC826
- ADC-VC836
- ADC-VC727P
- ADC-VC729P
- ADC-VC730P
- ADC-VC827P
- ADC-VC728PF
- ADC-VC838PF
- ADC-VC847PF
- ADC-VDB755P
Other supported cameras
- ADC-VS123/NV432-V2 HD Video Server
- Third-party PoE cameras (ONVIF S & VAPIX)
Indoor cameras connected via Ethernet:
- ADC-V521IR
- ADC-V522IR
- ADC-V523/523X
- ADC-V530
- ADC-V622
Indoor/Outdoor cameras connected via Wi-Fi:
- ADC-V515
- ADC-V516
- ADC-V521IR
- ADC-V522IR
- ADC-V523/523X
- ADC-V530
- ADC-V721W
- ADC-V722W
- ADC-V723/723X
- ADC-V724/724X
- ADC-V729/V729AC
- ADC-V730
Note: For best results, please connect the Wi-Fi cameras to the Smart Gateway (ADC-SG130) downstream from the SVR, or a high-performance Wi-Fi Access point upstream from the CSVR.
