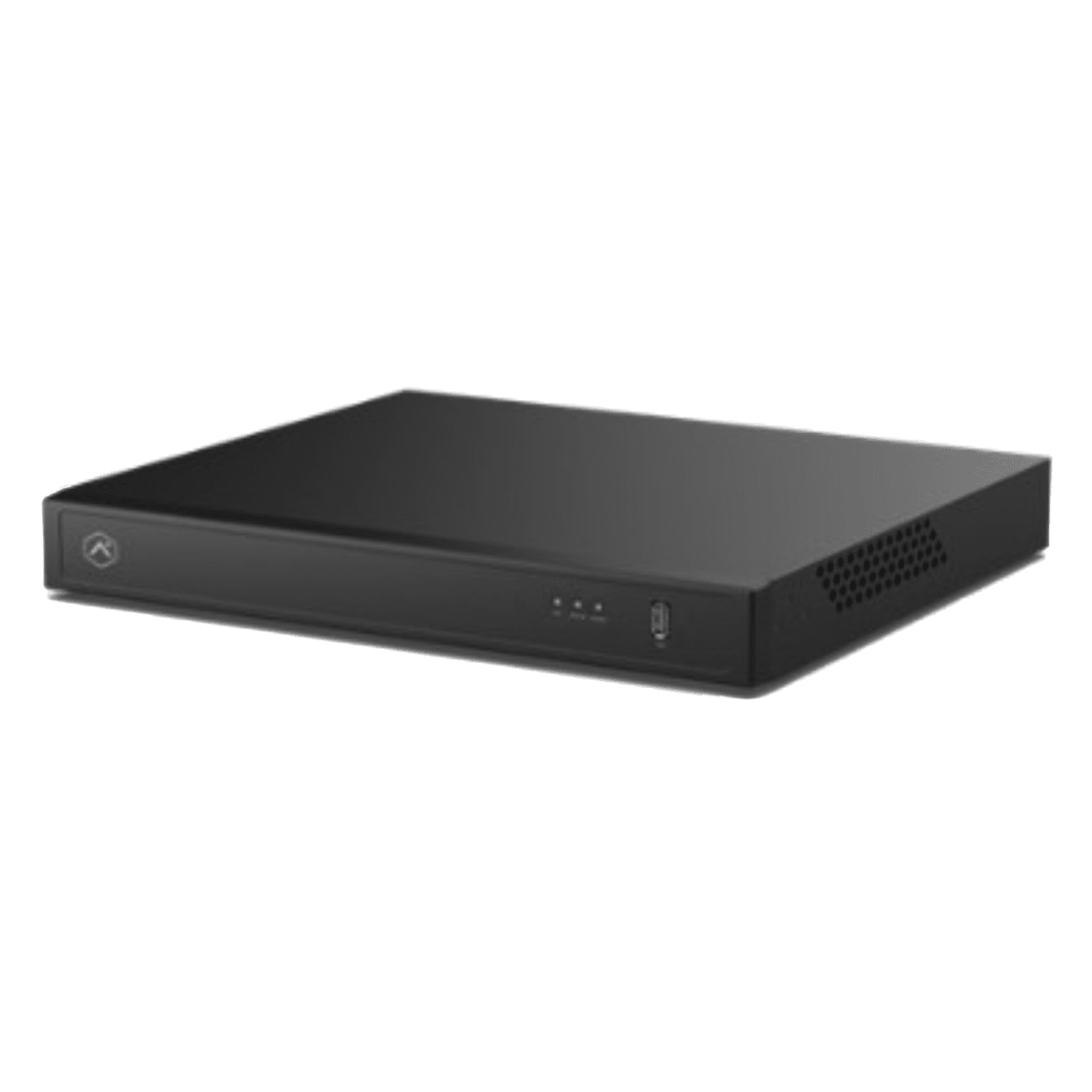

ADC-CSVR2108P-1x6TB - Alarm.com Pro Series 8 Built-In PoE Ports Commercial Business Stream Video Recorder (1x6=6TB Hard Disk Drive)
Alarm.com ADC-CSVR2108P-1x6TB Product Description:
The ADC-CSVR2108P-1x6TB Alarm.com Pro Series Commercial Stream Video Recorder is a professional-grade, cloud-managed video storage solution designed for businesses that require reliable 24/7 continuous video recording. Equipped with eight built-in Power over Ethernet (PoE) ports and a 6TB hard disk drive (1x6TB), this commercial SVR simplifies installation by powering and connecting compatible Alarm.com PoE security cameras through a single device. Ideal for offices, retail stores, warehouses, restaurants, schools, healthcare facilities, and other commercial properties, the ADC-CSVR2108P provides dependable local video storage while seamlessly integrating with the Alarm.com for Business platform.
Alarm.com Commercial Video is a powerful, easy-to-use video surveillance solution that works as part of the Alarm.com for Business ecosystem. Recorded video is automatically tagged with important business events such as alarm activations, door access events, and other system activities, allowing users to quickly locate the exact footage they need without manually searching through hours of recordings. Whether using the Alarm.com mobile app or secure web portal, business owners and managers can instantly jump to event-related video from virtually anywhere with an internet connection.
Designed for demanding commercial applications, the ADC-CSVR2108P supports continuous recording of up to 16 camera streams with an aggregate recording throughput of 70 Mbps, delivering dependable performance for multi-camera installations. The built-in PoE switch reduces installation costs and cable clutter while providing centralized power and network connectivity for compatible Alarm.com Pro Series PoE cameras. As a cloud-managed solution, users benefit from remote health monitoring, simplified management, and seamless integration with Alarm.com's intelligent video analytics and commercial security platform.
Whether you're protecting a small business or a larger commercial facility, the Alarm.com ADC-CSVR2108P-1x6TB Commercial Stream Video Recorder offers the ideal combination of local video storage, cloud management, intelligent event-based video search, and enterprise-grade reliability. It provides business owners with the confidence of continuous recording while making it faster and easier to review critical security events whenever and wherever they occur.
Product Features:
- Simplified networking with 8 dedicated camera PoE ports
- Local storage on one hard drive (1x6TB=6TB total hard drive storage)
- CSVR units are shipped with WD Purple hard drives, SATA 6 Gb/s (WD64PURZ)
- Rack-compatible (1U) industrial design
- Outputs for up to one 4K monitor and one Full HD monitor
- USB outputs for fast video clip export
Please Note:The Alarm.com Pro Series CSVR is compliant with Section 889 of the NDAA and is not produced by any entity identified on the FCC's Covered List.
Alarm.com ADC-CSVR2108P-1x6TB Product Specifications:
- Dimensions (W x D x H): 14.4 x 12.6 x 1.7" (36.6 x 32.0 x 4.6 cm)
- Video input: 16 channels, 70 Mbps total
- Storage: 1x6TB=6TB total hard drive
- Local Display Capabilities: Live View, Playback, Clip Export, Archive Export
- Local Display Output: 1x HDMI, 1x VGA (Full HD)
- Local Clip Export: 1x USB 3.0 (front), 2x USB 2.0 (rear)
- Ethernet Connectivity: 1x Client RJ45 10/100/1000 Mbps
1x Camera RJ45 10/100/1000 Mbps
8x Camera PoE 802.3af RJ45 10/100 Mbps - Operating Temperature: 32°F - 104°F (0°C - 40°C)
- PoE Power Budget: 120W
- Max power consumption: 190W
- Max weight: 8.4 lbs (3.8 kg)
- Compliance: FCC Class A, IC, CE, UL Listed, NDAA
- Power Requirements: Standard electrical outlet
- Network Requirements: Ethernet connection to broadband Internet
Alarm.com ADC-CSVR2108P-1x6TB Product Compatibility:
Recommended Alarm.com PoE cameras
- ADC-VC7398PA
- ADC-VC8498PA
- ADC-VC8498P
- ADC-VC8295P
- ADC-VC725
- ADC-VC726
- ADC-VC736
- ADC-VC825
- ADC-VC826
- ADC-VC836
- ADC-VC727P
- ADC-VC729P
- ADC-VC730P
- ADC-VC827P
- ADC-VC728PF
- ADC-VC838PF
- ADC-VC847PF
- ADC-VDB755P
Other supported cameras
- ADC-VS123/NV432-V2 HD Video Server
- Third-party PoE cameras (ONVIF S & VAPIX)
Indoor cameras connected via Ethernet:
- ADC-V521IR
- ADC-V522IR
- ADC-V523/523X
- ADC-V530
- ADC-V622
Indoor/Outdoor cameras connected via Wi-Fi:
- ADC-V515
- ADC-V516
- ADC-V521IR
- ADC-V522IR
- ADC-V523/523X
- ADC-V530
- ADC-V721W
- ADC-V722W
- ADC-V723/723X
- ADC-V724/724X
- ADC-V729/V729AC
- ADC-V730
Note: For best results, please connect the Wi-Fi cameras to the Smart Gateway (ADC-SG130) downstream from the SVR, or a high-performance Wi-Fi Access point upstream from the CSVR.
