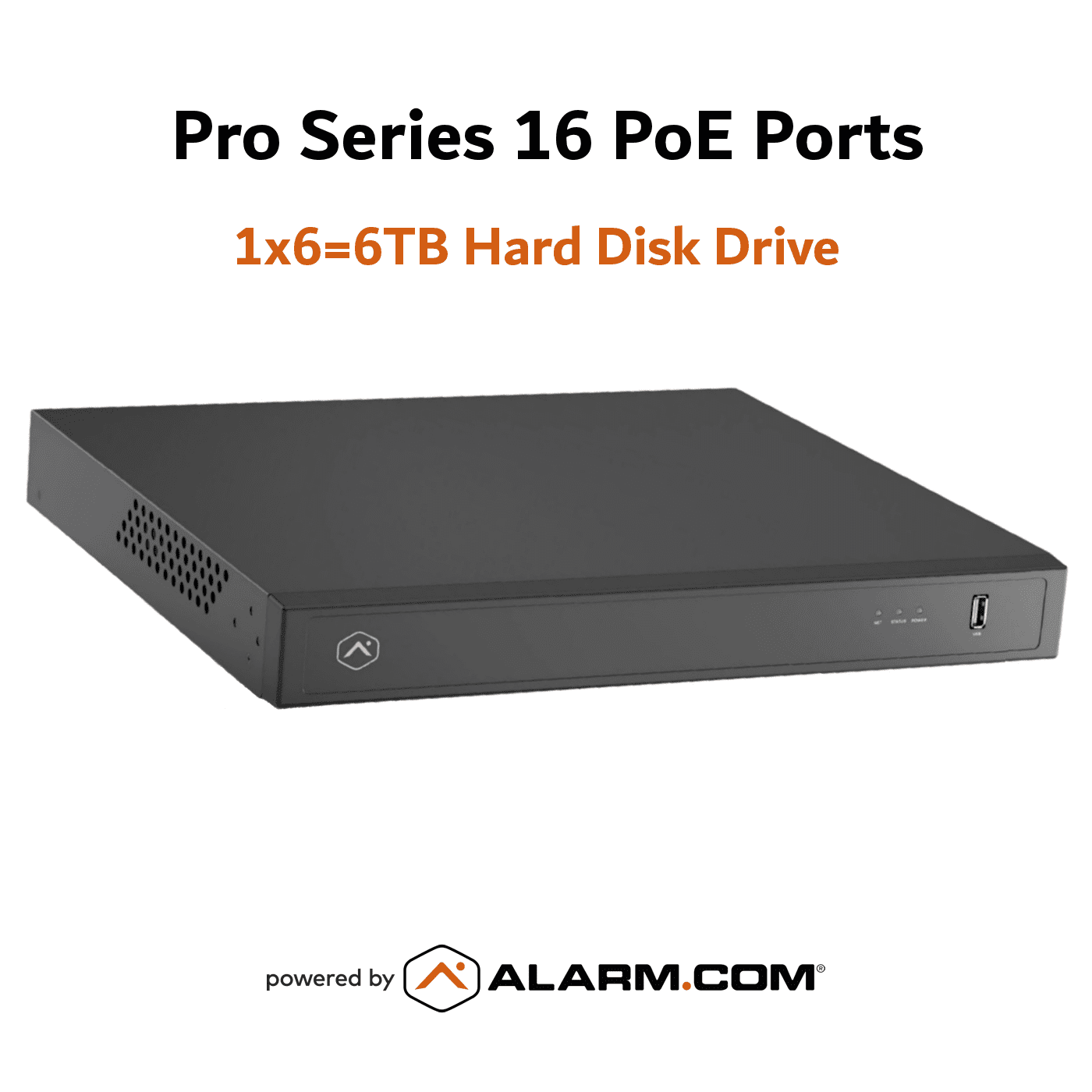

ADC-CSVR2016P-1X6TB - Alarm.com Pro Series 16-Channel PoE Commercial Business Stream Video Recorder (1x6=6TB Total Hard Drive)

ADC-CSVR2016P-1X6TB - Alarm.com Pro Series 16-Channel PoE Commercial Business Stream Video Recorder (1x6=
ADC-CSVR2016P-1X6TB - Alarm.com Pro Series 16-Channel PoE Commercial Business Stream Video Recorder (1x6=
Item# ADC-CSVR2016P-1X6TB
List Price: $1,689.56
Your Price: $1,126.38
Availability: In Stock
QTY:

Please Note: The Alarm.com ADC-CSVR2016P-1X6TB requires an Alarm.com customer account with a service package that supports the Pro Series CSVR.

Alarm.com ADC-CSVR2016P-1X6TB Product Description:


The Alarm.com ADC-CSVR2016P-1X6TB is a ProSeries 16-channel PoE commercial stream video recorder with 1x6TB=6TB terabytes hard drive storage that provides up to 16-channels of video input. The Alarm.com ADC-CSVR2016P-1X6TB Commercial Video is a powerful, easy-to-use solution for commercial properties that integrates with the Alarm.com for Business platform.

As part of the platform, recorded video is automatically tagged with important events, like a door being accessed or an alarm activation. This allows you to quickly jump to footage of the event using the Alarm.com mobile app or website anytime, anywhere.

The CSVR2016P Pro Series Commercial SVR is a cloud-managed storage solution for 24/7 local video recording. Continuously record up to 16 camera streams at up to 4MP resolution (2688 x 1520) when using Alarm.com Pro Series cameras. The CSVR2016P offers a built-in 16-port PoE switch to power and connect Alarm.com PoE cameras.

Product Features:

  • Simplified networking with dedicated camera PoE ports
  • Local storage on one hard drive (1x6TB=6TB total hard drive storage)
  • Rack-compatible (1U) industrial design
  • Outputs for up to 2 4K monitors
  • USB 3.0 outputs for fast video clip export

Alarm.com ADC-CSVR2016P-1X6TB Product Documents:


Data Sheet - Alarm.com Commercial-Grade Stream Video Recorder (ADC-CSVR2016P-1X6TB)
Hard Drive Installation Guide - Alarm.com Commercial-Grade Stream Video Recorder (ADC-CSVR2016P-1X6TB)
Associate a Video Device - Alarm.com Commercial-Grade Stream Video Recorder (ADC-CSVR2016P-1X6TB)
Configure the Local Display Password - Alarm.com Commercial-Grade Stream Video Recorder (ADC-CSVR2016P-1X6TB)
Export Video Using Local Interface - Alarm.com Commercial-Grade Stream Video Recorder (ADC-CSVR2016P-1X6TB)
Factory Reset to Default Settings - Alarm.com Commercial-Grade Stream Video Recorder (ADC-CSVR2016P-1X6TB)
Play Back Video Locally to a TV Screen - Alarm.com Commercial-Grade Stream Video Recorder (ADC-CSVR2016P-1X6TB)
What LED's Mean - Alarm.com Commercial-Grade Stream Video Recorder (ADC-CSVR2016P-1X6TB)

Alarm.com ADC-CSVR2016P-1X6TB Product Specifications:


  • Dimensions (W x D x H): 14.4 x 12.5 x 1.9" (36.6 x 31.6 x 4.8 cm)
  • Recording Channels: Up to 16 cameras
  • Storage: 1x6TB=6TB total hard drive
  • Local Display Capabilities: Live View, Playback, Clip Export, Archive Export
  • Local Display Output: 2x HD Out, up to 3840 x 2160
  • Local Clip Export: 1x USB 3.0 (front), 2x USB 3.0 (rear)
  • Ethernet Connectivity: 1x Client RJ45 10/100/1000 Mbps, 8x Camera PoE 802.3af RJ45 10/100 Mbps
  • PoE Power Budget: 120 W
  • Max Power Consumption: 200 W
  • Max Weight: 8.7 lbs (3.9 kg)
  • Compliance: FCC Class A, IC, CE, UL Listed
  • Power Requirements: Standard electrical outlet
  • Network Requirements: Ethernet connection to broadband Internet

Alarm.com ADC-CSVR2016P-1X6TB Product Compatibility:


  • ADC-VC827P
  • ADC-VC847PF
  • ADC-VC728PF
  • ADC-VC838PF
  • ADC-VC726
  • ADC-VC736
  • ADC-VC826
  • ADC-VC836
  • ADC-V523 (via ethernet)

Alarm.com ADC-CSVR2016P-1X6TB Product Includes:


  • AC power cord
  • Ethernet cable
  • Rack mount ears
