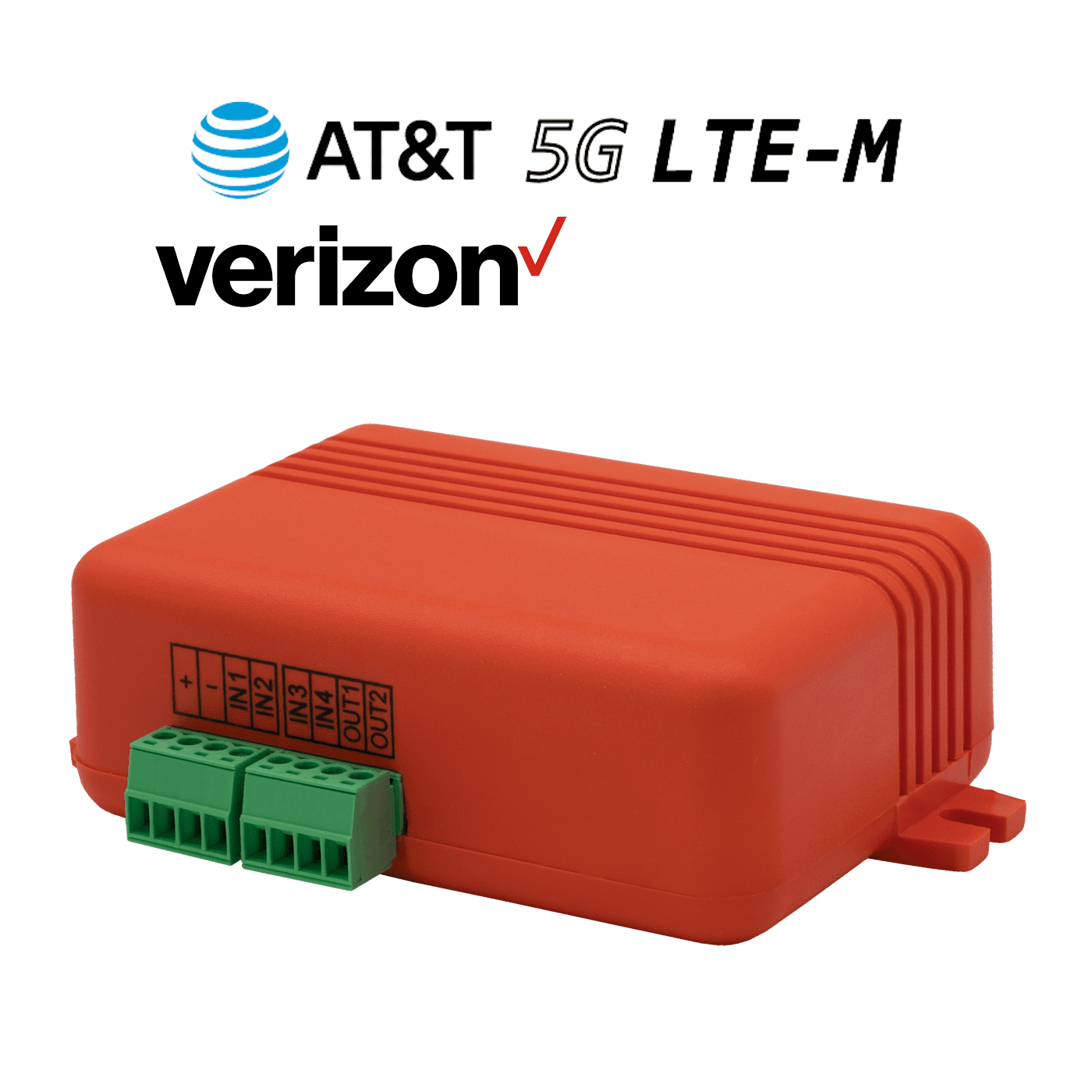

5500M - Uplink Universal Primary/Redundant Dual SIM Cellular 5G AT&T/Verizon LTE-M Alarm Communicator (Used for Industrial Monitoring)

Description
Specifications
Applications

Uplink 5500M Product Description:

The Uplink 5500M is a universal 5G-ready, dual SIM, primary or redundant cellular industrial alarm communicator. The 5500M module is designed as a summary event communicator that works on both Verizon and AT&T cellular LTE-M networks.

The 5500M easily adapts to non-security applications for remote monitoring of just about anything such as; agriculture, generator power, sewer lift stations...etc. It comes pre-activated for quick and easy installation. Device management and configuration is done via Uplink Dealers Portal, Installer app, or a live operator.

The 5500M includes the latest LTE CAT M1 technology for the best performance and longest life cycle. Compatible with 3G and LTE cellular networks. It was designed by Uplink as a summary event alarm communicator for industrial equipment. Installation and activation of the 5500M is quick and easy with the assistance of a GeoArm technician.

Product Features:

Works on both Verizon and AT&T networks in the same radio
Supports virtually all security systems and multiple formats
End-user smartphone app for remote arming and disarming and output activation
Real-time push and email notifications
Installer app for on-site testing of status and signal strength
Powers from the panel and comes pre-activated for quick and easy installation

Uplink 5500M Product Specifications:

Inputs and Outputs

Two Outputs: 2 Transistor outputs
Four Inputs: 4 Digital inputs, All inputs can be connected to siren/bell (distinguish burg/steady and fire/pulsed signal)

Status LED's

Slow flashing - trying to establish connection
Constantly on - connection established at good signal level
Constantly on - blinging every 5 sec. - connection established at low signal level
Fast flashing - transferring

Reporting

Interface to Alarm Panel: Dial-Capture Interface: ContactID, SIA or Pulse
Central Station Reporting: ContactID or SIA (configurable)
Other Reporting Methods: Push and Email notifications

Power Requirements

Voltage: 12 Vdc to 15 Vdc
Consumption: Standby: 15mA, Peak:

Radio

Technology: LTE CAT M1
Networks: Dual-SIM with Verizon and AT&T
Frequency bands: 700/850/1700/1900/2100 MHz

Environmental

Operating Temperature Range: 32°F to 120°F (0°C to +49°C)
Humidity: 0 to 85% non-condensing

Dimensions

Height, Width, Depth: 2.50 x 3.55 x 1.26 inches (device only)
Weight: 2.65 oz without an antenna
Antenna: 3 feet cable

Uplink 5500M Product Applications:

Sewer Lift Stations
Agriculture
Generator Power
Sports and Safety Lighting
Mechanical Chillers and Freezers
Industrial Systems Control
