2GIG-TS2-E - 2GIG Wireless Secondary Touchscreen Alarm Keypad (for 2GIG GC2e Panel)
2GIG-TS2-E Product Description:

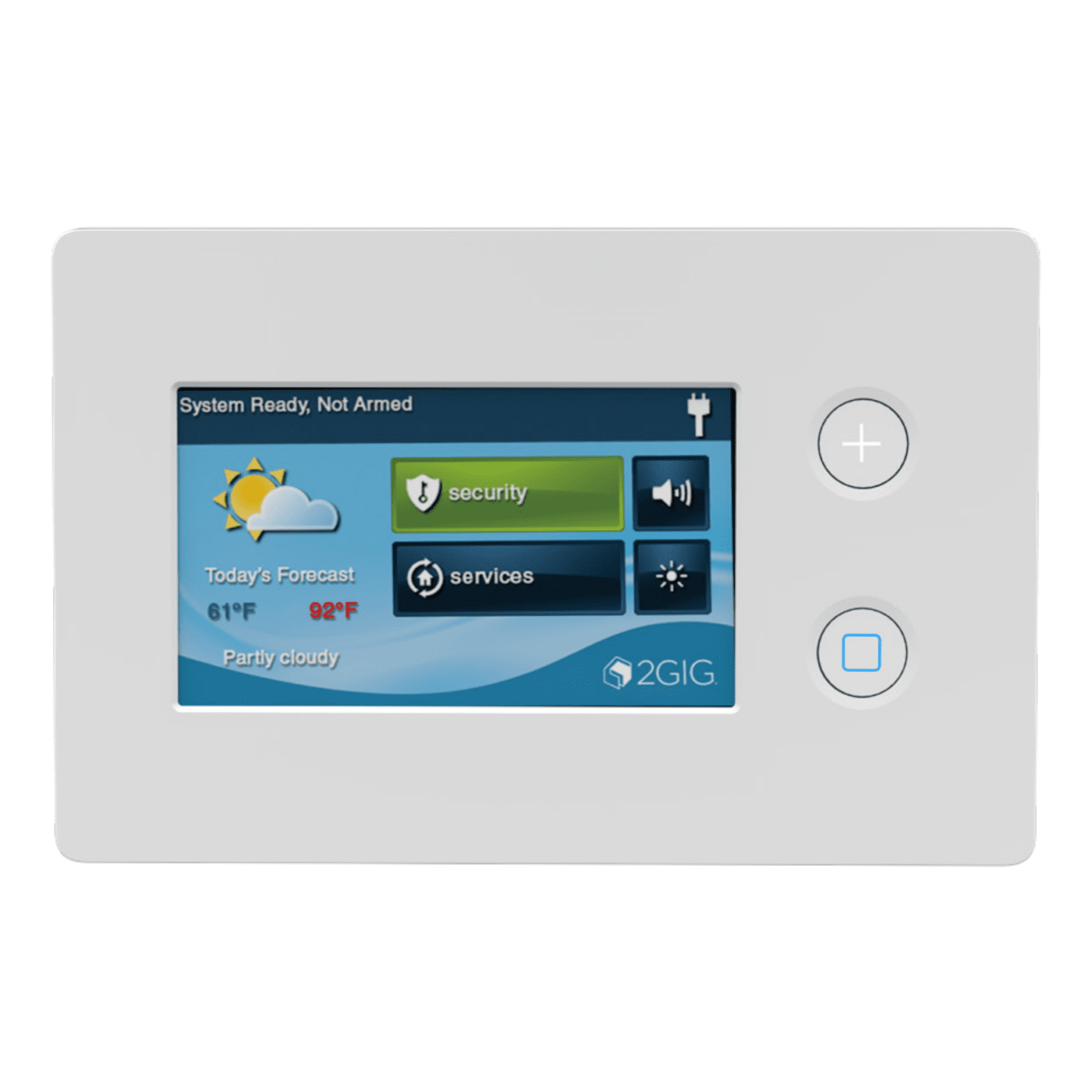

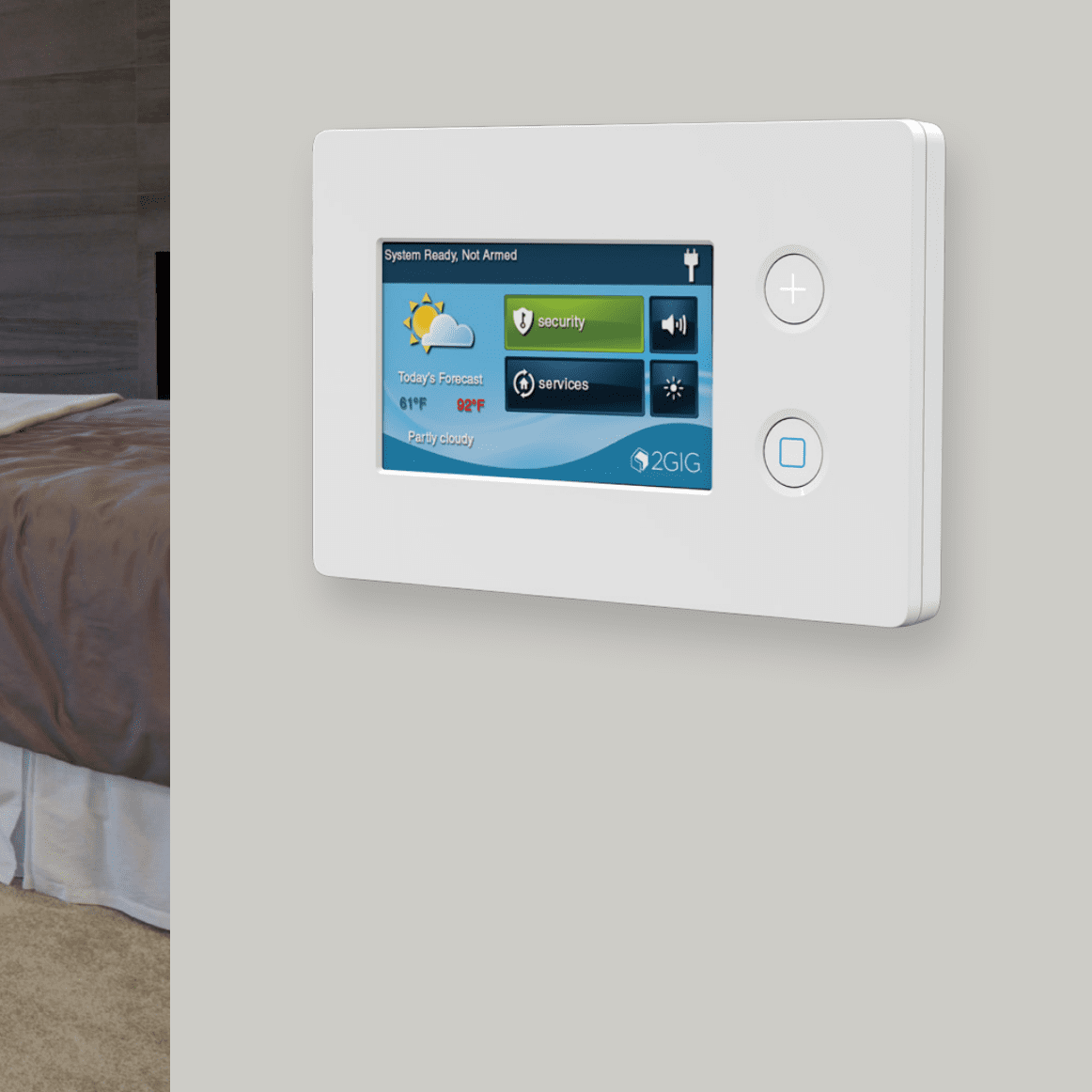

The 2GIG-TS2-E wireless secondary touchscreen keypad provides an intuitive and convenient way to access, monitor, and control your 2GIG GC2e security and automation system from anywhere in your home. The 2GIG TS2-E wall-mounted, full-color touchscreen keypad mirrors the GC2e's primary interface, allowing users to easily arm and disarm the system, control Z-Wave devices, and view the status of every sensor zone - all through the same responsive and familiar design.
Operating on 900 MHz frequency-hopping spread-spectrum technology, the TS2-E ensures reliable, secure, and interference-free bi-directional communication with the GC2e panel, maintaining a wireless range of up to 500 feet (open air). The system supports up to four TS2-E keypads per panel, offering complete home coverage and easy accessibility in multiple rooms.
The TS2-E also provides audible chimes and alerts, keeping users informed of system activity and notifications in real time. Powered by the 2GIG-AC2 plug-in power supply, the keypad receives over-the-air firmware updates directly from the GC2e control panel for hassle-free maintenance.

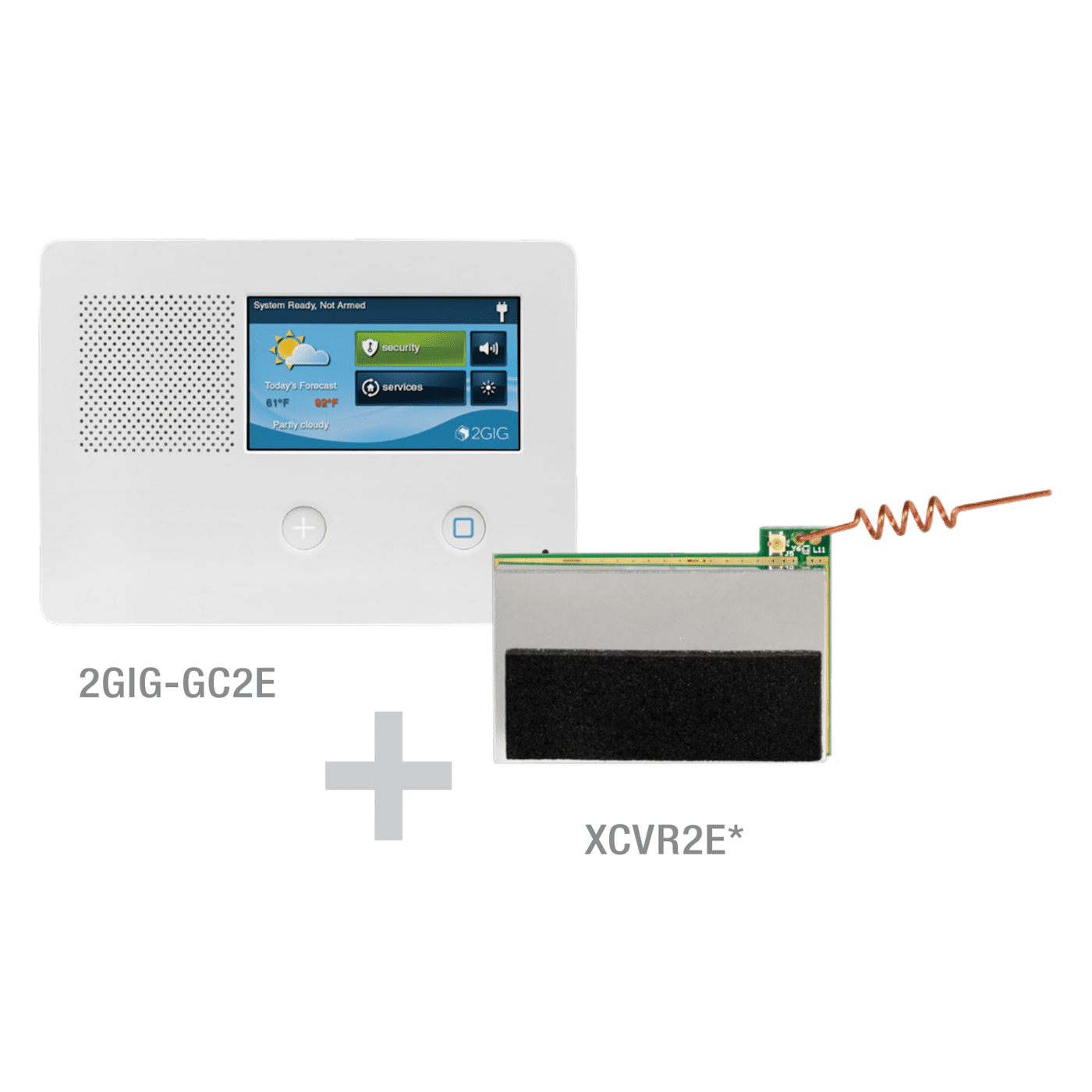

For operation, the GC2e panel must be equipped with the 2GIG-XCVR2e-345 wireless 345 MHz receiver and 900 MHz transceiver module. Designed exclusively for indoor use, the TS2-E delivers a sleek, reliable, and user-friendly interface for complete security and smart home control.
Product Features:
- Full-Color Touchscreen Interface - Mirrors the 2GIG GC2e panel for consistent and intuitive operation.
- Wireless System Control - Arm/disarm the system, monitor zones, and control smart home devices.
- Z-Wave Automation Support - Manage lights, locks, and thermostats directly from the keypad.
- Secure 900 MHz Communication - Uses frequency-hopping spread-spectrum for reliable, interference-free operation.
- Extended Coverage - Supports up to four wireless keypads per system with up to 500 ft open-air range.
- Audible Alerts and Chimes - Provides system status updates, notifications, and entry/exit tones.
- Over-the-Air Updates - Receives firmware updates from the GC2e panel for simplified maintenance.
- Powered by 2GIG-AC2 Supply - Ensures consistent and stable operation.
- Easy Wall-Mounted Installation - Sleek design complements any interior.
- Requires 2GIG-XCVR2e-345 Transceiver - Enables communication with the GC2e panel.
2GIG-TS2-E Product Specifications:
- Model Number - 2GIG-TS2-E
- Product Type - Wireless Secondary Touchscreen Alarm Keypad
- Function - Provides secondary user interface for arming/disarming and smart home control
- Series - eSeries (900 MHz)
- Dimensions (L x W x H) - 4.3" x 6.7" x 0.9" in (11 x 17 x 2.2 cm)
- Weight - 8.8 oz.
- Compatible Control Panel - 2GIG GC2e Panel
- Compatibility Note - 2GIG GC2e (requires 2GIG-XCVR2e-345 900 MHz transceiver module)
- Radio - 25 channel frequency-hopping spread spectrum, 403 kHz channel spacing (910.2-920.275 MHz), GFSK modulation, 128 kbps, +19dBm maximum RF power out
- Wireless Signal Range - 500 ft (152.4 m), open air, with Wireless Control Panel
- Transceiver Frequency - 900 MHz frequency-hopping, bi-directional communication
- Display Type - Full-color touchscreen LCD
- User Interface - Mirrors GC2e control panel for consistent operation
- Communication Type - Bi-directional wireless communication with GC2e control panel
- Encryption - Encrypted wireless communication (eSeries protocol)
- Supported Devices per Panel - Up to 4 TS2-E keypads
- Smart Home Control - Controls Z-Wave devices including lights, locks, and thermostats
- System Monitoring - Displays zone status, system alerts, and event notifications
- Audible Feedback - System chimes, alerts, and entry/exit tones
- Power Source - 2GIG-AC2 plug-in power supply (included)
- Power Consumption - 5V DC, 1A max
- Firmware Updates - Over-the-air (OTA) via GC2e control panel
- Installation Type - Wall-mounted (indoor use only)
- Housing Material - ABS Plastic
- Color - White
- Operating Temperature - 32° to 120F° (0° to 49°C)
- Relative Humidity - 5% to 95% Non-Condensing
- Operating Voltage - 14VDC
- Warranty - 1 Year
- Certification - FCC Part 15, Industry Canada
2GIG-TS2-E Recommended Tools:
The following tools are recommended when mounting the keypad to the wall:
- #6 Insulated Spade Terminals
- Drywall Saw (or equivalent)
- Ladder
- Pencil
- Screwdriver
- Staple Gun
- Wire (for details, see Determining the Wire Gauge and Maximum Length)
- Wire Stripper
2GIG-TS2-E Minimum Requirements:
For successful communications, the system must meet these minimum requirements:
- A 900 MHz Transceiver Module (2GIG-XCVR2e-345) must be installed in the control panel.
- The 2GIG Panel must be running the minimum Firmware version as shown below based on the platform of the panel or higher.
- The TS2-E keypad must be running Version 1.16 or later. See Verifying the Firmware Version on Both Devices.
2GIG-TS2-E Product Includes:
- (1) Wireless Touch Screen Keypad
- (1) AC Adapter
- (1) AC Adapter Bracket (with adhesive-backing)
- (1) Plastic Zip Tie
- (3) Plastic Wall Anchors and Phillips Head Screws
