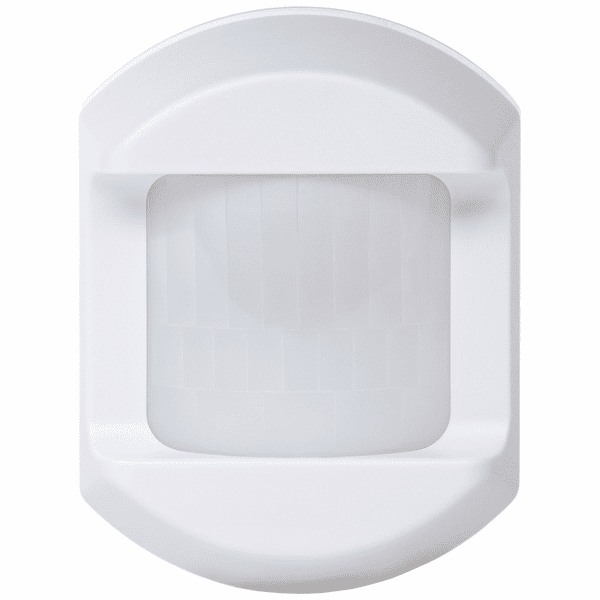

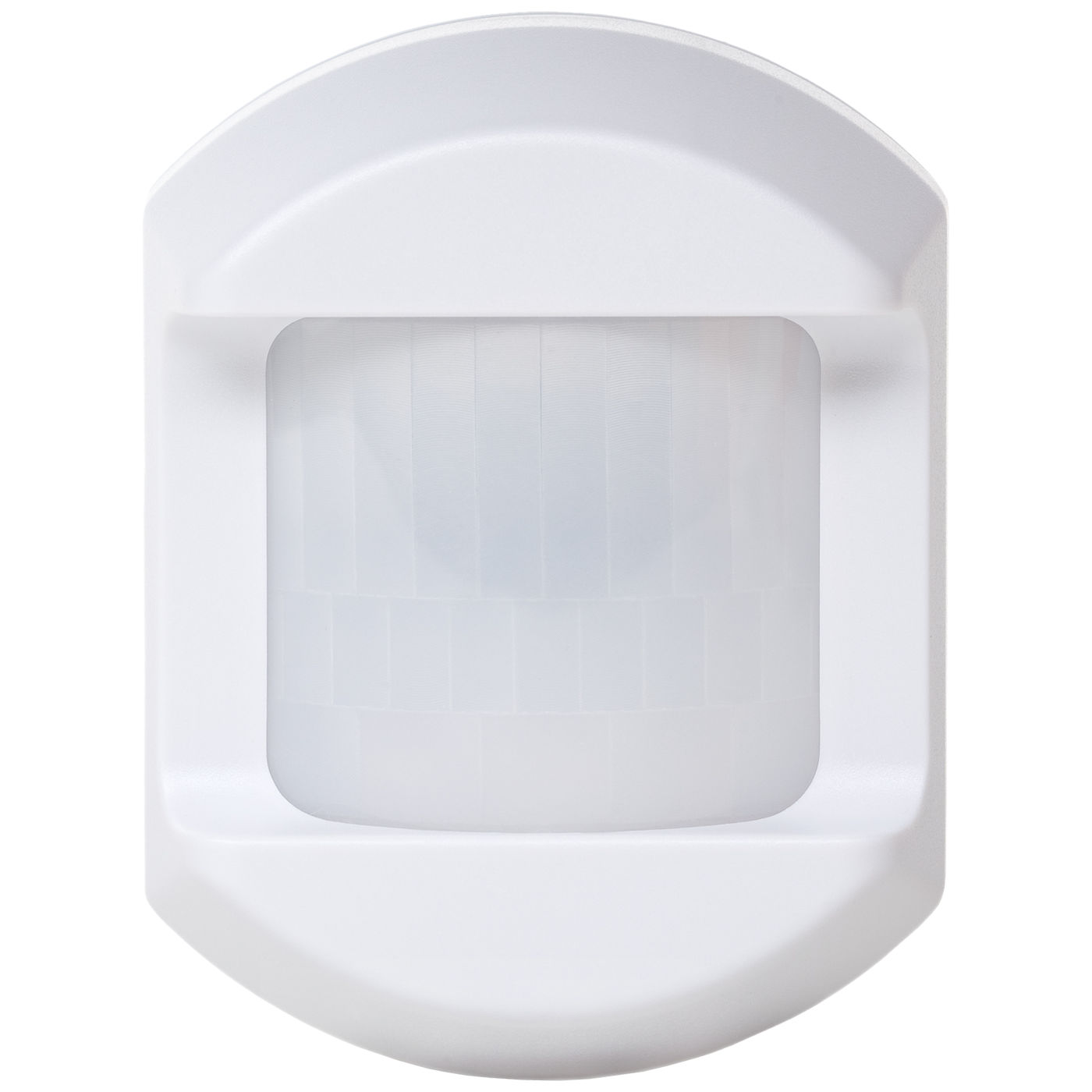

2GIG-PIR1e-345 - 2GIG Wireless eSeries Passive Infrared Motion Detector

2GIG-PIR1e-345 - 2GIG Wireless eSeries Passive Infrared Motion Detector
2GIG-PIR1e-345 - 2GIG Wireless eSeries Passive Infrared Motion Detector
Item# 2GIG-PIR1e-345

Average Customer Rating:
Read Review(s) | Write a Review

List Price: $82.48
Your Price: $54.99
Availability: In Stock
QTY:

2GIG-PIR1e-345 Product Description:


The 2GIG-PIR1e-345 is a wireless, eSeries encrypted, motion detector that features a wide 30' X 50' foot wide area of coverage when set to high (HI) sensitivity mode. With the 2GIG-PIR1e-345, you can even arm your 2GIG GC2e, GC3e and EDGE security system with pets in your house because the sensor includes passive infrared technology for pet immunity up to 55 pounds. The 2GIG-PIR1e-345 communicates with the 2GIG eSeries control panels using the 345 MHz frequency. Additionally, the PIR1e-345 is tamper proof and you will receive immediate alerts if anyone ever tries to tamper with the detector or break it.

Product Features:

  • Dual element sensor with 30' by 50' foot wide range (9.1m x 15.2m)
  • 33 or 55 lbs pet immune (15kg or 25 kg)
  • 90-degree look down
  • 110° spread
  • 3 different mounting brackets
  • Tamper protected
  • Fully supervised
  • Lithium battery
  • 345 MHz frequency
  • eSeries encryption
  • ETL Listed

2GIG-PIR1e-345 Product Specifications:


  • Wireless Signal Range: 350 ft., open air, with Wireless Control Panel
  • Code Outputs: Alarm, Alarm Restore, Tamper, Tamper Restore, Supervisory, Low Battery
  • Transmitter Frequency: 345.00 MHz (crystal controlled)
  • Unique ID Codes: Over one (1) million different code combinations
  • Supervisory Interval: 70 minutes
  • Sensor Type: Quad element
  • Pet Immunity Selectable: 33 lb (15 kg) or 55 lb (25 kg; default)
  • Sensitivity Jumper Selectable: High or Low (default)
  • Suggested Mounting Height: 7.5 ft. (2.3 m)
  • Sensor Range: 30 ft. (9.1 m) x 50 ft. (15.2 m)
  • Maximum Horizontal Sensing Angle: 90°
  • Dimensions (L x W x H): 3.2 x 2.5 x 1.9 in. (8.12 x 6.35 x 4.82 cm)
  • Weight (including battery and bracket): 3.7 oz. (104.9 g)
  • Housing Material: ABS Plastic
  • Color: White
  • Operating Temperature: 32° to 120°F (0° to 49°C)
  • Relative Humidity: 5-90% Non-Condensing
  • Battery (installed): One (1) CR 123A 3V or equivalent Lithium battery
  • Certification: Anatel, ETL, FCC, IC, IFETEL, and NOM

2GIG-PIR1e-345 Product Includes:


  • (1) Passive Infrared Motion Detector
  • (1) Plastic Mounting Bracket
  • (1) Plastic Wall Mount
  • (1) Plastic Corner Mount
  • (2) Plastic Wall Anchors with Screws
  • (1) Short Phillips Head Screw with Fender
  • (1) Short Phillips Head Screw
  • (1) Lithium Coin Battery
