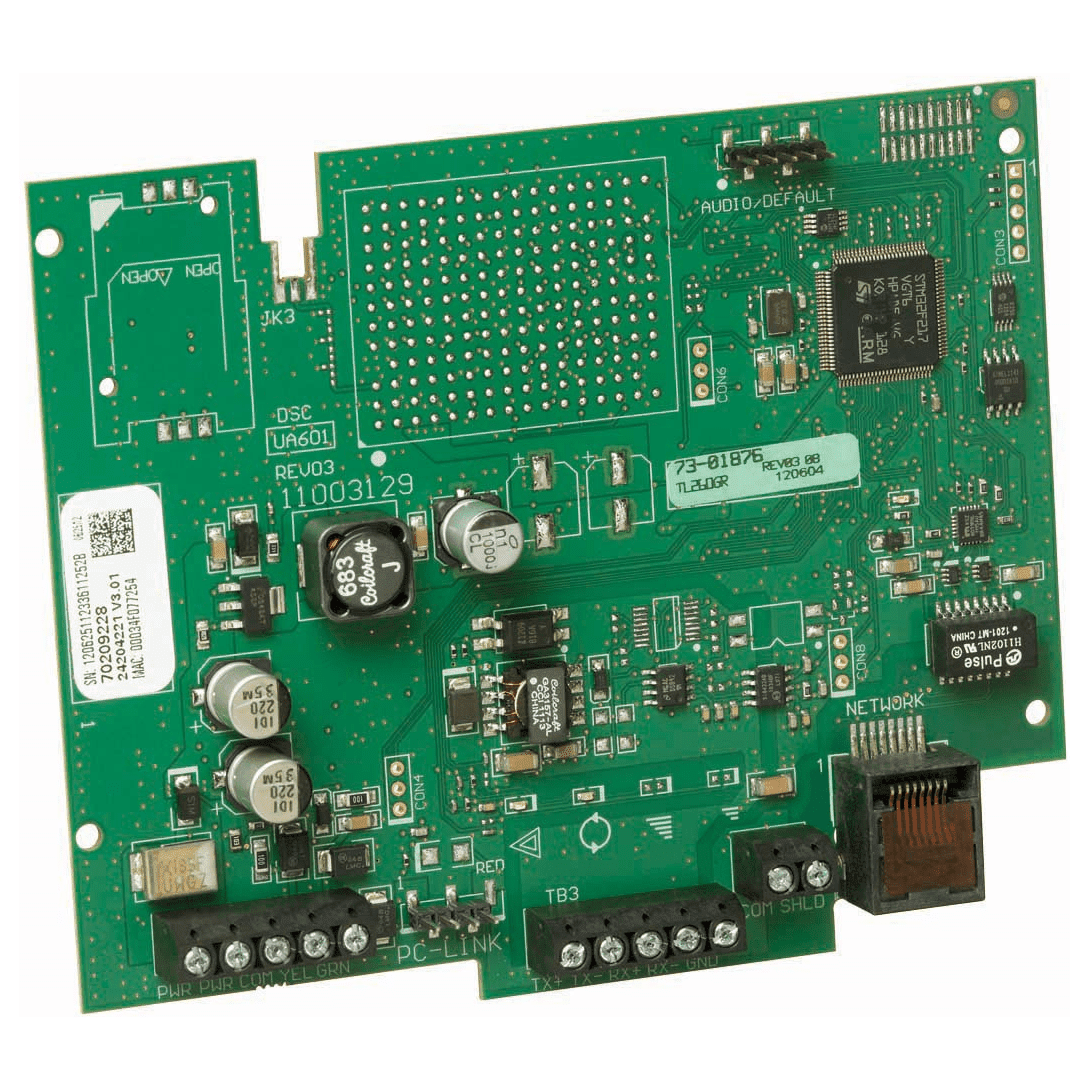

TL260R-NA - DSC PowerSeries Ethernet/Internet Alarm Communicator (Powered by DSC)
DSC TL260R-NA Product Description:
The DSC TL260R-NA is a ethernet/internet alarm communicator that is compatible with the DSC PowerSeries control panels. When connected to a DSC PowerSeries PC1864/1832/1616 control panel, home or business customers have the option to combine alarm reporting paths through Public Switched Telephone Network (PSTN) and Internet.
When the TL260R is connected to the PC1864/1832/1616 control panel, the alarm signal can be sent to either the primary receiver or to both the primary and backup receivers at the GeoArm central monitoring station, providing a fully redundant solution. The TL260R conveniently utilizes the existing internet/intranet connection to eliminate the need for dedicated phone lines and reduce the impact of phone line interruption.
The TL260R offers full data reporting and remote management for installers, saving time and reducing costs. With the use of DSC's DLS 5 downloading software, you can remotely program and configure the control panel, change user information, retrieve historical records, generate the status reports and maintenance details from a PC via the internet/intranet connection network.
With 128-bits AES encryption of the alarm signal, central stations, installers and customers can be assured that this is the most secure alarm communicator offered. And with programmable (by seconds) supervision heartbeats, the communicator's availability is fully monitored. Back-up alarm communication over the Internet/Intranet stream provides a supervised link to the premises.
TheTL260R connects to the PC-Link connector on the PC1864/1832/1616 control panel within the same enclosure, providing the Internet/Intranet connection that sends predefined "reporting" codes to a central monitoring station. For retrofit installations, simply install this communicator to an already existing control panel and the service is instantly upgraded to a dual-path alarm communicator.
Product Features:
- Fully redundant Internet/Intranet alarm communication
- Integrated call routing
- Panel remote uploading/downloading support
- Individual Periodic Test Transmission
- Supervision heartbeats via Internet/Intranet
- 128-bit AES encryption via Internet/Intranet
- Full event reporting
- Supports SIA and Contact ID*
- PC-Link connection
- Approvals: FCC/IC, UL, ULC
DSC TL260R-NA Product Specifications:
- Dimensions: 3.937" × 5.875" × 0.625" (100mm × 150mm × 15mm)
- Weight (with mounting bracket): 0.672 lbs (305 g)
- Input Voltage: 10 to 13.8 V (from the panel Bell output)
- Current Draw: 100 mA at 12V
- Operating Environment: 40° to 104°F (5° to 40°C)
DSC TL260R-NA Product Documents:
• Data Sheet for DSC TL260R-NA PowerSeries Ethernet/Internet Alarm Communicator
• Installation/Operation Guide for DSC TL260R-NA PowerSeries Ethernet/Internet Alarm Communicator
DSC TL260R-NA Product Compatibility:
- Sur-Gard System I Receiver: Version 1.10 and higher
- Sur-Gard System II Receiver: Version 2.00 and higher
- Sur-Gard SG-DRL3-IP: Version 2.20 and higher (for Sur-Gard System III Receiver)
- Sur-Gard SG-DRL4-IP: Version 1.20 and higher (for Sur-Gard System IV Receiver)
- DSC PowerSeries PC1616 (Version 4.1 and higher)*
- DSC PowerSeries PC1832 (Version 4.1 and higher)*
- DSC PowerSeries PC1864 (Version 4.1 and higher)*
Please Note: V4.5 is needed for Contact ID support
