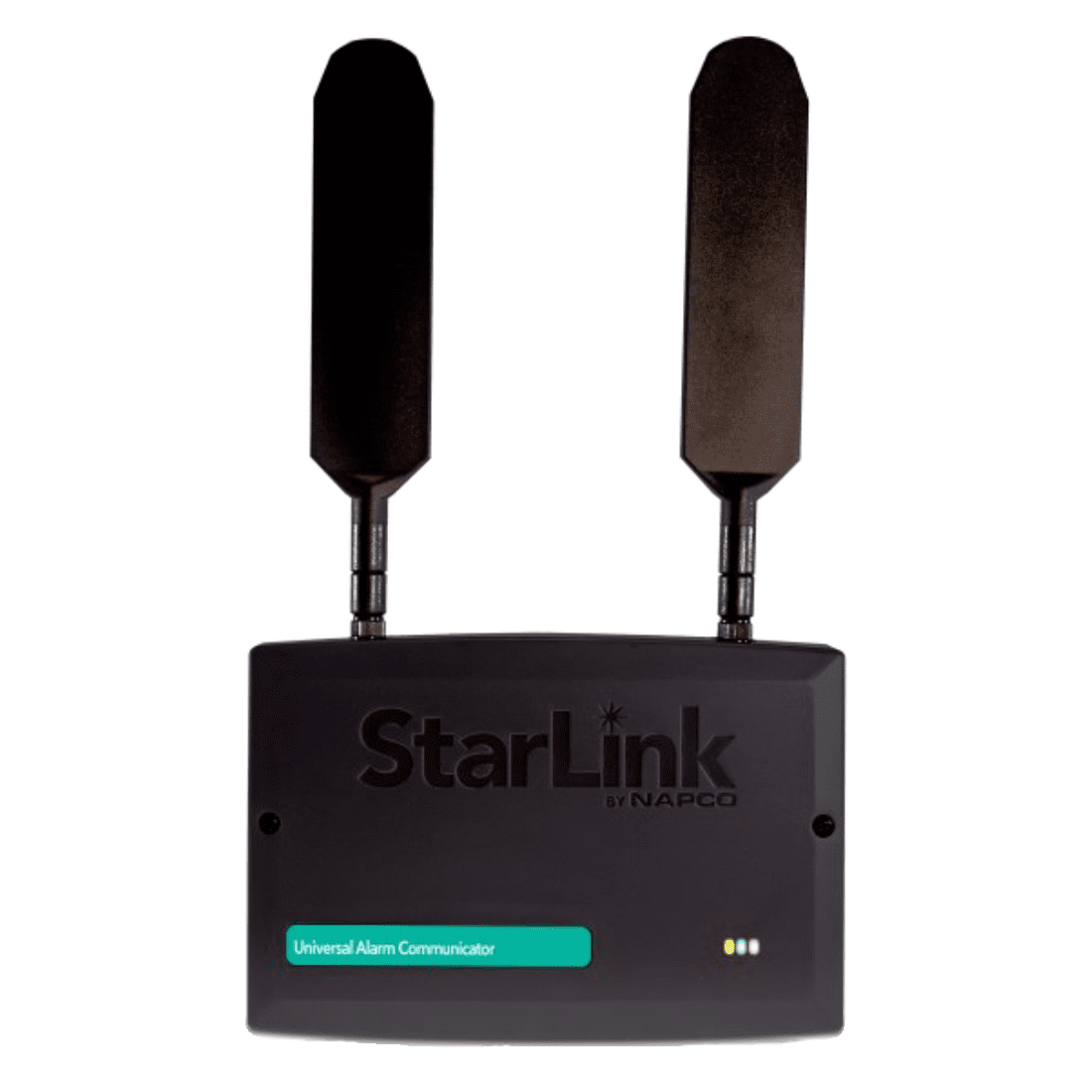

SLE-MAXV - Napco StarLink Max Connect Universal Cellular Verizon 5G LTE-M Alarm Communicator (Compatible with Most Panels)
Please Note: The Napco SLE-MAXV Max Connect universal cellular Verizon 5G LTE-M alarm communicator has been discontinued and replaced by the SLE-MAX2L model number.
Napco SLE-MAXV Product Description:
The Napco SLE-MAXV StarLink Max Connect Universal Cellular Verizon 5G LTE-M Alarm Communicator is a cutting-edge solution designed to enhance the security of your premises with seamless connectivity and compatibility. This advanced communicator is engineered to work with most existing security system control panels from various manufacturers, making it a versatile choice for both residential and commercial applications. With its integration of Verizon's robust 5G LTE-M network, the device ensures reliable and fast communication, providing peace of mind that your security system is always connected and responsive.
This universal burglary communicator is not only about connectivity but also about ease of installation and use. The Napco SLE-MAXV is designed with user-friendly features that simplify the setup process, allowing for quick integration into your existing security infrastructure. Its compact design ensures it can be discreetly installed without compromising on performance. Additionally, the communicator supports a range of security protocols, ensuring that it can adapt to various system requirements and configurations. Whether you're upgrading an old system or installing a new one, the Napco SLE-MAXV offers a future-proof solution with its state-of-the-art technology and robust network support, ensuring your security system remains effective and reliable.
Product Features:
- Easy Installation
- Signal Boost and Dual Diversity Antennae
- Reports to Any Central Station
- Cellular Verizon 5G LTE-M Network
- For Max speed and next-level coverage, up to 100X faster and the longest lifespan
Napco SLE-MAXV Product Specifications:
Physical
- Plastic Housing Mounting: Durable ABS plastic (white) includes three keyhole slots for mounting (easy alignment with triple gang boxes)
- Housing Dimensions (W x H x D): 8" x 5-29/64" x 1-1/2" (20.3 x 13.9 x 3.8cm)
Environmental
- Operating Temperature: 0°C - 49°C (32°F - 120°F)
- Humidity: Maximum 93% Non-Condensing
- Mounting: Indoor/dry location use only
Electrical Ratings (all models powered by the control panel)
- Input Voltage: 10-15VDC (power-limited output from UL Certified control panel)
- Input Current: 10V = 70mA, 12V-15V = 65mA
Electrical Ratings for the IN 1 Burg/Fire Input
- Input Voltage: 9-15VDC
- Maximum Input Current: Up to 2mA from FACP NAC circuit
Electrical Ratings for IN 2 and IN 3
- Maximum Loop Voltage: 15VDC
- Maximum Loop Current: 1.2mA
- End of Line Resistor (EOLR) Value: 10K (2 req'd)
Electrical Ratings for 3 PGM Outputs
- Open Collector Outputs: Maximum Voltage 3V when active; 15V maximum when not active
- Maximum PGM Sink Current: 50mA (up to 15VDC), 25mA (15.1VDC - 25VDC)
