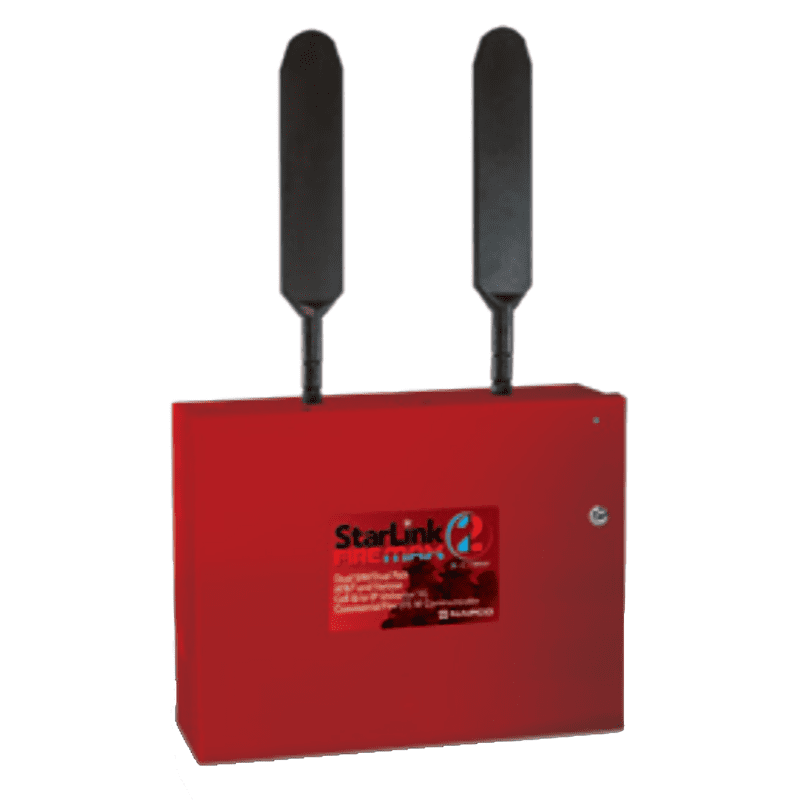

SLE-MAX2-CFB - Napco StarLink Commercial Fire Dual-Path IP/Cellular and Dual-SIM AT&T/Verizon Alarm Communicator in Metal Enclosure with Direct AC Power (Compatible with Most Panels)
Napco SLE-MAX2-CFB Product Description:
The Napco SLE-MAX2-CFB Sole/Dual-Path Alarm Communicator with power supply, in metal enclosure, is specifically designed to interface with FACP (Fire Alarm Control Panels) and comply with UL 864 10th edition. The SLE-MAX2-CFB operates on both the Verizon and AT&T cellular networks and utilizes CAT-M1 technology. This device supports both Sole Path, cellular only; Traditional Dual Path, cellular and IP; and Super Dual Supervised Dual Carrier and Dual Path communication methods. Super Dual exclusive to NAPCO, is a UL 864 10th edition Certified fire communication service that allows the communicator to utilize two cellular carriers to provide dual path reporting. This is accomplished through the supervision of each carrier at the required NFPA intervals, i.e., 6 Hour supervision for NFPA 2013 through 2022.
For Dual Path cellular/IP reporting, the system can communicate via an on-board Ethernet jack or via Wi-Fi using the optional UL 864 Certified SLE-WIFI-MODULE. The communication mode (Sole Path or Dual Path) requires selection of the appropriate service plan at the point of communicator activation. The communicator is equipped with two form "C" dry relays, one for a trouble output and one for an auxiliary output. The unit is also equipped with four EOLR supervised inputs to report a Fire Alarm, a Fire Trouble, a Water Flow Alarm and a Supervisory Alarm, each triggered from the N/O and Common terminals of the associated FACP output relays. This communicator is for use as the primary means of communication with the central station and do not have backup mode capability. This communicator can also be utilized as a Sole Path Cell communicator. No POTS (Telco Line) connection is permitted. For Commercial Burglary installations, under the armed condition, any loss of communication must be treated as a Burglary Alarm at the central station.
For connection to the FACP DACT, the SLE-MAX2-CFB provides two RJ-45 Telco connections to satisfy the FACP telephone requirements. The primary Telco connector can be supervised and can report a trouble signal to the central station upon any open or short on the primary Telco wires that prevents reporting. The secondary telephone line is supervised by the FACP; when a line fault is detected, a signal trouble is reported to the central station through the primary telephone line. The SLE-MAX2-CFB is compatible with most 12VDC or 24VDC alarm control panels (always adhere to the documentation provided by the control panel manufacturer). Mount to a single-, dual-, or three-gang electrical box and route the wires through the back knock-out(s), or as specified by local codes.
Product Features:
- Dual SIM, Dual Path - Universal full data 5G LTE-M cellular &/or IP, or supervised dual cell (Super Dual™) commercial fire alarm reporting from any panel, virtually anywhere nationwide
- One Model to Stock - Provides both Verizon™ & AT&T™ Cell Networks plus either sole or dual path cell/IP , -or- exclusive Super Dual™ Supervised Dual Cell, Dual Channel Cell-Only Dual Path UL 864 reporting (Selectable by plan)
- Auto-Network-Select by Site - Upon power up, the signal-strength provided by each cell carrier is analyzed at the site, and the unit will lock-in the best carrier automatically, ie., AT&T or Verizon. Thereafter, it's periodically reviewed and dynamically swapped as needed.
- EZ Cell-Network ID- Red or Blue Indicators - Inside the unit, the Carrier Indicators will light Blue for AT&T or Red for Verizon connection (also test button indicates signal strength on each for manual check)
- See/Set SIM Status Remotely - using a PC or smart device, the StarLink Network Operations Center (NOC), in Napco Headquarters, NY, can be accessed allowing you used to set parameters or view current status, Dual SIM status of accounts
- Supports 12V-24V FACUs - No Panel Reprogramming with those that communicate using Contact ID and 4/2 (such as on legacy panels), as primary or backup.
- UL & NFPA Code-compliant, replaces 2 POTs lines per FACU - saves thousands of dollars per year over the leased landlines
- Proven StarLink Reliability & Best 5G LTE-M Performance - Signal Boost™ Circuitry & unique dual-diversity twin antennas, maximizing signal acquisition and eliminating the multiphase-effect signal-clash/drop-outs single-antenna units are prone to.
- Easiest installation - powered by panel, NO extra power supply, NO extra conduit
- Labor-Saving Supervision Features - - Uniquely including 4 supervised, programmable EOLR zone inputs; 2 Form C Relay outputs (no extra supervision modules to buy or install); plus, 2 Telephone style jacks for easy FACU-connection. Self-supervised on 4 wires.
- Easy Account Management - on www.napcocomnet.com 365/24/7 & Easy-Repeat Account Templates -Save your typical account setup and reuse for goof-proof communicator programming & fast deployment.
- UL Listed & NFPA 72 Fire Code-Compliant - , the StarLink Fire Max 2 Series Wireless Commercial Fire Alarm Sole Path & Dual Path Communicators provide universal support for any brand 12V to 24V fire alarm control panel (FACU), reporting in Contact ID and 4/2. UL-Listed from the UL 864 StarLink Fire Max 2 communicator, to Napco's NY UL 864 Network Operations Center, to any Central Station's UL Listed Receiver. (It is also backed by Disaster Recovery NOC in PA for immediate, mirrored emergency switchover.)
- LED Status/Trouble Indicators - 3 Radio Status LED Indicators (visible from outside standard model housing) - Green, Signal Strength; Amber- Busy/Activation; Red-Trouble. (Additional internal LEDs, not visible with cover closed, i.e. for troubleshooting and for AT&T or Verizon network selection, status). Power LED indicator viewable on outer metal enclosure models.
- Sole or Dual Path 5G LTE-M Cell Commercial Fire Alarm Communicator in One - Simply select Cell or Cell/IP or Super Dual™ Service Plan & check-in period: 5 minutes, 60 minutes, 6 hours or 24 hours.
- Signal Boost and Patented Dual Diversity Antenna - for maximum signal acquisition & null/signal-clash avoidance, receiving signals on both antennas (2 antennas supplied, nothing to buy)
- "Return Receipt" Fully-Supervised Communication Path - between premise & central station, keeping channel open until kiss-off is received from Central Station Receiver
Napco SLE-MAX2-CFB Product Specifications:
Physical
- Metal Housing Dimensions (W x H x D): 11-1/2 x 9-1-2 x 3-1/2" + Antennas (2 each, supplied) 8-1/4" H
- Mounting: Metal housing includes three keyhole slots for triple gang boxes
- Antenna Length: 8-1/4" (21cm)
Environmental
- Operating Temperature: 32°F - 120°F (0°C - 49°C)
- Humidity: Maximum 93% Non-Condensing
- Installation Note: Indoor/dry location use only
Electrical Ratings for +12V / 24V (powered by the control panel)
- Input Voltage: 10-24VDC regulated (power-limited output from Certified control panel Aux/Remote Fire Power)
Important: Powering the communicator with DC voltage above 27.5VDC could cause damage; if the control panel output voltage is operating between 27.5 - 30.7VDC, the SLEFIRE-VR Control Panel Voltage Drop Kit is available to maintain the communicator input voltage below 27.5VDC. Absolute maximum input voltage with SLE-FIRE-VR installed is 30.7VDC and FWR (Full Wave Rectification voltage) is NOT supported. - Input Current:
10VDC standby: 115mA
12VDC standby: 101mA
15VDC standby: 92mA
24VDC standby: 85mA
Wi-Fi Module: (Optional) Add 45mA to the above. (With peak RF transmission current of 325mA).
Electrical Ratings for the IN 1 Fire Input
- Input Voltage: 9-25VDC
- Maximum Input Current: Up to 2mA from FACP NAC circuit
Electrical Ratings for IN 2, IN 3, IN 4, and IN 5: (Inputs IN 2, IN 3, IN 4, and IN 5 are Class B)
- Maximum Loop Voltage: 25VDC input
- Maximum Loop Current: 1.7mA
- End of Line Resistor (EOLR) Value: 10K
Electrical Ratings for PGM3 Output
- Open Collector Output: Maximum Voltage 25VDC
- Maximum PGM Sink Current: 50mA (up to 15VDC), 25mA (15.1VDC - 25VDC)
- End of Line Resistor (EOLR) Value: 10K
Napco SLE-MAX2-CFB Product Compatibility:
• 12VDC Hardwired Fire Alarm Control Panels
