RE667B - Alula Wireless Slimline Touchscreen Black Alarm Keypad (for Connect+ Panel)

RE667B - Alula Wireless Slimline Touchscreen Black Alarm Keypad (for Connect+ Panel)
RE667B - Alula Wireless Slimline Touchscreen Black Alarm Keypad (for Connect+ Panel)
Item# RE667B

Please Note: The Alula RE667B wireless black slimline touchscreen alarm keypad has been discontinued.

Alula RE667B Product Description:

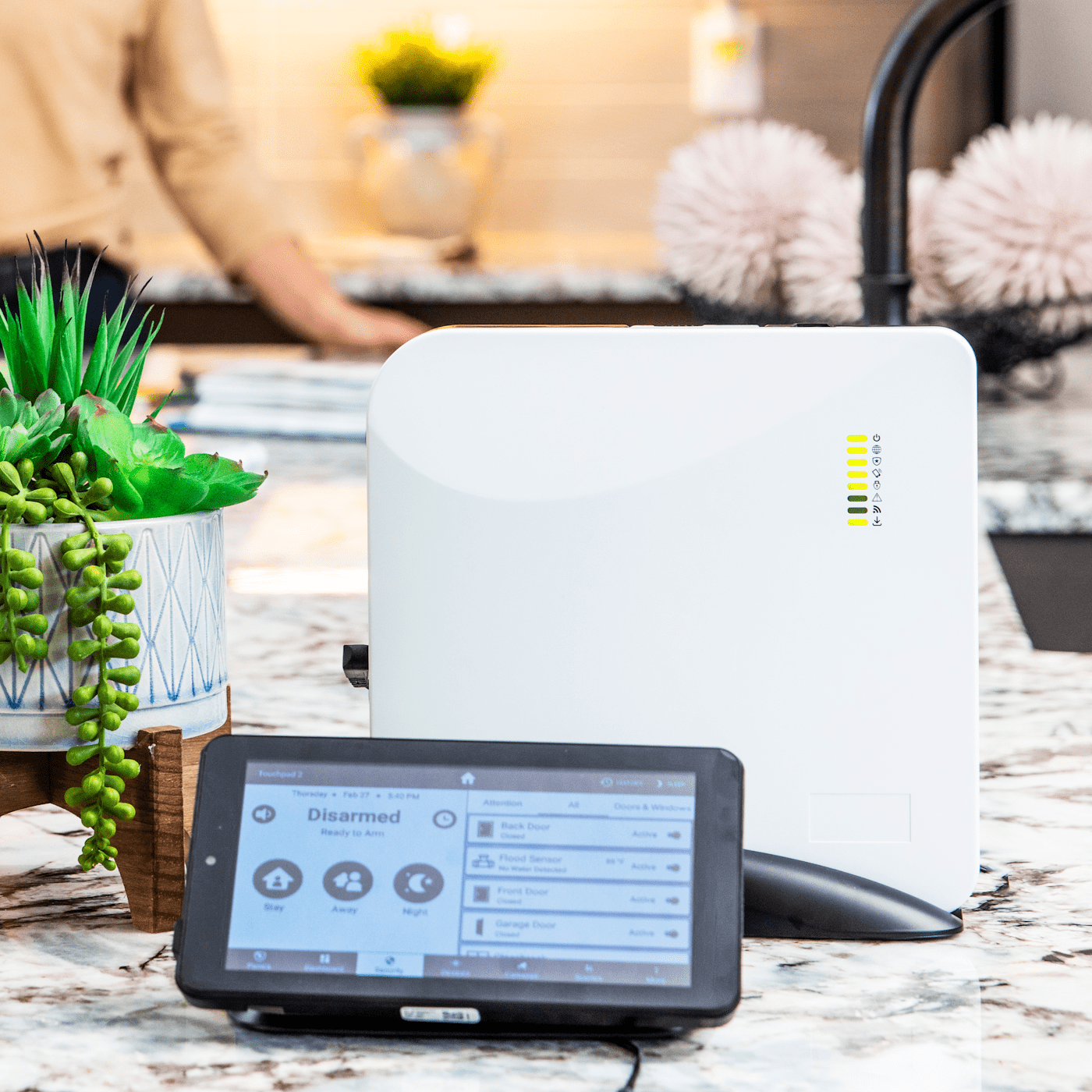

The Alula RE667B is an Connect+ encrypted wireless 7" touchscreen black alarm keypad that is designed for the Connect+ control panel or taking over existing security systems utilizing the BAT-Connect communicator. The RE667B slimline keypad delivers real-time, at-a-glance control of video cameras, Z-Wave devices and every intrusion and environmental sensor.

Make old systems new by upgrading the in-home control interface. Pair the wireless RE667B slimline touchpad with a BAT-Connect communicator to bring an old panel, and a house full of sensors back to life, or add it to the Connect+ Hub. Whether you have an existing system or are installing a new Connect+ panel the slimline touchpad has you covered.

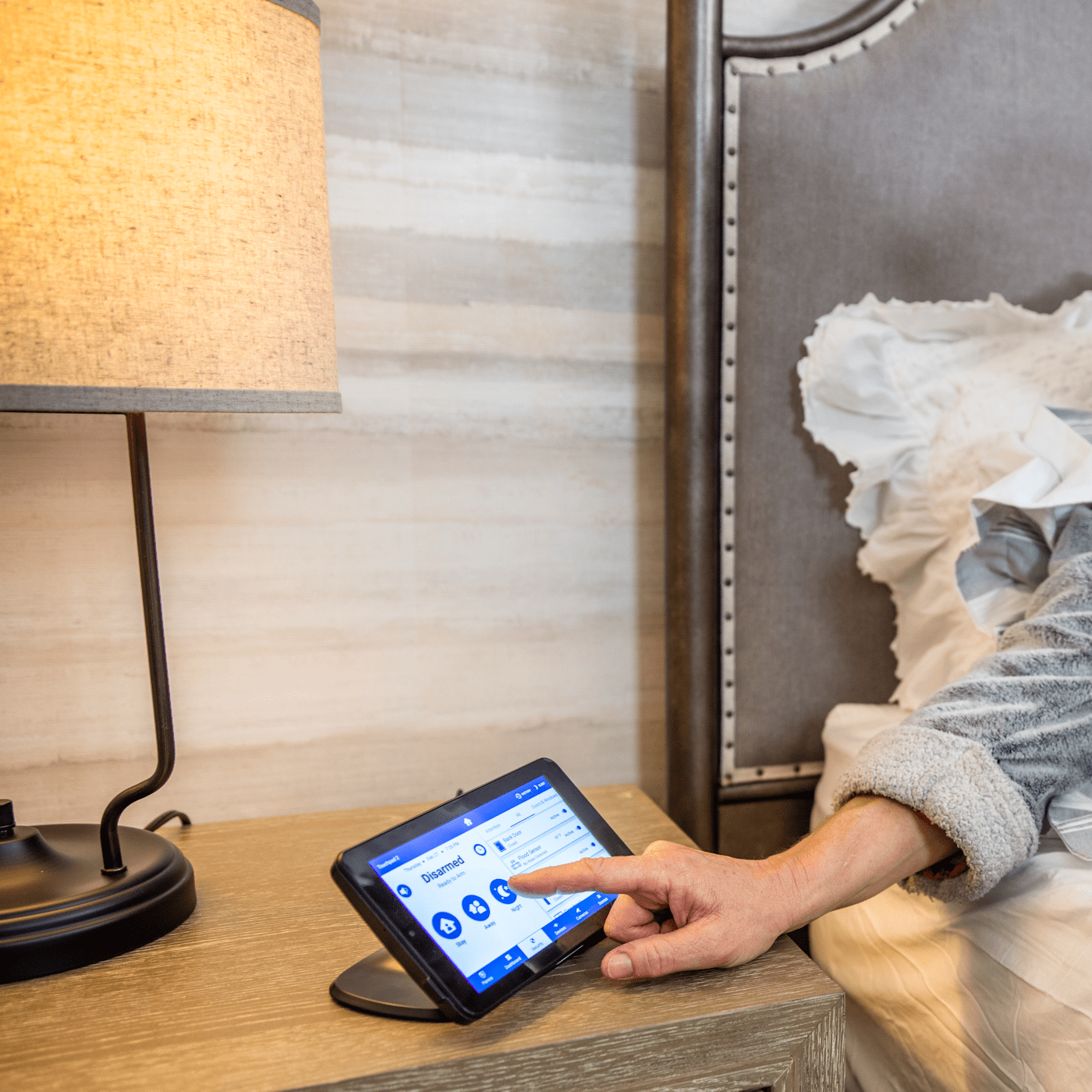

Like the Alula app, the slimline touchpad controls every Z-Wave smart device such as; smartlocks, lights and thermostats. The RE667B touchscreen keypad comes with a wall mount and a premium tabletop stand, giving you more flexibility to install where you want to in your home or business. The keypad is easy to install and the battery can be backed up with a direct wire option.

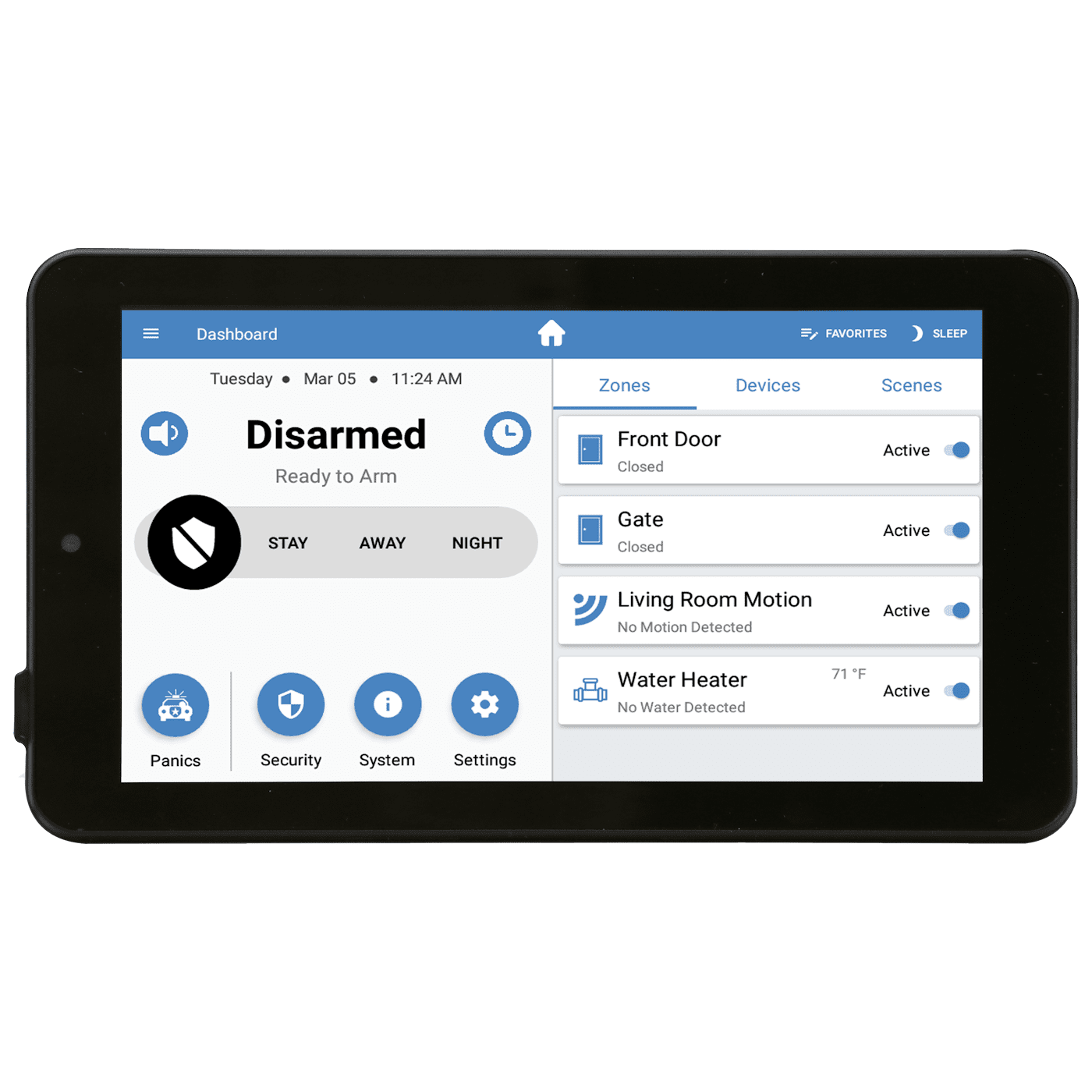

The RE667B touchscreen displays event history and all opened, bypassed or troubled zones. Using the RE667B touchpad, zones can be bypassed or activated. Cameras can be viewed directly from the touchpad. Live view, clips, and event notifications are supported. Doorbell live view will automatically be displayed when the doorbell button is pressed.

Product Features:

  • Compatible with Helix/Connect+ Panel
  • Black Color Casing
  • Vibrant 7" Android™ tablet display
  • Real-time system status
  • Create scenes
  • Lock and unlock Z-Wave door locks
  • Turn Z-Wave lights on and off
  • Set dimmer level for Z-Wave dimmer switches
  • Open and close Z-Wave garage door openers
  • Control Z-Wave thermostats
  • View and control cameras, answer video doorbell, review clips, set as favorites to the dashboard
  • Provides local control of security and automation functionality
  • Includes wall mount and tabletop stand
  • Encrypted, Connect+ and BAT-Connect enabled, battery-backed WiFi connection
  • 12V direct wire and 110V plug-in options with provided transformer, battery-backed
  • 5 year warranty

Alula RE667B Product Specifications:


  • Wall Dimensions: 4.27in (10.84cm) x 7.42in (18.85cm) x 1.60 (4.06cm) Deep
  • Table Top Dimensions: 4.58in (11.64cm) x 7.42in (18.85cm) x 6.63 (16.84cm) High
  • Weight: 1.29lbs (585g)
  • Color: Black
  • Pilot Hole for Screw into Wood: 1/8in (3mm)
  • Pilot Hole for Wall Anchor: 3/16in (4.7mm)
  • Mounting Fasteners: #6 screws & 4 wall anchors (included)
  • Operating Temperature: 32°F to 120°F (0°C to 49°C)
  • Maximum Humidity: 85% non-condensing relative humidity
  • Battery Life: 4 hours
  • Power Transformer Input: 100-240V AC, 50/60Hz, 0.5A
  • Power Transformer Output: 12VDC, 1A
  • Power Transformer Part Number: RE012-6
  • Terminal Block Wire Gauge: 16-24 AWG
  • Wireless Range: 300 feet in open air
  • Screen Resolution: 1024 x 600 pixels
  • Screen Size: 7 inches diagonally
  • WiFi DeviceLink: RE926RX Not Included (only needed for Connect+)
  • Certification: FCC, IC
