RE657WF-R - Alula Wireless Flat-Mount Alarm Touchpad with WiFi DeviceLink Card (for Connect+ Panel)

RE657WF-R - Alula Wireless Flat-Mount Alarm Touchpad with WiFi DeviceLink Card (for Connect+ Panel)
RE657WF-R - Alula Wireless Flat-Mount Alarm Touchpad with WiFi DeviceLink Card (for Connect+ Panel)
Item# RE657WF-R

Average Customer Rating:
Read Review(s) | Write a Review

Please Note: The Alula RE657WF-R wireless flat-mount WiFi alarm touchpad for Connect+ Panel has been discontinued.

Alula RE657WF-R Product Description:

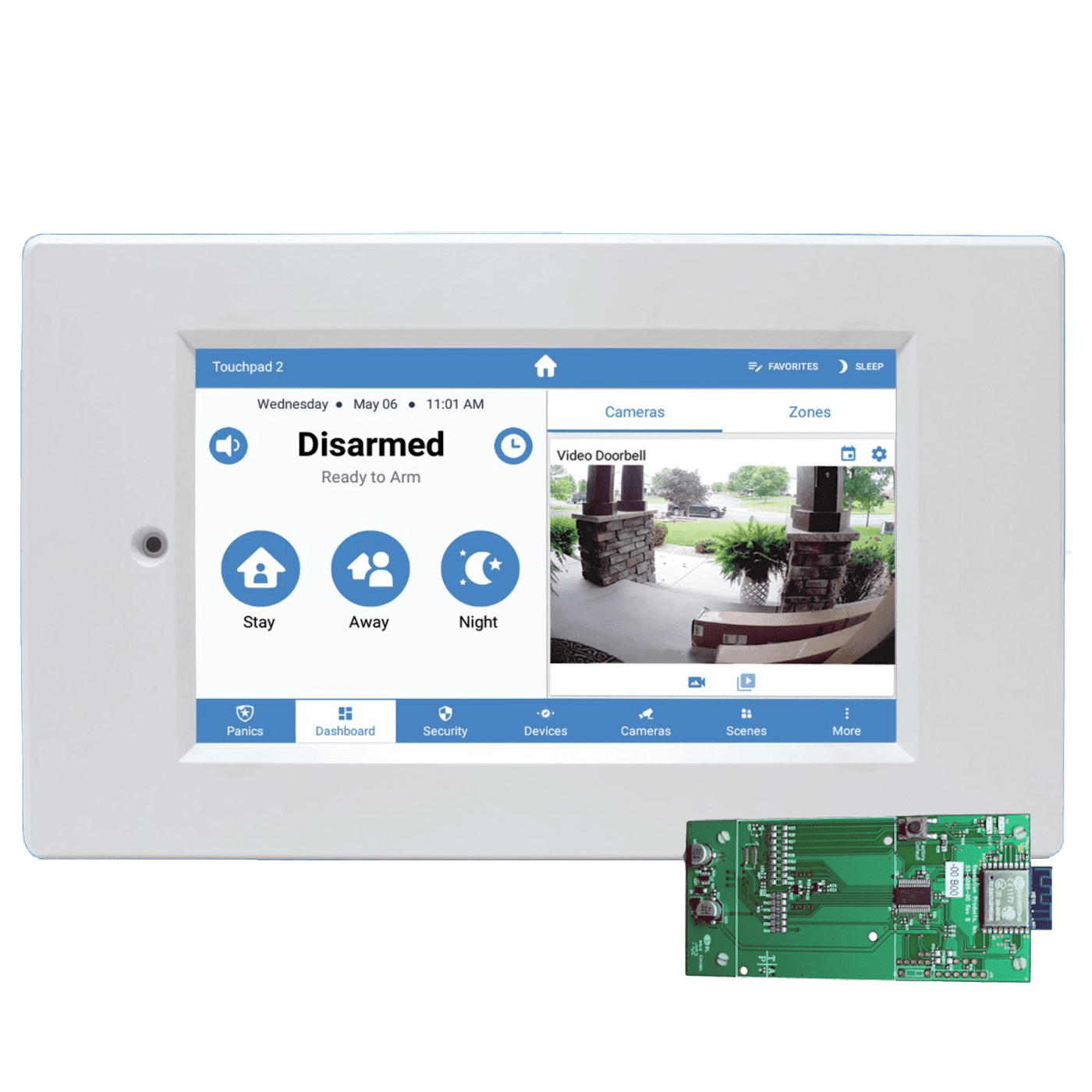

The Alula RE657WF-R is an Connect+ encrypted wireless 7" touchscreen white alarm keypad with WiFi DeviceLink card that is designed for the Connect+ control panel or taking over existing security systems utilizing the BAT-Connect communicator. The RE657WF-R flat-mount keypad delivers real-time, at-a-glance control of video cameras, Z-Wave devices and every intrusion and environmental sensor.

Ancient keypads leave more than just a tired old look on-site, they're surrounded by paint lines. The RE657WF-R flat mount touchpad has a 9" x 5.5" footprint to cover the sins of old keypads, covering over unsightly screw holes. Pair the wireless RE657WF-R slimline touchpad with a BAT-Connect communicator to bring an old panel, and a house full of sensors back to life, or add it to the Connect+ Hub. Whether you have an existing system or are installing a new Connect+ panel the slimline touchpad has you covered.

Like the Alula app, the slimline touchpad controls every Z-Wave smart device such as; smartlocks, lights and thermostats. The RE657WF-R touchscreen keypad comes with a wall mount and a premium tabletop stand, giving you more flexibility to install where you want to in your home or business. The keypad is easy to install and the battery can be backed up with a direct wire option.

The RE657WF-R touchscreen displays event history and all opened, bypassed or troubled zones. Using the RE657WF-R touchpad, zones can be bypassed or activated. Cameras can be viewed directly from the touchpad. Live view, clips, and event notifications are supported. Doorbell live view will automatically be displayed when the doorbell button is pressed.

Product Features:

  • Compatible with Helix/Connect+ Panel
  • White Color Casing
  • Large 9" by 5.5" footprint to cover unslightly holes in walls
  • Vibrant 7" Android™ tablet display
  • Real-time system status
  • Create scenes
  • Lock and unlock Z-Wave door locks
  • Turn Z-Wave lights on and off
  • Set dimmer level for Z-Wave dimmer switches
  • Open and close Z-Wave garage door openers
  • Control Z-Wave thermostats
  • View and control cameras, answer video doorbell, review clips, set as favorites to the dashboard
  • Provides local control of security and automation functionality
  • Includes WiFi DeviceLink Card
  • Includes wall mount and tabletop stand
  • Encrypted, Connect+ and BAT-Connect enabled, battery-backed WiFi connection
  • 12V direct wire and 110V plug-in options with provided transformer, battery-backed
  • 5 year warranty

Alula RE657WF-R Product Specifications:


  • Wall Dimensions: 5.39in (13.68cm) x 9.15in (23.23cm) x 0.66in (1.68cm)
  • Weight: 1.02lbs (463g)
  • Color: White
  • Pilot Hole for Screw into Wood: 1/8in (3mm)
  • Pilot Hole for Wall Anchor: 3/16in (4.7mm)
  • Mounting Fasteners: #6 screws & 4 wall anchors (included)
  • Operating Temperature: 32°F to 120°F (0°C to 49°C)
  • Maximum Humidity: 85% non-condensing relative humidity
  • Battery Life: 4 hours
  • Power Transformer Input: 100-120V AC, 60Hz, .8A
  • Power Transformer Output: 12V DC, 2.0A
  • Power Transformer Part Number: RE012-17
  • Power Converter Input: 8-22V DC
  • Power Converter Output: 5V DC, 3A Max
  • Wireless Range: 300 feet in open air
  • Screen Resolution: 1024 x 600 pixels
  • Screen Size: 7 inches diagonally
  • WiFi DeviceLink: RE926RX Included (only needed for Connect+)
  • Certification: FCC, IC
