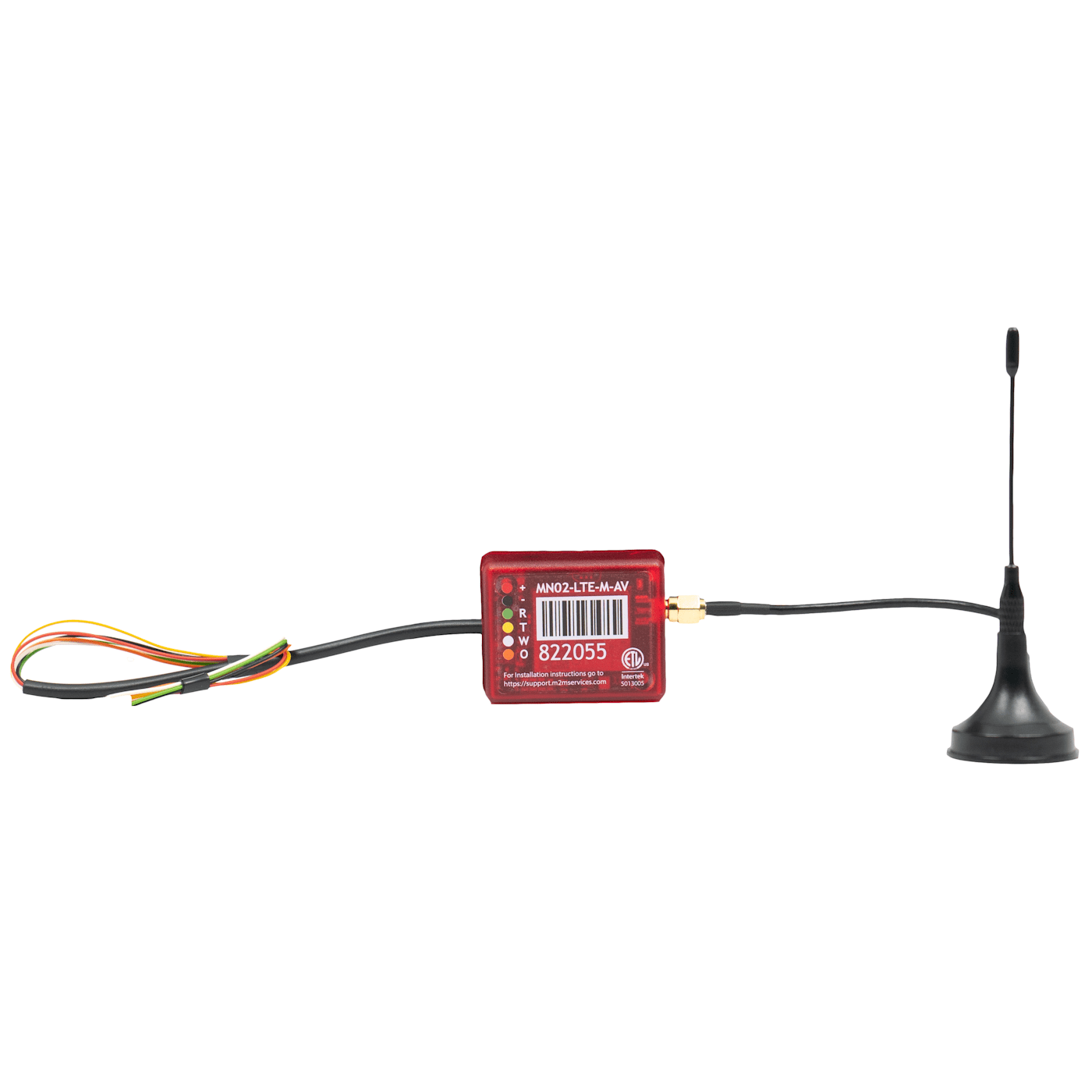

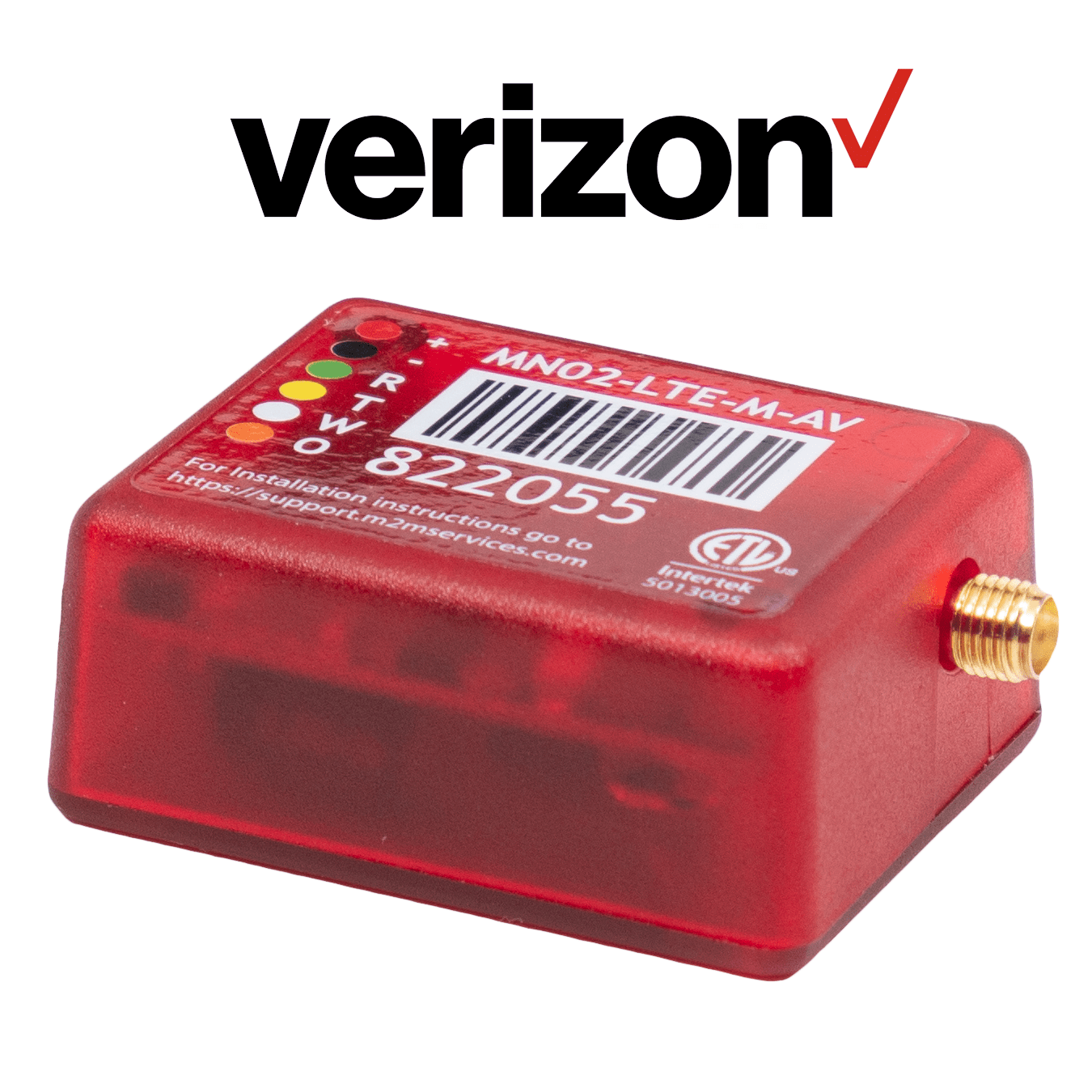

MN02-AV - M2M Universal Multi-Band Cellular Verizon LTE Alarm Communicator (Compatible with Most Panels)

MN02-AV - M2M Universal Multi-Band Cellular Verizon LTE Alarm Communicator (Compatible with Most Panels)
MN02-AV - M2M Universal Multi-Band Cellular Verizon LTE Alarm Communicator (Compatible with Most Panels)
Item# MN02-AV

Average Customer Rating:
Read Review(s) | Write a Review

Please Note: The M2M Services MN02-AV cellular-path alarm communicator has been discontinued and replaced by the MN02-LTE-M-AV model number.

M2M Services MN02-AV Product Description:


The M2M Services MN02-AV is a universal multi-band cellular 5G LTE alarm communicator that is compatible with most existing dial-capture interface panels (DSC, Honeywell and GE Interlogix NX-Series). With future-proof technology, the MN02-AV communicator transmits alarm signals over the Verizon LTE network to the GeoArm central monitoring station.

Likewise, the MN02-AV can be accessed remotely by a GeoArm technician using UDL software (DLS, Compass, DL900) via the RING/TIP connections (using the MN01-RNGR module). So, have peace of mind knowing you are not alone, and this communicator allows for our remote panel programming and full upload/download remote capabilities.

Additionally, the MN02-AV communicator has the ability for end users to remotely control some of the interactive features using the RControl smartphone app (designed for Android/iPhone). Using the app clients can have; remote arm/disarm capabilities, real-time push and email notifications, multiple end users and devices per account, 12 months events history and basic configuration/diagnostics.

In summary, the MN02-AV is an inexpensive option for our DIY clients who have existing security systems and are looking to lower their business or home security bill. This new age M2M Verizon LTE (Long-Term Evolution) communicator, powered by GeoArm, brings faster speeds and greater stability that won't break the bank.

Product Features:

  • Universal Panel Compatibility: Dial-Capture Interface supporting Contact ID, SIA and Pulse 4+2
  • Upload/Download: for selected panels: DSC, Honeywell and NX-Series
  • Remote Arm/Disarm/Stay Arm: of multiple partitions via keybus for selected panels
  • Exceptional Network: SIM supporting Verizon LTE
  • Supervised Connectivity: 10 minute polling of the connection
  • Admin Portal: Online 24/7 device management and real-time status monitoring of all accounts

*If ordered, the M2M cellular radio antenna manufactured in the 10' foot length is subject to product availability.

M2M Services MN02-AV Product Specifications:


  • Dimensions: 1.6 x 1.95 x 1.82 inches
  • Weight with Battery: 1.10 ounces (30 grams) without antenna
  • Multi-Band: CAT-M1 LTE 700/850/1700/1900/2100 MHz cellular communicator
  • ARM11 Processor: 2MB RAM, 7MB Flash
  • Dial Capture Interface: supporting Ademco ContactID, SIA and Pulse 4+2
  • Digital Input: 1
  • Digital Output: 1 (programmable)
  • Supply Voltage: +12 to +17 VDC
  • Battery Voltage: 3.0 VDC (Nominal), 2.2 VDC (Low)
  • Power Consumption: Nominal 15mA, Peak 200 mA
  • Certification(s): UL 985 (Household Fire Warning Systems), UL1023 (Household Burglar Alarm Systems), UL 1610 (Central Station Burglar Alarm Units)

M2M Services MN02-AV Product Documents:


General Information

Product Datasheet - M2M Services MN02-LTE-M-AV Universal Multi-Band Cellular Verizon LTE Alarm Communicator
Installation/Operation Manual - M2M Services MN02-AV Universal Multi-Band Cellular Verizon LTE Alarm Communicator
Quick Installation Manual - M2M Services MN02-AV Universal Multi-Band Cellular Verizon LTE Alarm Communicator

DSC Control Panel Programming and Wiring Guides

How to Programming/Wiring Guide - M2M Services MN02-AV Multi-Band Cellular Verizon LTE Alarm Communicator to the DSC PowerSeries 9045/9047 Control Panel
How to Programming/Wiring Guide - M2M Services MN02-AV Multi-Band Cellular Verizon LTE Alarm Communicator to the DSC Alexor Control Panel
How to Programming/Wiring Guide - M2M Services MN02-AV Multi-Band Cellular Verizon LTE Alarm Communicator to the DSC Impassa Control Panels (SCW9057/SCW9057)
How to Programming/Wiring Guide - M2M Services MN02-AV Multi-Band Cellular Verizon LTE Alarm Communicator to the DSC PowerSeries Neo Control Panels (HS2016/HS2032/HS2064/HS2128)
How to Programming/Wiring Guide - M2M Services MN02-AV Multi-Band Cellular Verizon LTE Alarm Communicator to the DSC PC585 Control Panel
How to Programming/Wiring Guide - M2M Services MN02-AV Multi-Band Cellular Verizon LTE Alarm Communicator to the DSC PowerSeries PC1616/PC1832/PC1864 Control Panels
How to Programming/Wiring Guide - M2M Services MN02-AV Multi-Band Cellular Verizon LTE Alarm Communicator to the DSC PC4020 Maxsys Control Panel
How to Programming/Wiring Guide - M2M Services MN02-AV Multi-Band Cellular Verizon LTE Alarm Communicator to the DSC Power832 PC5010 Control Panel

Honeywell Control Panel Programming and Wiring Guides

How to Programming/Wiring Guide - M2M Services MN02-AV Multi-Band Cellular Verizon LTE Alarm Communicator to the Honeywell FA147C/FA148C Control Panel
How to Programming/Wiring Guide - M2M Services MN02-LTE-M Multi-Band Cellular Verizon LTE Alarm Communicator to the Honeywell FA162 Control Panel
How to Programming/Wiring Guide - M2M Services MN02-LTE-M Multi-Band Cellular Verizon LTE Alarm Communicator to the Honeywell VISTA 10PSIA Control Panel
How to Programming/Wiring Guide - M2M Services MN02-LTE-M Multi-Band Cellular Verizon LTE Alarm Communicator to the Honeywell VISTA 10SE Control Panel
How to Programming/Wiring Guide - M2M Services MN02-LTE-M Multi-Band Cellular Verizon LTE Alarm Communicator to the Honeywell VISTA 15P/20P Control Panel
How to Programming/Wiring Guide - M2M Services MN02-LTE-M Multi-Band Cellular Verizon LTE Alarm Communicator to the Honeywell VISTA 15SE Control Panel
How to Programming/Wiring Guide - M2M Services MN02-LTE-M Multi-Band Cellular Verizon LTE Alarm Communicator to the Honeywell VISTA 20PSIA Control Panel
How to Programming/Wiring Guide - M2M Services MN02-LTE-M Multi-Band Cellular Verizon LTE Alarm Communicator to the Honeywell VISTA 20SE Control Panel
How to Programming/Wiring Guide - M2M Services MN02-LTE-M Multi-Band Cellular Verizon LTE Alarm Communicator to the Honeywell VISTA 21IP Control Panel
How to Programming/Wiring Guide - M2M Services MN02-LTE-M Multi-Band Cellular Verizon LTE Alarm Communicator to the Honeywell VISTA 32FB/128FBP Control Panel
How to Programming/Wiring Guide - M2M Services MN02-LTE-M Multi-Band Cellular Verizon LTE Alarm Communicator to the Honeywell VISTA 50P Control Panel
How to Programming/Wiring Guide - M2M Services MN02-LTE-M Multi-Band Cellular Verizon LTE Alarm Communicator to the Honeywell VISTA 128BP Control Panel
How to Programming/Wiring Guide - M2M Services MN02-LTE-M Multi-Band Cellular Verizon LTE Alarm Communicator to the Honeywell VISTA 128SIA Control Panel

GE Interlogix Control Panel Programming and Wiring Guides

How to Programming/Wiring Guide - M2M Services MN02-LTE-M Multi-Band Cellular Verizon LTE Alarm Communicator to the GE Interlogix Concord 4 Control Panel
How to Programming/Wiring Guide - M2M Services MN02-LTE-M Multi-Band Cellular Verizon LTE Alarm Communicator to the GE Interlogix Concord Express Control Panel
How to Programming/Wiring Guide - M2M Services MN02-LTE-M Multi-Band Cellular Verizon LTE Alarm Communicator to the GE Interlogix NetworX NX-4 Control Panel
How to Programming/Wiring Guide - M2M Services MN02-LTE-M Multi-Band Cellular Verizon LTE Alarm Communicator to the GE Interlogix NetworX NX-6V2 Control Panel
How to Programming/Wiring Guide - M2M Services MN02-LTE-M Multi-Band Cellular Verizon LTE Alarm Communicator to the GE Interlogix NetworX NX-8 Control Panel
How to Programming/Wiring Guide - M2M Services MN02-LTE-M Multi-Band Cellular Verizon LTE Alarm Communicator to the GE Interlogix NetworX NX-8E Control Panel
How to Programming/Wiring Guide - M2M Services MN02-LTE-M Multi-Band Cellular Verizon LTE Alarm Communicator to the GE Interlogix Simon XT Control Panel

Paradox Control Panel Programming and Wiring Guides

How to Programming/Wiring Guide - M2M Services MN02-LTE-M Multi-Band Cellular Verizon LTE Alarm Communicator to the Paradox Digiplex EVO 192 Control Panel
How to Programming/Wiring Guide - M2M Services MN02-LTE-M Multi-Band Cellular Verizon LTE Alarm Communicator to the Paradox Digiplex EVO HD Control Panel
How to Programming/Wiring Guide - M2M Services MN02-LTE-M Multi-Band Cellular Verizon LTE Alarm Communicator to the Paradox SP728/SP738 Control Panel
How to Programming/Wiring Guide - M2M Services MN02-LTE-M Multi-Band Cellular Verizon LTE Alarm Communicator to the Paradox SP1738 Control Panel
How to Programming/Wiring Guide - M2M Services MN02-LTE-M Multi-Band Cellular Verizon LTE Alarm Communicator to the Paradox SP4000 Control Panel
How to Programming/Wiring Guide - M2M Services MN02-LTE-M Multi-Band Cellular Verizon LTE Alarm Communicator to the Paradox SP5500 Control Panel

Napco Control Panel Programming and Wiring Guides

How to Programming/Wiring Guide - M2M Services MN02-LTE-M Multi-Band Cellular Verizon LTE Alarm Communicator to the Napco Gemini GEM 1632 Control Panel

DMP Control Panel Programming and Wiring Guides

How to Programming/Wiring Guide - M2M Services MN02-LTE-M Multi-Band Cellular Verizon LTE Alarm Communicator to the DMP XR20/XR40 Control Panel
How to Programming/Wiring Guide - M2M Services MN02-LTE-M Multi-Band Cellular Verizon LTE Alarm Communicator to the DMP XR150 Control Panel
How to Programming/Wiring Guide - M2M Services MN02-LTE-M Multi-Band Cellular Verizon LTE Alarm Communicator to the DMP XT30D/XT50DN Control Panel

Elk Control Panel Programming and Wiring Guides

How to Programming/Wiring Guide - M2M Services MN02-LTE-M Multi-Band Cellular Verizon LTE Alarm Communicator to the Elk M1 Control Panel
