IQSWH-PG - Qolsys PowerG In-Wall Power and Light Switch

IQSWH-PG - Qolsys PowerG In-Wall Power and Light Switch

Description
Specifications
Compatible

Qolsys IQDMR-PG Product Description:

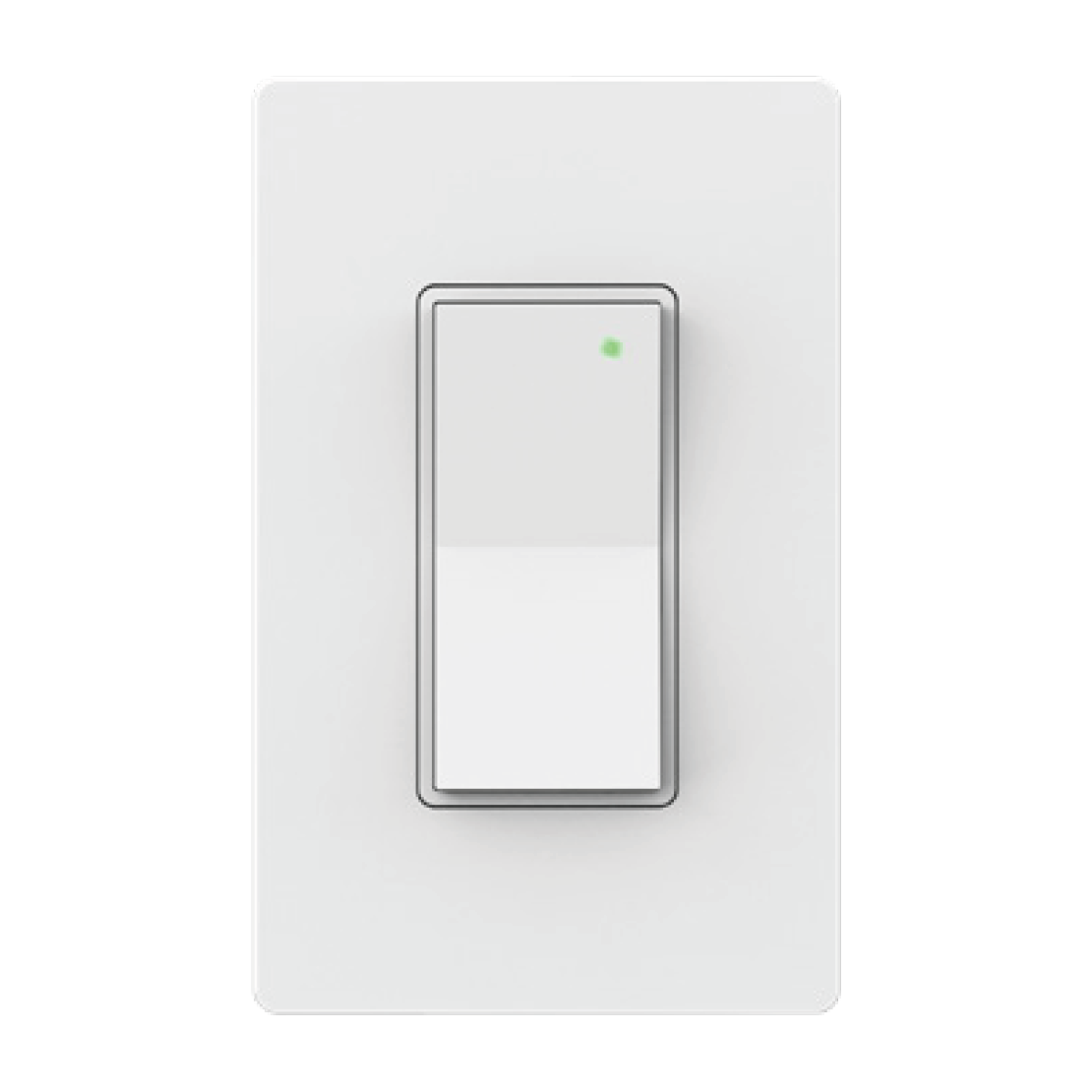

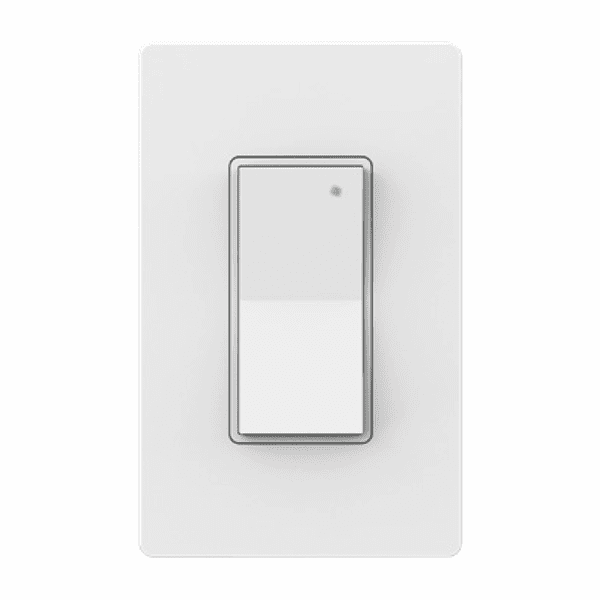

The Qolsys IQ Power Switch PG (Part Number: IQDMR-PG) is a PowerG encrypted smart switch. The IQDMR-PG smart switch is installed to control the power to a specific electrical circuit. The IQDMR-PG smart power switch is typically used to turn lights on and off, but it can also be used to control other electrical devices connected to it. Some devices that are commonly controlled with a IQDMR-PG power switch include; lamps, ceiling lights, fans, televisions, computers, printers, and chargers.

Product Features:

Smart in-wall power switch
Control electrical devices connected to the circuit
Installed into an interior wall
PowerG wireless encrypted radio communications
Compatible with the Alarm.com interactive platform

Qolsys IQSWH-PG Product Specifications:

Frequency: 912-919 MHz
Communication Protocol: PowerG
Maximum Noise: 24dB at 20cm
Maximum Load: Incandescent 600W, CFL/LED 300W
Standby Power Consumption: <1W
Power Supply: 120VAC at 60Hz
Maximum Current: 5A
Wiring: Direct wire connection (wire gauge 16 AWG)
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Storage Temperature: 4°F to 140°F (-20°C to 60°C)
Operating Humidity: 0% to 85% RH (non-condensing)
Dimensions: 4.5" x 2.75" x 1.7" in. (115 x 70 x 44 mm)
Product Weight: 116g
Color: White

Qolsys IQDMR-PG Product Compatibility:

Qolsys IQ Panel 4
Qolsys IQ4 Hub
Qolsys IQ4 NS
Qolsys IQ4 Pro
DSC PowerSeries Neo
DSC PowerSeries Pro
