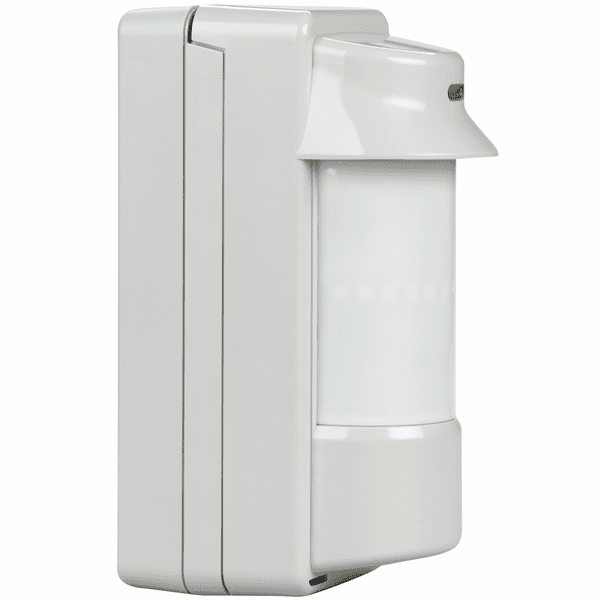

5800PIR-OD - Resideo Honeywell Home Wireless Outdoor Motion Detector

5800PIR-OD - Resideo Honeywell Home Wireless Outdoor Motion Detector
5800PIR-OD - Resideo Honeywell Home Wireless Outdoor Motion Detector
Item# 5800PIR-OD

Please Note: The Honeywell 5800PIR-OD wireless outdoor motion detector has been discontinued and replaced by the 5800PIR-OD2 model number.

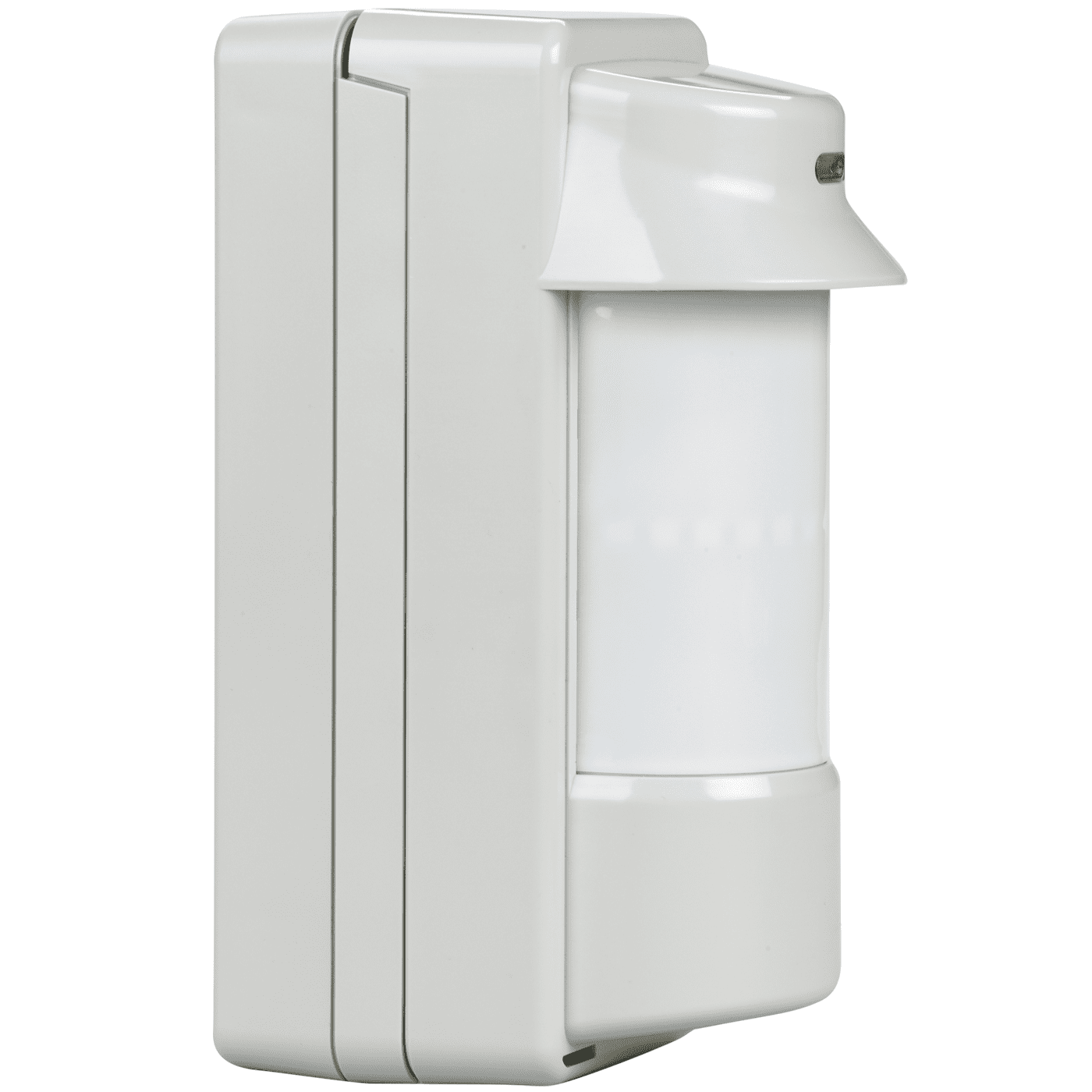

Honeywell 5800PIR-OD Product Description:


The Honeywell 5800PIR-OD is a AA lithium battery powered wireless outdoor motion detector intended for use with Honeywell alarm systems that support 5800-Series wireless devices. The 5800PIR-OD is an ideal solution for outdoor sensing needs in difficult to wire locations avoiding the costs and time to trench hardwired solutions. It's perfect for both residential (activity monitors, e-mail alerts, turning on video cameras) and commercial (protecting copper theft, utility and electrical substations, cellular sites, commercial buildings, car lots and more) applications. The 5800PIR-OD consists of two passive infrared (PIR) sensors that must both be tripped to declare an alarm, providing immunity to false alarm sources, pets and other animals. These sensors can be adjusted to alter the detection range. The transmitter can send alarm, tamper and low battery condition messages to the alarm panel. Protect large areas with the 40' x 30' field of view!

Product Features:

  • Discriminates both large and small animals to reduce false alarms
  • Adjustable range patterns from 7' up to 40'. The 90° pattern can also be adjusted throughout a 180° field of view by simply swiveling the housing
  • Battery saving feature allows you to select five seconds of inactivity (for higher security requirements or where up-to-date information is critical) or 120 seconds of inactivity after alarm (for initial notification)
  • Immune to bright lights from head lamps, sunlight and other light sources that typically generate false detections
  • Full Supervision to monitor for low battery, case tamper and trouble conditions
  • Mounting is simple with the enclosed hardware
  • Built-in tamper switch that can communicate back to the control panel in the event it is removed from the wall
  • Backed by Honeywell's 2-year limited manufacturer's warranty

Honeywell 5800PIR-OD Product Specifications:


  • Dimensions: 3.2" W x 7.8" H x 4.7" D (82 mm x 199 mm x 120 mm)
  • Weight: 81G, [2.9oz] Packaged product = 112G, [4oz]
  • Case Color: White
  • Operating Temperature: -4°F to 122°F (-20°C to 50°C)
  • Relative Humidity: 95&per; max, non-condensing
  • Weatherproof: IP54 compliant
  • Accessories Included: Pole mount kit, screw kit, masking strips
  • Agency Listings: FCC, IC
  • Battery Power (included): Four 1.5V AA lithium batteries
  • Battery Life: 120 second mode = up to four years, 5 second mode = up to 1.5 years
  • Battery Saving Timer: Adjustable to 120 seconds or five seconds
  • Sensitivity: 3.6°F at 2.0 feet/second (2.0°C at 0.6 meters/second)
  • Mounting Height: 2.7 – 4.0 feet (0.8 – 1.2 meters)
  • Mounting Configuration: Wall or pole mount (included)
  • Warm-up Time: Two minutes
  • Detection Speed: 1-5 feet/second (0.3 to 1.5 meters/second)
  • Alarm Period: 2.5 seconds
  • LED Indicator: Enabled during walk test, disabled for normal operation to save battery life
  • Range: Adjustable up to 40 feet (12 meters)
  • Pattern: 90° consisting of 13 zones. The pattern can be adjusted in 15° increments from center up to 45° in either direction
  • Self Test: Internally checks the PIR circuit every 10 minutes and disables the RF supervision signal if six consecutive self tests fail
  • Low Temperature Detection: Fault = < 45°F (7°C) for > 10 to 30 minutes - Restore = > 48°F (9°C) for > 10 to 30 minutes
  • PIR Fields of View: 35' Pet Immune Lens = 102 zones (44 long range, 36 intermediate, 18 lower, four look-down), 60' x 80' lens = 66 zones (44 long range, 12 intermediate, six lower, four look-down), 100' x 20' lens = 16 zones (four long range, four intermediate, four lower, four look-down)
  • Fluorescent Light Filter: 50 Hz or 60 Hz, selectable
  • Approvals/Listings: FCC part 15, Class B verified; IC, ICES-003, Class B verified; C-Tick; CE; SIA-PIR-01 Passive Infrared detector standard features for false alarm immunit, cETLus, UL

Honeywell 5800PIR-OD Product Compatibility:


• 468-6
• L3000-SP
• L5000
• L5000-CN
• L5000-SIA
• L3000
• L3000-CN
• L3000-FR
• L3000-SIA
• LYNXR
• LYNXR-2
• LYNXR-2FR
• LYNXR-2SIA
• LYNXR-EN
• LYNXR-ENSIA
• LYNXR-FR
• LYNXR-I
• LYNXR-ISIA
• LYNXR-ISP
• LYNX
• LYNXR-IFR
• L5100
• L5100-SIA
• L7000
• L5200
• L5200-CN
• L7000-CN
• L7000LA
• 6152RF
• 6162RF
• 5800
• L5210
• L5210-CN
• L5210LA
• LYRIC CONTROLLER
• LYRIC GATEWAY
• LYRIC CONTROLLER CANADA
• FA245RF
• FA270RF
• FA570RF
• RGDRENSIA
• READYGD-R2
• READYGD-REN
• READYGD3000
• READYGD5000
• READYGUARD-R
• FA210RF
• FA260RF
• READYGUARD
• READYGD5100
• READYGD5200
• READYGD7000
• 6150RF
• 6150RFFR
• 5881ENH
• 5881ENHC
• 5881ENL
• 5881ENM
• 6160RF
• 5881H
• 5881L
• 5881M
• 5883H
• 6128RF
