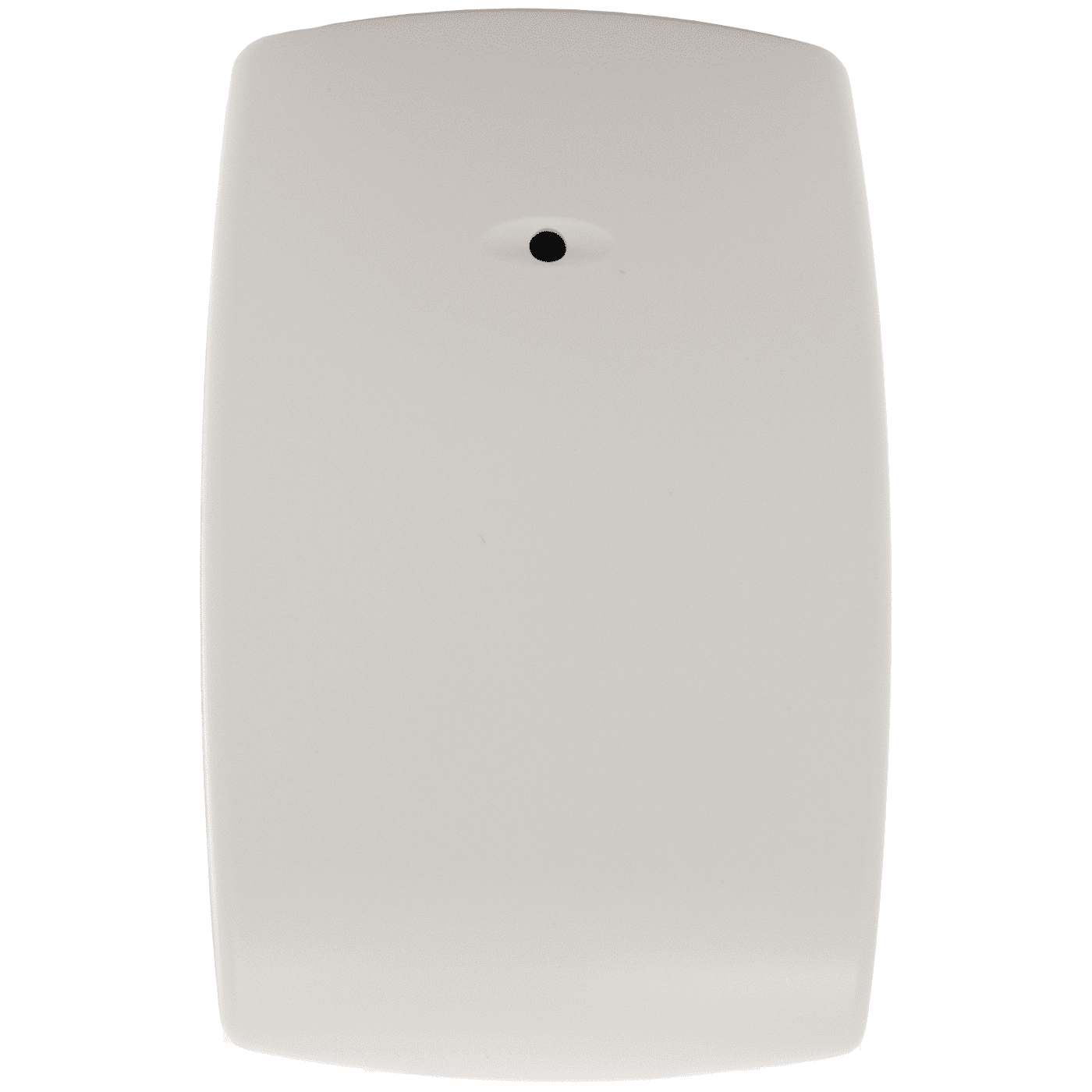

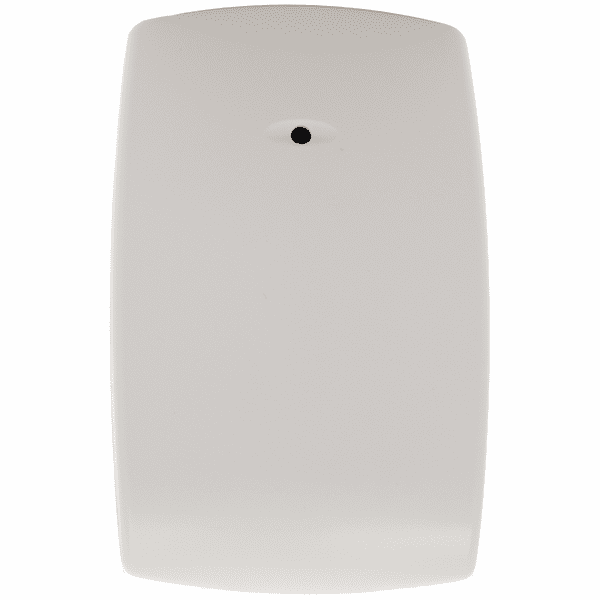

FG1625F - Honeywell Home Hardwired Glassbreak Detector (Flush-Mount, Intellisense, FlexCore)

FG1625F - Honeywell Home Hardwired Glassbreak Detector (Flush-Mount, Intellisense, FlexCore)
FG1625F - Honeywell Home Hardwired Glassbreak Detector (Flush-Mount, Intellisense, FlexCore)
Item# FG1625F

Average Customer Rating:
Read Review(s) | Write a Review

List Price: $87.60
Your Price: $58.40
Availability: In Stock
QTY:

Honeywell Home FG1625F Product Description:


The Honeywell FG1625F is a flush-mount, hardwired glassbreak detector that uses the latest FlexCore technology to provide faster response and increased false alarm immunity. The FG1625F is specifically designed to allow fast, easy installation, while the adjustable sensitivity settings can compensate for the acoustics of any room. Optimum operation can be quickly verified using the FG-701 Glassbreak Simulator. The FG1625F was designed to adequately cover all sizes of single gang electrical boxes.

Flush mount installations are now easier and better looking than ever.

The FG1625F should be used accordingly (Minimum to Maximum);
Plate 3a - 2.4mm (3-32") - 10mm (3/8")
Tempered - 3mm (1-8") - 10mm (3/8")
Laminated - 3mm (1-8") - 14mm (9/16")
Wired - 6mm (1-4") - 6mm (1/4")
Coated 2, 3b - 3mm (1-8") - 6.4mm (1/4")
Sealed - 3mm (1-8") - 6mm (1/4")
Insulating 1, 3b - Maximum overall 7/16"

The minimum size for all types is 28 cm (11") square; glass must be framed in the wall or mounted in a barrier at least 0.9 m (36") wide. The FG1625F is specifically designed to allow a fast, easy installation, while the adjustable sensitivity settings can compensate for the acoustics of any room. Optimum operation can be quickly verified using the FG701 Glassbreak Simulator.

Product Features:

  • FlexCore™ Signal Processor - The FlexCore Signal Processor is an Application-Specific Integrated Circuit (ASIC), which processes sound data in parallel rather than sequentially for faster, more accurate detection decisions. The combination of proven FlexGuard® performance with the speed of FlexCore processing provides unmatched false alarm immunity without compromising detection.
  • Easy Installation and Setup - IntelliSense's patented technology allows remote activation of Test Mode (with simulator). The FG1625F has 45° terminal blocks for easier wiring. A hand-clap feature verifies that the detector is functioning.
  • Selectable Sensitivity - Two dip switches on the FG-1625F make it easy to set the sensitivity to match the acoustics of the room. Four different sensitivity levels are available, ranging from very low to high. The range can then be verified remotely with the FlexGuard FG701 Glassbreak Simulator.
  • Mount the Detector Anywhere - Mounts on any wall, or on the ceiling, with no minimum range and a maximum range of 25’ (7.6m) to the glass. The FG1625F fits a standard single gang electrical box; while the FG1525FD version is specifically designed for double gang boxes.
  • Covers All Glass Types - The FG-1625F works on all glass types, including plate, tempered, laminated, wired, film-coated, and sealed insulating.
  • Multiple Domain Signal Analysis - The FG-1625F performs Multiple Domain Signal Analysis in which time, frequency and amplitude characteristics are evaluated for signal qualification. This enables the detector to accurately discriminate false alarms from true glassbreak events.
  • Enclosed PC Board - The PCB is protected from potential damage during installation.
  • Patented Remote Test Mode - The Patented Remote Test Mode can enable or disable the indicator LEDs using the FG701 Glassbreak Simulator. The unit automatically resets from Test Mode in five minutes.
  • Mounting Locations - The FG1625F can be mounted on the ceiling, opposite wall, adjoining wall, or the same wall as the glass.

Honeywell Home FG1625F Product Specifications:


  • Dimensions (Faceplate): 4.50" x 2.76" (114 mm x 70 mm)
  • Dimensions (Rear Cover): 2.65" H x 1.80" W x 1.20" D (67.4 mm x 45 mm x 30 mm)
  • Color: White high impact ABS plastic housing
  • Weight: Product Only: 3.1oz (87g); | Packaged Product: 4.7oz (133g)
  • Operating Temperature: 14°F to 120°F (-10°C to 50°C)
  • Storage Temperature: -4°F to 122°F (-20°C to 50°C)
  • Range: 25' (7.6 m) maximum, omnidirectional. Range is adjustable; no minimum range
  • Alarm Relay: Form A, 125 mA max, 25 VDC max
  • Tamper Switch: Cover removal tamper 25mA max, 24VDC max
  • Alarm Duration: Five seconds (unaffected by alarm LED latching)
  • ESD Immunity: 10kV discharges of either polarity to exposed surfaces
  • Power Requirements: 6-18VDC; 12mA typical at 12VDC, 22mA max. | AC Ripple: 4V peak to peak at nominal 12VDC
  • RFI Immunity: 30V/m, 10 MHz -1000 MHz
  • Approvals and Listings: FCC and IC verified, UL Listed, ULC Listed
  • Accessories: FG701 P/N 0-000-701-0 Glassbreak Simulator
  • FlexGuard® Glassbreak Simulator/Tester: The sound of breaking glass is digitally simulated by the FG701. The FG701 is compatible for testing all Honeywell brand glassbreak detectors. Honeywell highly recommends testing glassbreak detectors before final installation.

Product Reviews

Other customers rated this item:
4.5 out of 5 stars
WRITE A REVIEW(Reviews are subject to approval)
  Love this product and the price,
Posted By:
11 people found this review helpful

Perfect option for a inexpensive wired glassbreak detector swap-out for an older DSC PowerSeries security system we have at our office. I installed it using the same wires that my previous glassbreak used, and all-in-all it looks really good on the wall, and seems to be operating as expected.

Was this rating helpful to you?   Yes   No
  Good Glass Break ,
Posted By:
5 people found this review helpful

Very good glass break detection, easy to install and program. Very pleased with the amount I paid for this item and the fast shipping.



Was this rating helpful to you?   Yes   No
   I highly recommend the product!,
Posted By:
5 people found this review helpful

Each one I purchased works perfectly. I tested the glassbreak sensor with the FG701 glassbreak simulator once I finished my security system installation to ensure it would work. Once finished installing, I armed the system and hit the FG701 simulator (purchased separately) which triggered a really loud alarm through the sirens in the property. The alarm could be easily heard inside/outside my 3,000 square foot house!

Was this rating helpful to you?   Yes   No
