EXD-0 - Telguard Cellular Antenna (w/Integral Ground Plane Connector)

EXD-0  - Telguard Cellular Antenna (w/Integral Ground Plane Connector)
EXD-0 - Telguard Cellular Antenna (w/Integral Ground Plane Connector)
Item# EXD-0
List Price: $239.40
Your Price: $159.60

Telular EXD-0 Product Description:


The Telular EXD-0 is a cellular antenna with integral ground plane connector that supports all Telular Telguard digital cellular alarm communicators.

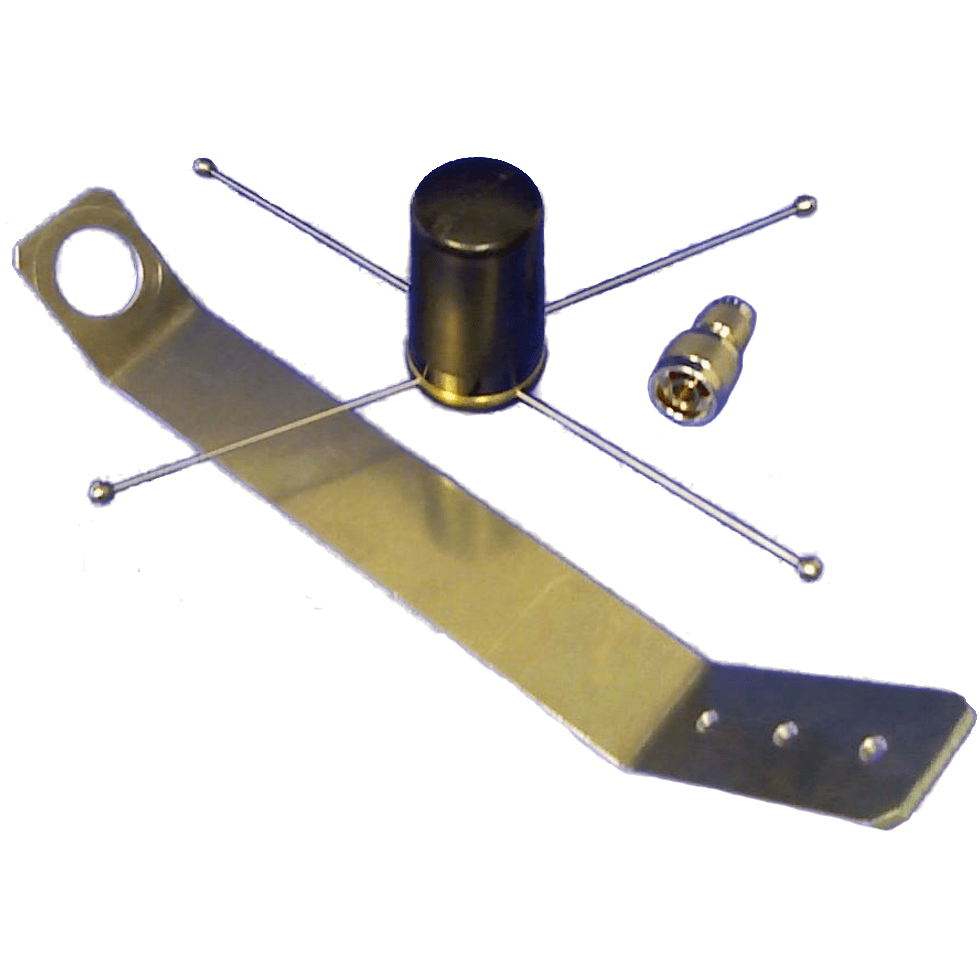

Kit Includes:

  • Cellular antenna w/integral radial ground plane
  • Connector
  • Mounting bracket

Telular EXD-0 Specifications:


  • Gain: Cellular 850MHz Class 3 (200 mW) PCS band 1900MHz Class 2 (200 mW)
  • Frequency Range: 821-896 MHz, 1850-1990 MHz
  • VSWR: <1.8:170 MHz
  • Polarization: Vertical
  • Pattern: Omni-Directional
  • Maximum Power: 150 watts, 100 watts NGP
  • Bandwidth: >70 MHz
  • Impedance: 50 ohms
  • Height: 2.5"
  • Weight: 0.25 lb.
  • Material: High Heat ABS
  • Operating Temperature: -40°C to 85°C
