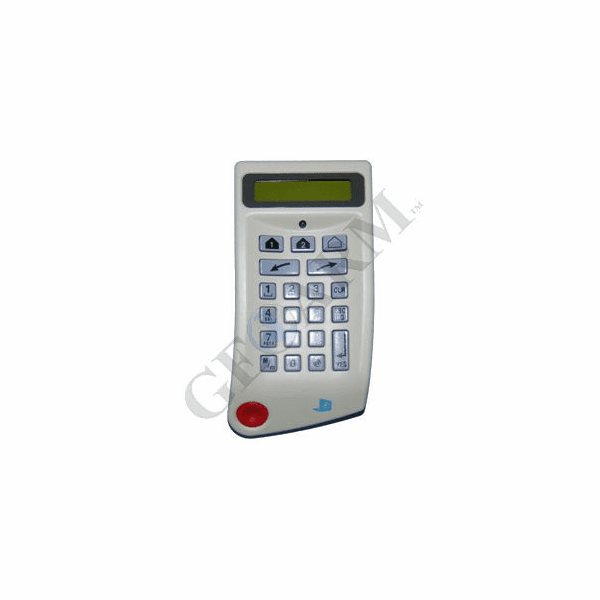

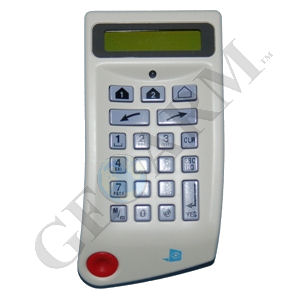

CMA601 - Videofied Wireless Vertical Alarm Keypad

CMA601 - Videofied Wireless Vertical Alarm Keypad
Please Note: The Videofied CMA601 wireless alarm keypad has been discontinued without replacement.

CMA601 Videofied Wireless Alarm Keypad Product Description:
The keypad consists of a liquid-crystal (LCD) display with two 16-character lines, multi-function push buttons, a panic alarm button, and a built-in sounder. The LCD display provides easy to read messages and goes out after 30 seconds of no keypad activity, to conserve battery power. Pressing any button (except the panic alarm button) restores the display. Backlighting is controlled automatically, based on lighting in the keypad location.

The keypad is powered by (3) AA cell 3.6V lithium batteries, which are included with this item. Typical battery life is four years under normal conditions. The CMA601 comes backed by RSI Video Technologies' 2 year limited warranty.

CMA601 Videofied Wireless Alarm Keypad Free Custom Programming:
Custom security system programming is FREE for all GeoArm monitored clients.

CMA601 Videofied Wireless Alarm Keypad

Physical Data
Material ABS-ULVO
Dimensions (L x W x D) 177 x 95 x 37 (mm) or 7 x 3.75 x 1.5 (in)
Weight 255g/9oz (without batteries)
Electrical Data
Power Requirements (3) 3.6V Batteries
Battery Type Lithium LS14500
Battery Life Up to 4 Years
RF Technology SView
Radio Type Spread Spectrum Bidirectional RF
Operating Frequency 868/915/920 MHz
Transmission Security AES Algorithm Encryption
Supervision Polled Signal Every 8 Minutes
Antenna Integrated
Tamper Detection Wall and Cover Tampered
Display Type Liquid-crystal (LCD)
Display Size Two Lines, 16-Characters Each
Display Backlighting Automatic
Built-In Sounder Emits Entry/Exit Delay Beeps, Alarms
Panic Button One (can be disabled)
Operating Temperature 0/+40C (32/104F)
Maximum Relative Humidity 70%, Non-Condensing
Approvals FCC (CMA601)
Keypad/Base (1) screw secures keypad to base;
(3) screws secure keypad base to mounting surface

CMA601 Videofied Wireless Alarm Keypad PDFs for Additional Information:
Specification Sheet for Videofied Wireless Keypad (CMA601)
Installation Guide for Videofied Wireless Keypad (CMA601)
Description of Videofied's Advanced Wireless RF Technology
