CDMA-L57 - Honeywell Cellular CDMA Alarm Communicator (for LYNX Touch L5210/L7000 Control Panels)

CDMA-L57 - Honeywell Cellular CDMA Alarm Communicator (for LYNX Touch L5210/L7000 Control Panels)
CDMA-L57 - Honeywell Cellular CDMA Alarm Communicator (for LYNX Touch L5210/L7000 Control Panels)
Item# CDMA-L57

Average Customer Rating:
Read Review(s) | Write a Review

Please Note: The Honeywell CDMA-L57 communicator has been discontinued without replacement.

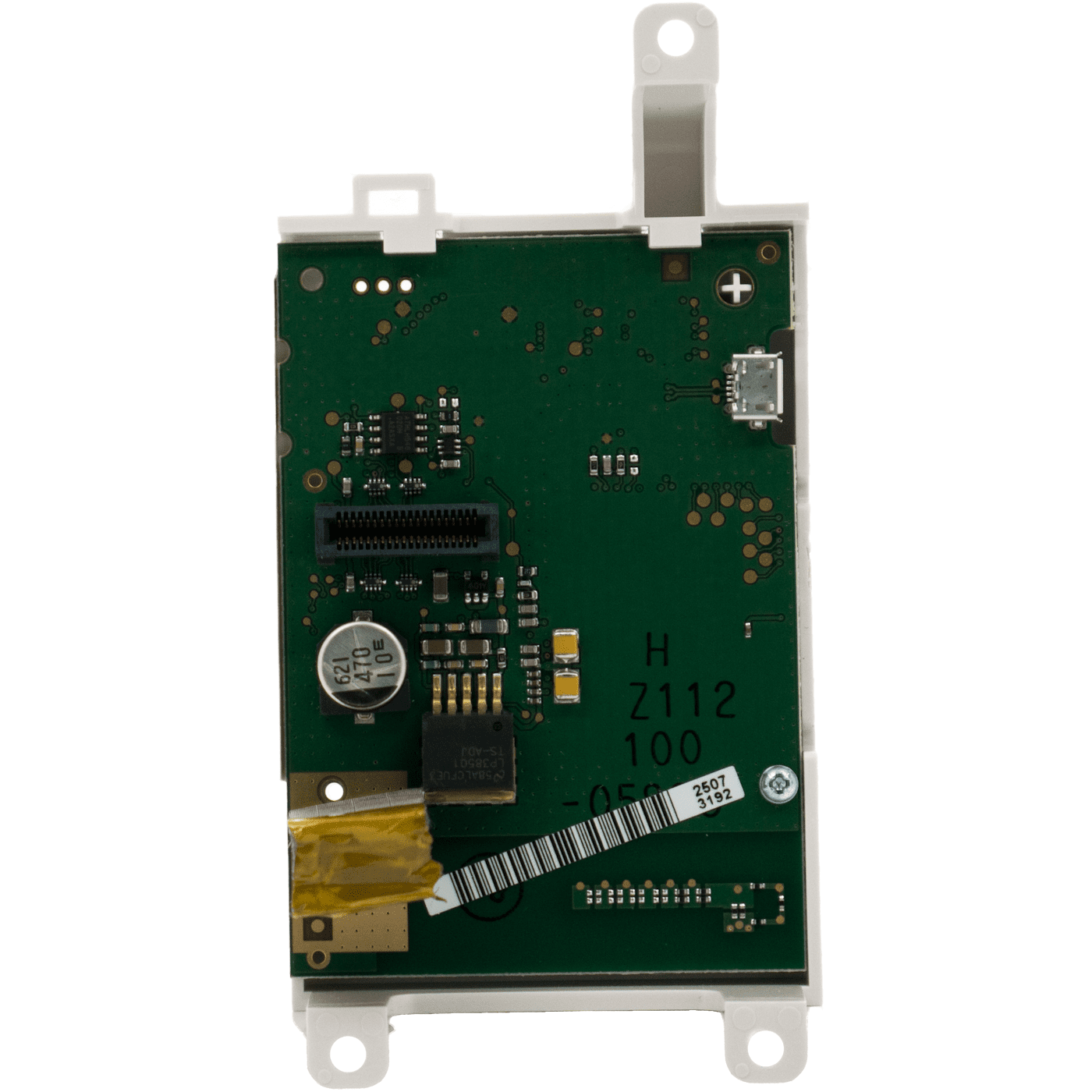

Honeywell CDMA-L57 Alarm Communicator:


The Honeywell CDMA-L57 is an optional communication module intended for use with L5210/L7000 LynxTouch Series controls, providing cellular communication with the Alarmnet network for backup delivery of alarm and other messages to the GEOARM monitoring central station. The module also supports voice communications between the control panel and the GeoArm central station following an alarm condition. The CDMA-L57 cellular communications module transmits signals via the CDMA 1X RTT network.

The CDMA-L57 is the precise AlarmNet cellular CDMA communicator for communications over the Verizon® Network. The CDMA-L57 was designed for the Honeywell LYNX Touch L5210 and L7000 wireless control panels. Honeywell is focused on providing the best alarm communication solutions for the security industry. Alternative communication methods are critical in the marketplace due to VoIP, migration from POTS and global growth of digital networks. The Honeywell CDMA-L57 communicator offers cellular solutions with full data reporting and uploading/downloading for the Honeywell LYNX Touch L5210/L7000 control panel(s). In addition, with onboard zone inputs and optional dialer capture capability, we're compatible with other manufacturers' security panels as well. Honeywell communication products and control panels combine to make installations faster and easier.

All signals are delivered to Honeywell's AlarmNet® Network Control Center, which routes the information to the GEOARM central station. The state-of-the-art AlarmNet Network Control Center is fully redundant and monitored 24/7. AlarmNet has the ability to route messages using AlarmNet-i and 800 PLUS services, providing true redundancy and multi-path message delivery.

Transmission Protocols
Honeywell's IntelliPath™ Series communicators provide seamless, reliable coverage by automatically choosing the best signal in the area (whether 2G, 3G or 4G) and self-adjusting as necessary. The following wireless communication protocols are supported: Verizon CDMA 1xRTT

Honeywell CDMA-L57 Product Compatibility:


• 7626-12
• 7626-5
• 7626-50HC
• CELL-ANT
• CELL-ANT3DB
• CELL-EXT
• GSM-ANT
• GSM-ANT3DB
• GSM-ANTHB
• GSM-EXT
• GSM3DB25KT
• GSM3DB50KT
• GSM3DBKT
• L7000
• L5200
• L5200-CN
• L7000-CN
• L7000LA
• L5210
• L5210-CN
• L5210LA
• READYGD5200
• READYGD7000
