Sunflower Labs BH1-SYS Product Description:

The Sunflower Labs BH1-SYS Beehive 1 Autonomous Security Drone System is an advanced, fully autonomous aerial surveillance solution designed to provide intelligent, real-time security monitoring for residential, commercial, and industrial environments. This cutting-edge system combines sophisticated AI-driven software with precision-engineered hardware to deliver automated situational awareness without the need for manual drone operation. At the heart of the system is the Bee - a self-charging drone equipped with high-resolution cameras, GPS navigation, and obstacle avoidance sensors. When a potential event is detected by the integrated perimeter sensors or an existing security system, the Bee launches automatically from the Beehive base station to investigate, capturing live aerial footage and providing a real-time view of the situation.

The Beehive 1 (BH1) serves as the central command and charging hub for the drone, offering weatherproof housing, wireless communication, and autonomous launch and landing capabilities. Designed with scalability and reliability in mind, the BH1-SYS integrates seamlessly with existing security platforms, allowing for automated patrol scheduling, geofencing, and secure cloud-based video storage. With its blend of automation, intelligence, and precision, the Sunflower Labs BH1-SYS redefines perimeter protection - delivering proactive security through the power of autonomous flight.

Product Features:

Fully Autonomous Operation - Automatically launches, patrols, and returns to base with no manual control required.
Integrated Beehive Base Station - Weatherproof docking hub for charging, data transfer, and secure storage of the Bee drone.
High-Resolution Aerial Imaging - Captures detailed video and still imagery for real-time and recorded surveillance.
AI-Powered Threat Detection - Uses advanced algorithms to identify unusual activity and trigger automated drone deployment.
Seamless Security Integration - Compatible with leading video management and alarm systems for unified monitoring.
Smart Perimeter Awareness - Responds to motion or sensor alerts with precision flight paths over designated zones.
Cloud-Based Video Access - Securely stores footage and allows remote viewing from desktop or mobile platforms.
Geofenced Flight Zones - Ensures flight boundaries are restricted to authorized property areas for safety and privacy.
Obstacle Avoidance & Navigation - Multi-sensor guidance system for safe and accurate autonomous flight.
Weather-Resistant Design - Built to operate reliably in a range of outdoor conditions year-round.
Low Maintenance Operation - Self-monitoring system with automated diagnostics and software updates.
Scalable System Architecture - Supports expansion with multiple drones and beehives for large or complex properties.

Sunflower Labs BH1-SYS Product Specifications:

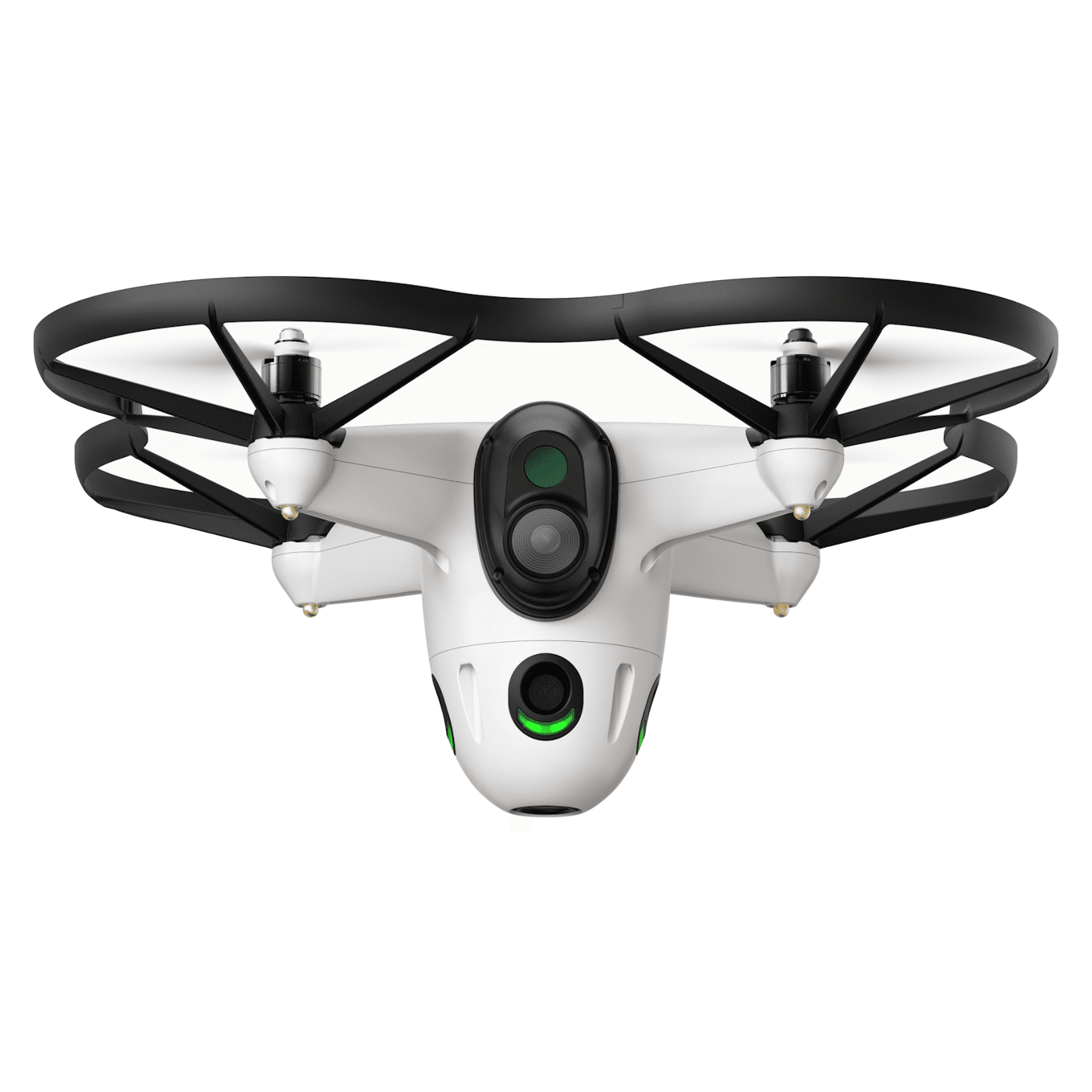

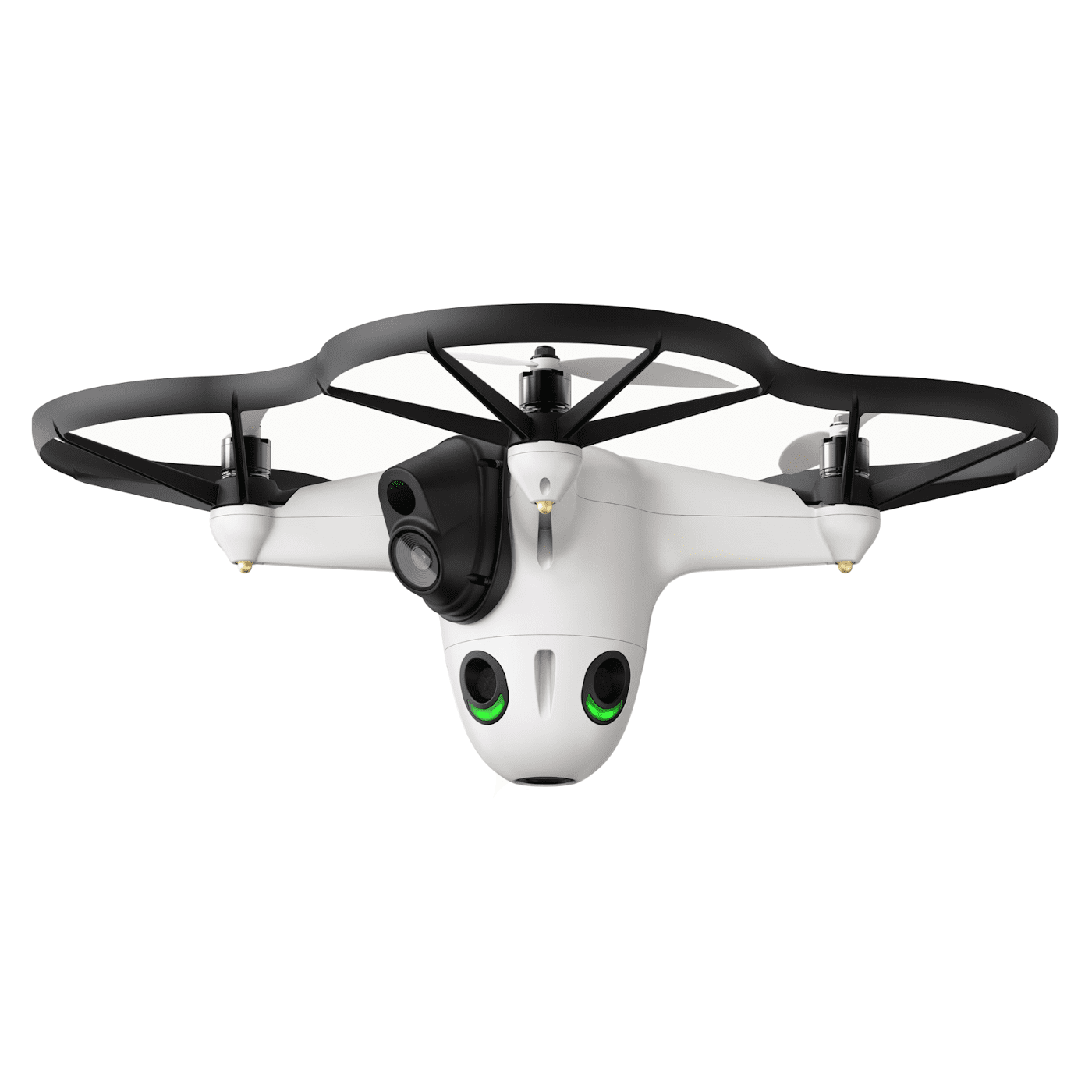

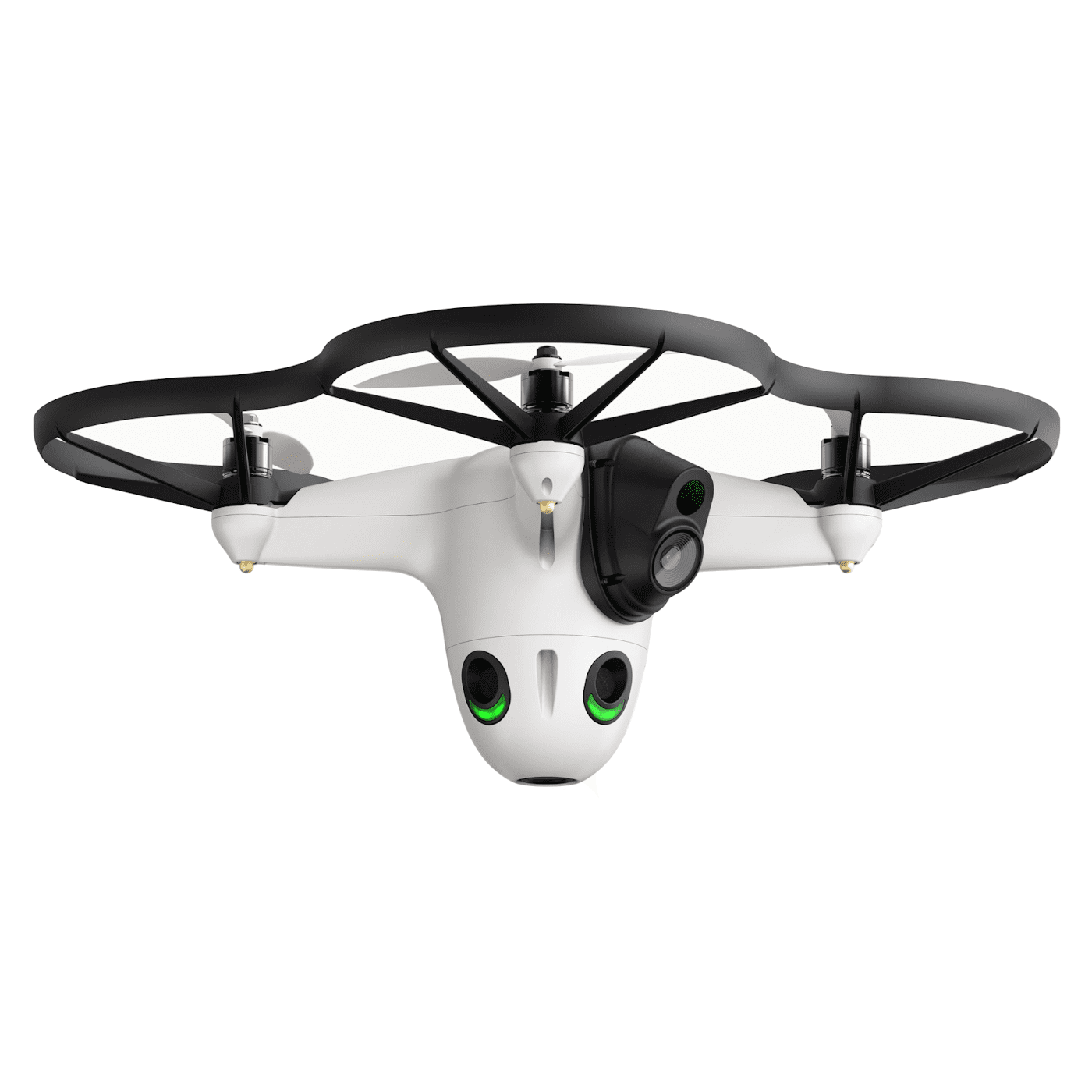

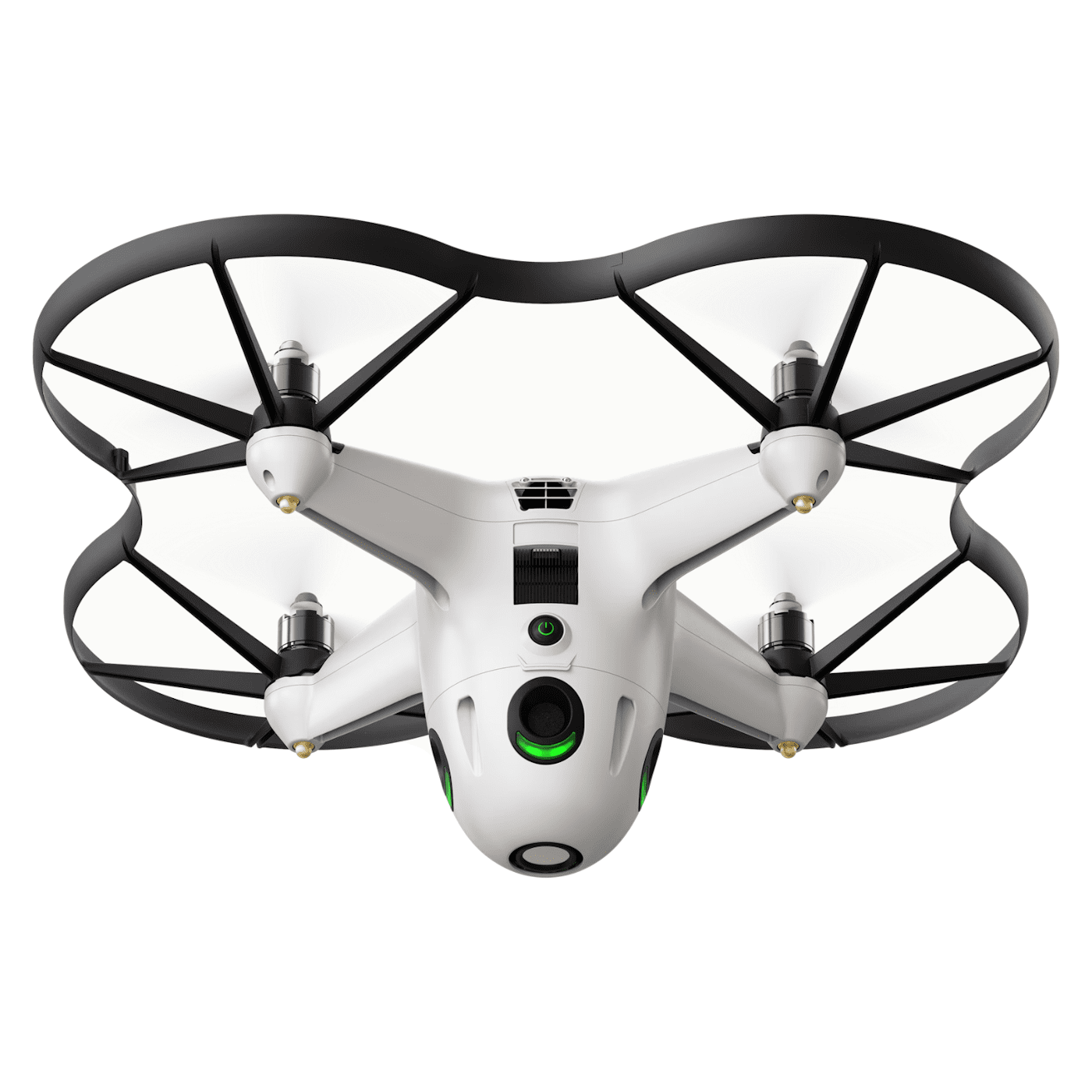

The Bee (Drone):

Weight (battery included) - 1.56 kg
Body dimensions - 28 x 28 x 21 cm
Full size (with propeller guards) - 48 x 48 x 21 cm (57 cm diagonal)
Propeller size - 22.9 cm
Camera / Imaging -
-Field of view: 50° vertical, 100° horizontal
-Resolution: 1920 x 1080 HD @ 25 fps
Cruise speed - 4 m/s (14.5 km/h)
Operational flight time - 15 minutes (plus 5 min safety reserve)
Bandwidth requirement - 3 Mbps (up & down)
Video latency - 250 ms
Obstacle avoidance - range 6 m
Maximum transmission (control/video) distance - 600 m radius
Wind resistance -
-Continuous wind: 9 m/s (32 km/h)
-Gusts: up to 14 m/s (50 km/h)
Hovering accuracy - 30 cm
Operating temperature range - -10°C to +40°C
Battery capacity - 4000 mAh
Recharge time - proportional (approx. 1:2 flight to recharge ratio)

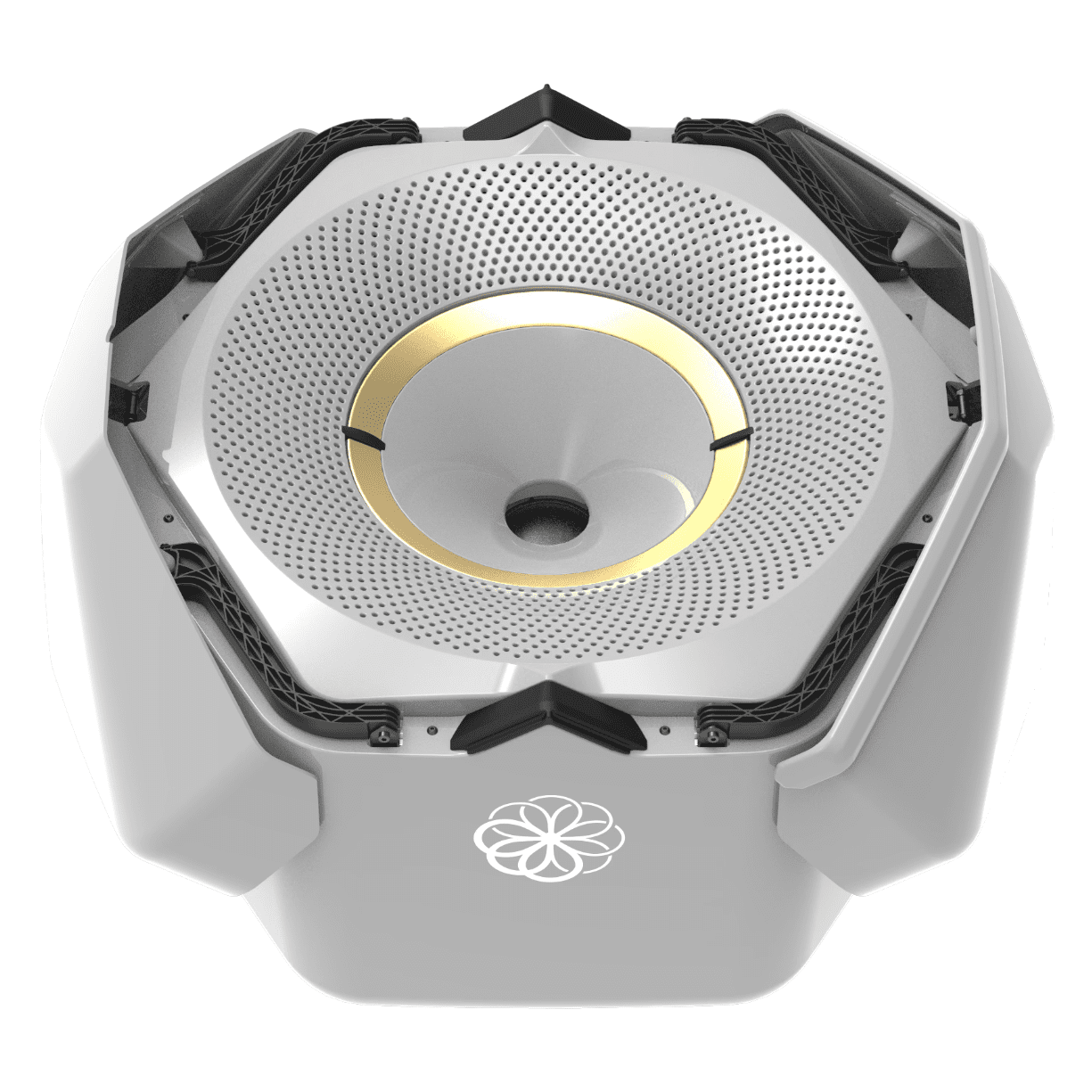

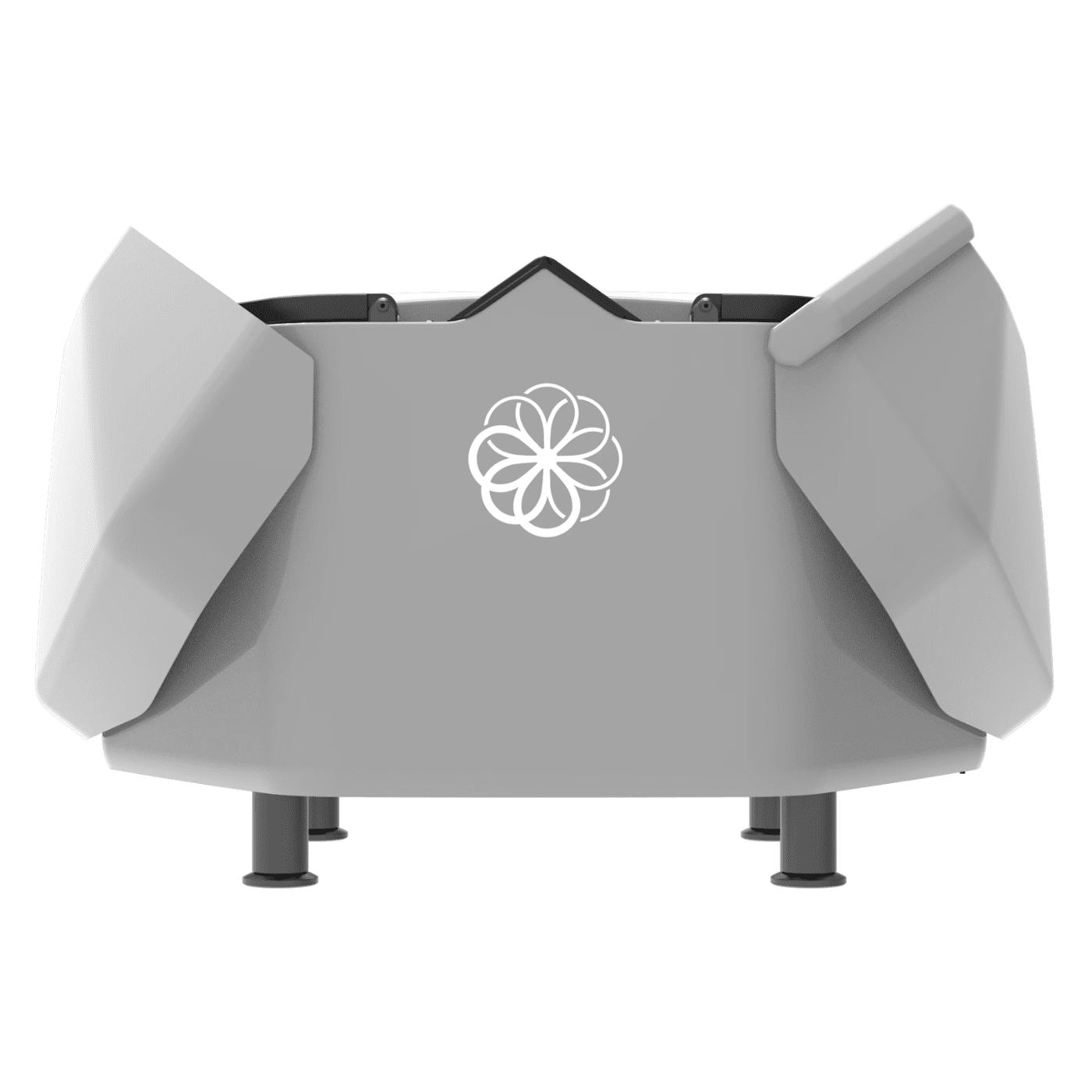

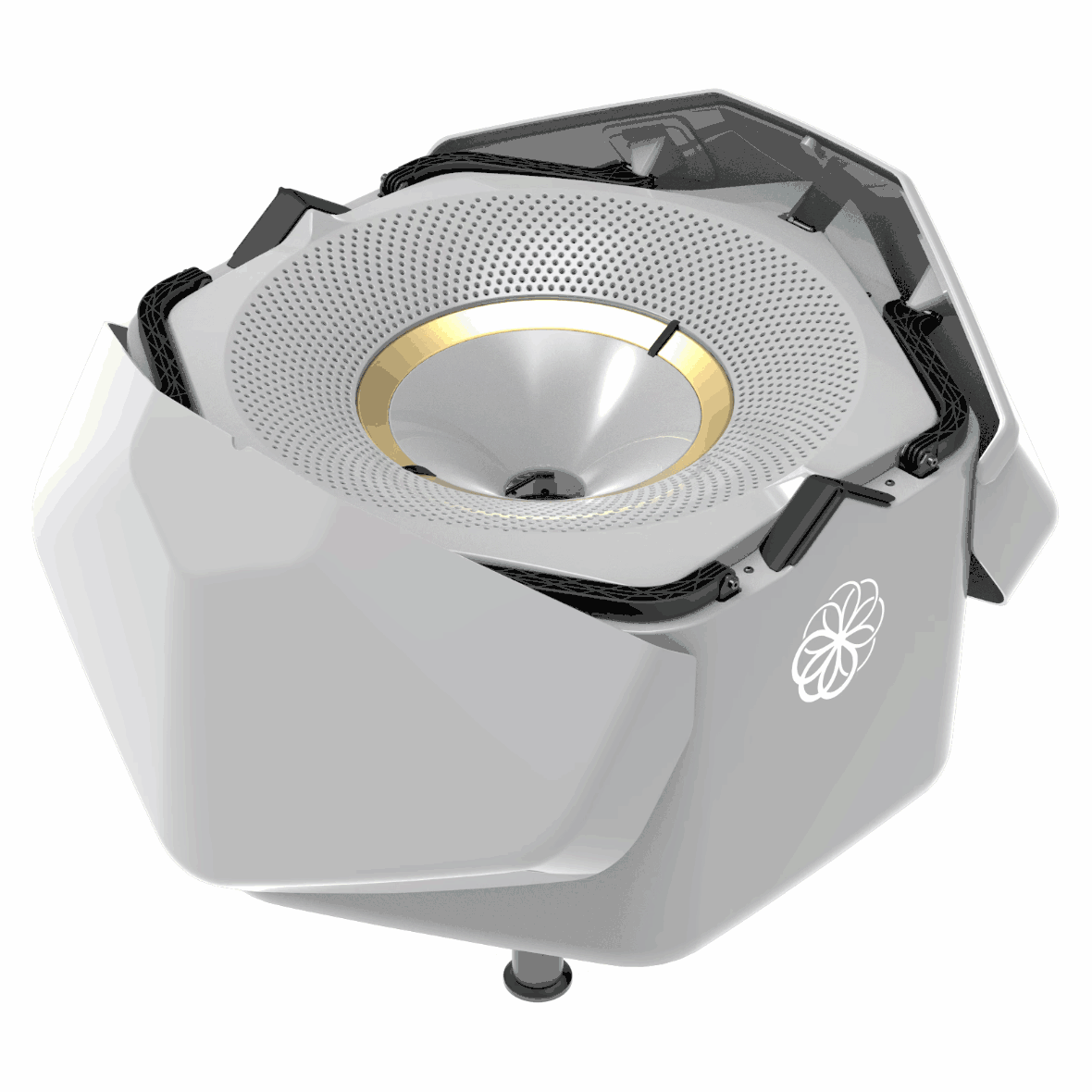

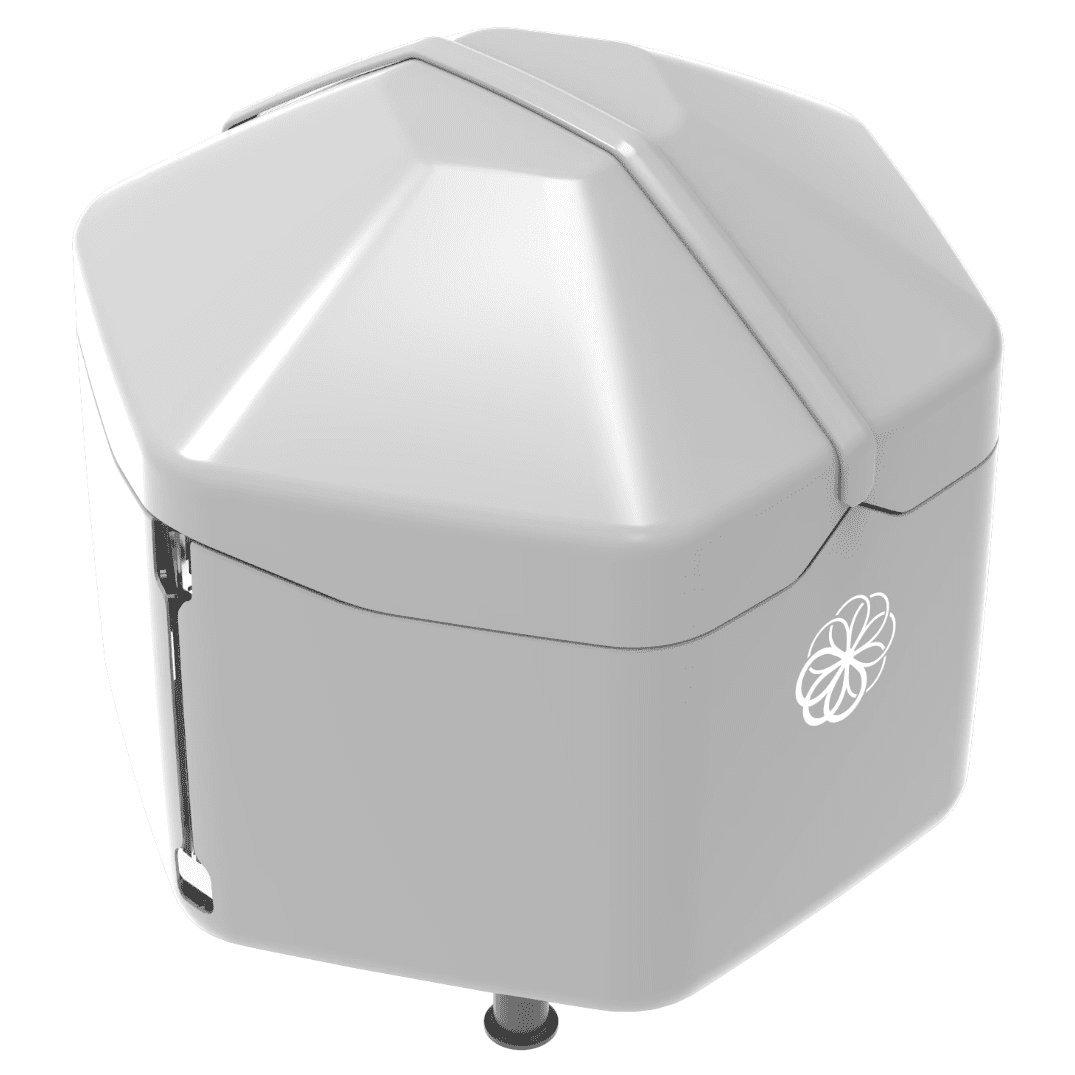

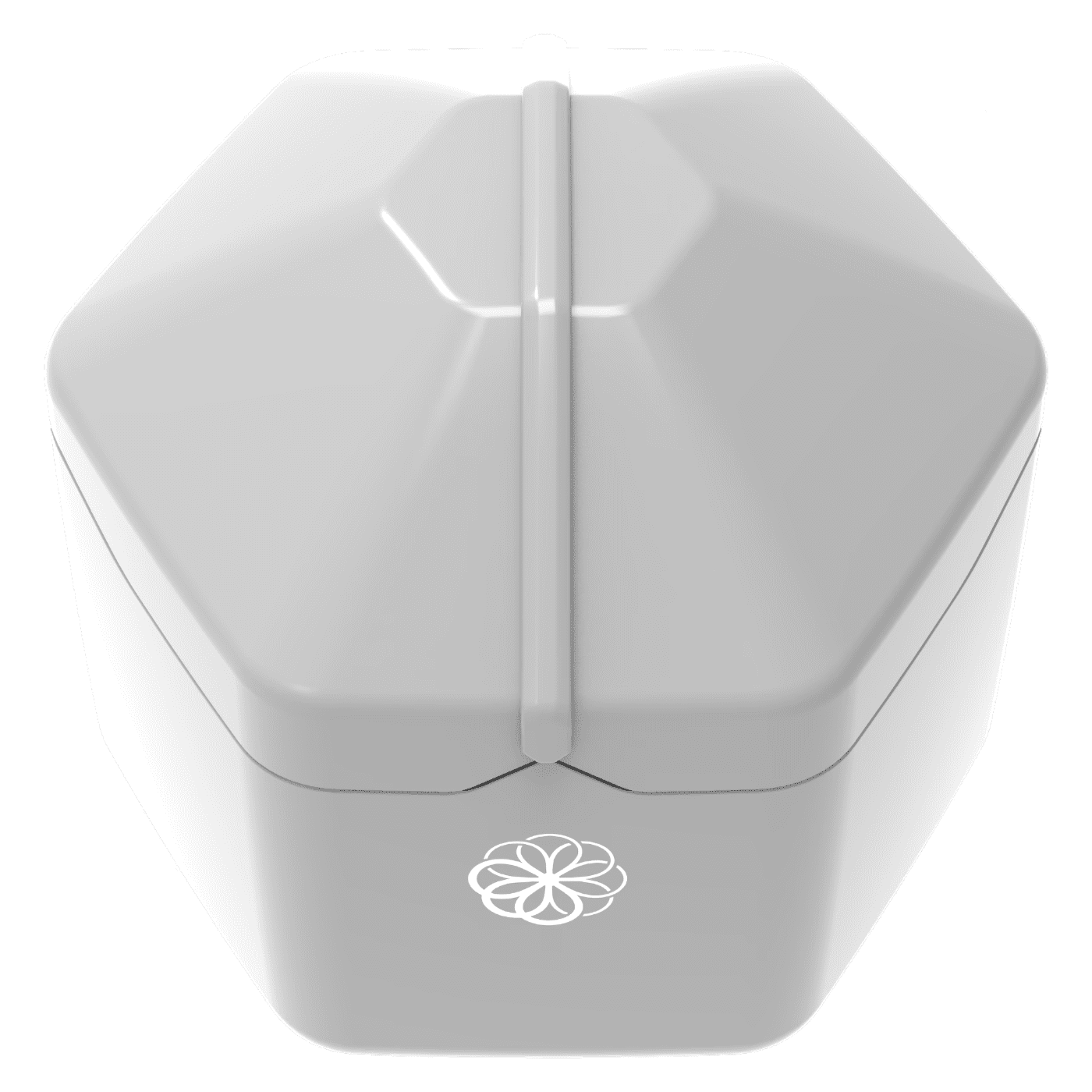

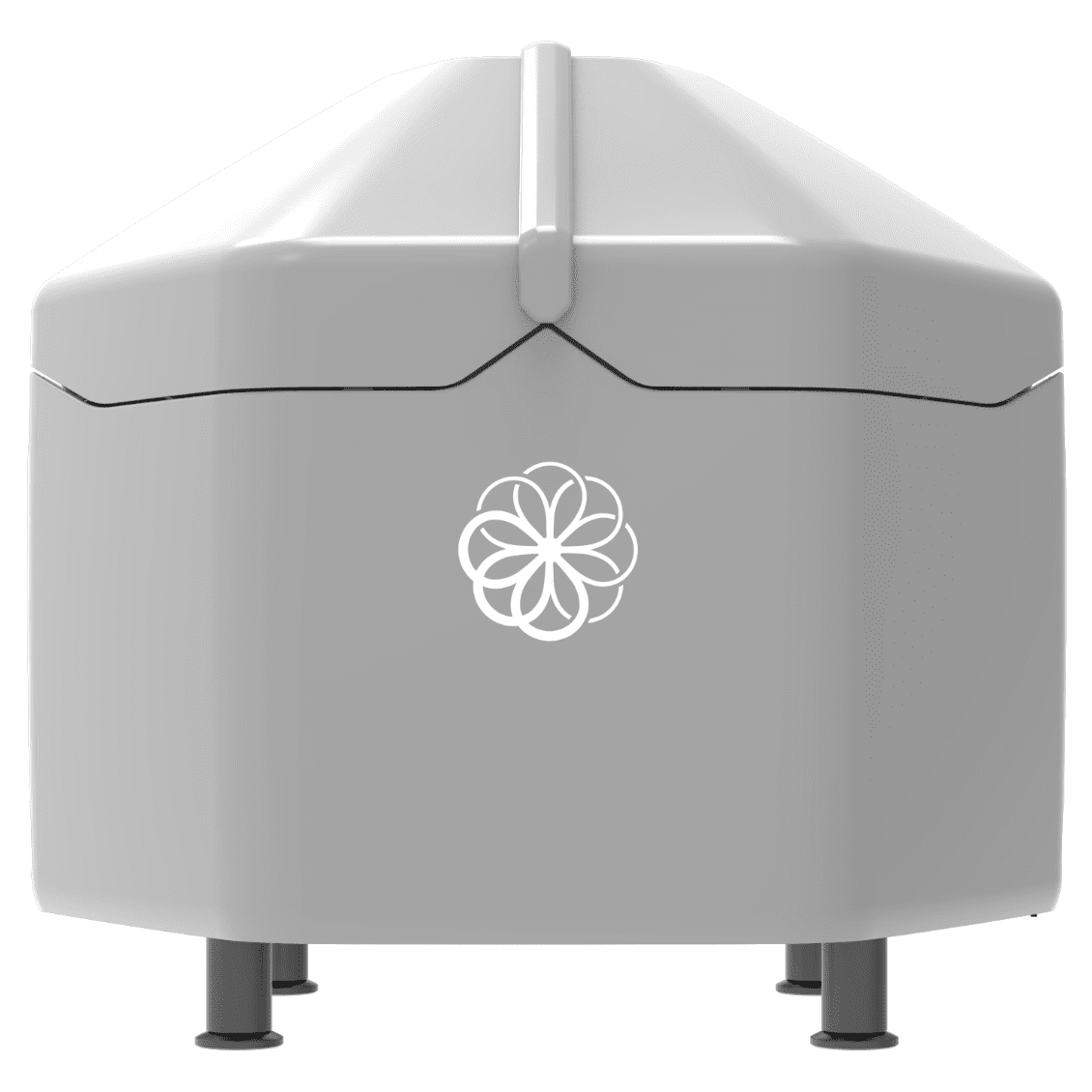

The Hive (Beehive Base Station):

Weight - 35 kg
Runtime on backup battery - 1 hour
Closed dimensions - 86 x 80 x 80 cm
Open (deploying) dimensions - 98 x 80 x 63 cm
Operating temperature range - -20°C to +50°C
Power supply - 110 V or 220 V AC
Connectivity - Ethernet + optional LTE / cellular modem

Sunflower Labs BH1-SYS Product Documents:

Sunflower Labs BH1-SYS How it Works:

1. A flight is triggered - The Bee launches in seconds - automatically via motion sensors or cameras, on a randomized schedule, or manually on demand. However you deploy it, response is immediate.
2. The Bee flies to the destination - The Bee autonomously navigates to the destination, avoiding obstacles and flying in 99% of weather conditions. Routes and key locations are saved for future use.
3. You monitor or take control from anywhere - View live HD video and navigate the Bee from anywhere in the world- no drone flying experience required. Use intuitive tap-to-fly controls or direct the Bee to get a closer look.
4. The Bee detects what's going on - As the Bee surveys your property, it uses advanced AI detection to identify people, vehicles, and animals. It can track movement and follow targets in real-time, giving you eyes where you need them most.
5. The Bee deters unwanted visitors - The Bee's presence alone is a powerful deterrent. As it tracks and follows suspicious targets, intruders often leave before escalation. With instant alerts, you'll know if you need to intervene and what to expect.
6. The Bee returns to the Hive - After completing its mission, the Bee autonomously returns to the Hive. It lands and recharges - ready to deploy again in minutes, rain or shine.
