700FL - Uplink Indoor Security Camera (w/Night Mode)

700FL - Uplink Indoor Security Camera (w/Night Mode)
Please Note: The Uplink 700FL indoor security camera has been discontinued without replacement.

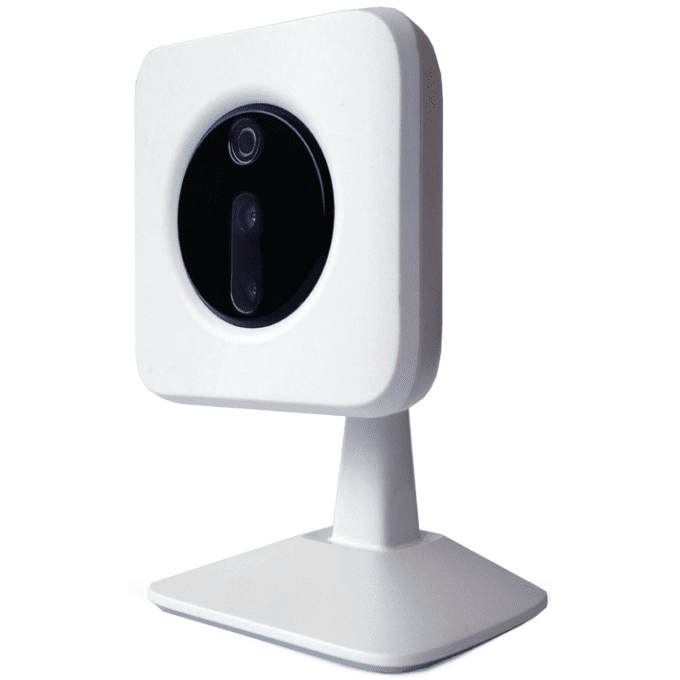

Uplink 700FL Product Description:

The Uplink 700FL is a indoor security camera with night mode. The 700FL is designed for indoor installation. Additionally, the 700FL provides true day vision and night vision. The camera has 10 built-in infrared LEDs for enhancing low-light performance and motion detection to trigger video recording.

Product Features:

  • Compact indoor design
  • 802.11n wireless and 10/100 Base-T
  • Ethernet modes
  • True day vision and night vision
  • Built-in infrared (IR) LEDs for enhancing low light performance
  • Motion detection to trigger video recording

Uplink 700FL Product Specifications:

Product Dimensions (w/Stand): 4.9" H x 3.1" W x 2.6" D (123 x 79 x 67 mm)
Product Weight: 0.9 lb. (0.4 kg)
Image Sensor: 1/5" CMOS sensor
Minimum Illumination: 0 Lux (with IR LED)
Lens: Fixed-focal, aperture F2.0, Diagonal view angle: 61° (horizontal=50°, vertical=39°)
Live View: QVGA (320x240) resolution, MJPEG compression, 3 frames per second
Video Recording: VGA (640x480) resolution, H.264 compression, 5 frames per second
Alarm & Event Management: Video Motion detection
Ethernet: 10/100 Base-T, auto-MDIX
Wireless Network: IEEE802.11b/g/n, WEP64/128 bit, WPA/WPA2 personal, WPS
Connectors: RJ-45 for Ethernet, DC power jack
Processors and Memory: SoC: ARM9, RAM: 128 MB, Flash: 16 MB
LED and Button: LED: Power, network, Button: WPS/Reset
Night Vision: IR LED x 10, Light sensor x 1
Power Supply: 100-240VAC, 50-60Hz (input), 12V, 1A (output)
Power Consumption: 5.8W Max.
Compliance: CE, FCC, UL (power supply)
Operating Temperature: 32° - 104°F (0° - 40°C)
Operating Relative Humidity: 0% - 80% RH (non-condensing)
Storage Temperature: -4° - 158°F (-20° - 70°C)
Storage Relative Humidity: 0% - 90% RH (non-condensing)
Bronze Video Service: Live View
Silver Video Service: Live view + up to 500MB (Typically 7 Days) of storage
Gold Video Service: Live view + up to 2GB (Typically 30 Days) of storage
Package Contents: Camera, power supply, extension cord, lan cable, stand, hardware manual, Uplink video camera quick install guide
