6160PX - Honeywell Home Alphanumeric Programming Hardwired Alarm Keypad with Proximity Reader (for VISTA-Series Control Panels)
Honeywell 6160PX Product Description:

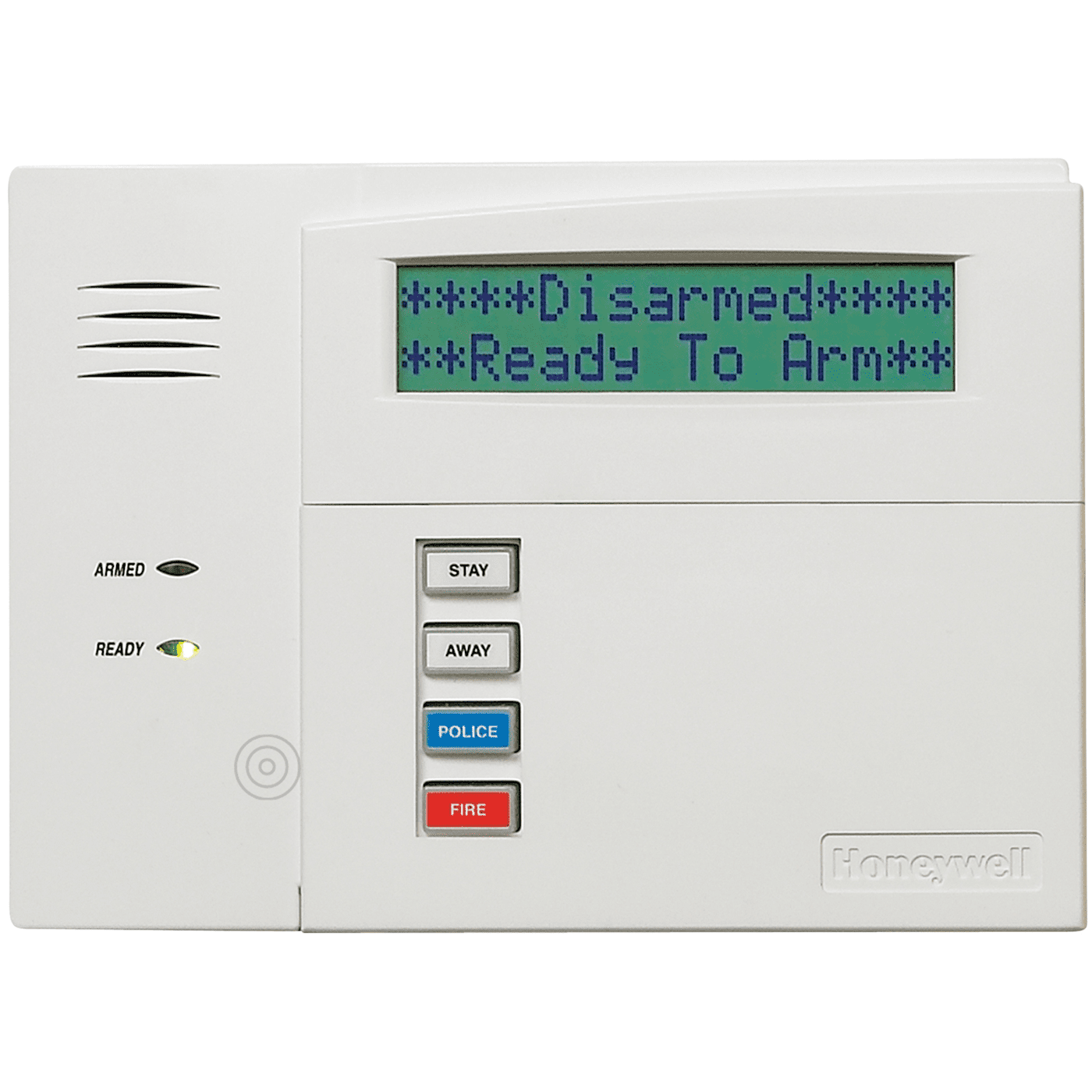

The Honeywell 6160PX is an hardwired adressable alpha programming alarm keypad that is easy to install and simple to use. The 6160PX is a remote keypad with a built-in proximity reader that is intended for use with Honeywell VISTA-Series control panels. The attractive white console blends with any décor and features a contoured, removable door that conceals illuminated soft-touch keys. The 6160PX alarm keypad also features a new larger and brighter 32-character display with easy-to-read plan-English status messages. The oversized function keys are easily accessed even when the keypad door is closed, and can be programmed for fire, burglary, personal emergencies and other operations. Colored self-adhesive labels are included. This keypad does allow you to program a security system, as it has an alphanumeric screen display.
The 6160PX keypad display is backlit when any key is pressed and times out after 30-45 seconds. Permanent display backlighting is an option on some controls (refer to the control panel's instructions for details). However, the backlight on the keys is always on for easy visibility and cannot be disabled. A basic sounder is built in to the keypad and no external sounder is necessary.
The 6160PX can be armed away or disarmed with a single swipe of the proximity tag, making operation effortless while reducing false alarms. Prox keypad can be installed in hardwired or wireless installations. The built in Prox reader has it's own ECP address separate from the keypad address. It is for use with prox tags. Two prox tags comes with the keypad. Each prox tag is enrolled as a "user" in the alarm system by programming the last four digits of the tag's serial number as the user code. The Prox Reader uses an additional keypad address, which must be enabled at the control panel (see control panel installation instructions for allowable keypad addresses). The Prox Tags in two colors, black (PROXTG-BK) and gray (PROXTG-GY). The Prox Tags will only arm and disarm one partition. The Prox Reader cannot be used to perform global arming operations. Keeping in mind that the partition used for the Keypad, Prox Reader, and user security code must be the same.
Product Features:
- Dimensions: 5-5/16"H x 7-3/8"W x 1-3/16"D (135mm x 190mm x 30mm)
- Operating Current: 165mA (ARMED LED lit, LCD backlight and sounder on) reduces to 40mA when panel is operating in standby mode (backlight off)
- Operating Temperature: 32°F - 122°F (0°C - 50°C)
- Operating Voltage: 12Vdc from control panel
- Compatibility: Fully compatible with all addressable VISTA controls
- Large, easy-to-use keypad
- Integrated Proximity Reader
- Two lightweight tags included with user code already incorporated
- 2-line Alpha display
- 32-Character display
- Built-in Sounder (speaker)
- Speaker with audible beeps to indicate system status, entry/exit delays and other alarm situations
- Zones and system events displayed in plain English
- No confusing blinking lights
- Keys continuously backlit for greater visibility
- LED indicators for Armed and Ready-to-Arm
- Supervised by control panel (if supported)
- Four programmable function keys
- Arming (armed away) and disarming functions
- System functions clearly labeled
- Functions performed by just entering security code plus command
- White with removable door, blends with any decor
Honeywell 6160PX Product Documents:
• Installation Guide for Honeywell Alpha Programming Keypad w/Prox Reader (6160PX)
• User Guide for Honeywell Alpha Programming Keypad w/Prox Reader (6160PX)
• Data Sheet for Honeywell Alpha Programming Keypad w/Prox Reader (6160PX)
• End User Sell Sheet for Honeywell Alpha Programming Keypad w/Prox Reader (6160PX)
Honeywell 6160PX Product Compatibility:
• PROXTG-BK
• PROXTG-GY
• FA168C-GP
• FA168C-CN
• FA1670CT
• FA1700CT
• FA130CPSIA
• FA130CP
• V128FBP-9
• VISTA-15PCN
• V128BPTSIA
• V128FBPN
• VISTA-15
• VISTA-15PSIA
• VISTA-20P
• VISTA-20PCN
• VISTA-20PS
• VISTA-20PSIA
• VISTA-21IP
• VISTA-21IPSIA
• VISTA-250BP
• VISTA-250BPE
• VISTA-250BPT
• VISTA-32FB
• VISTA-40
• VISTA-48LA
• VISTA-50EX
• VISTA-50P
• V250FBP-9
• VISTA-10P
• VISTA-10PSIA
• VISTA-128B
• VISTA-128BP
• VISTA-128BPE
• VISTA-128BPT
• VISTA-128FB
• VISTA-128SIA
• VISTA-128SIAE
• V32FB-9
• 5140XM
• VISTA-128BCN
• 4140XMPT
• V250FBPT
• V32FBPT
• VISTA-20PUL
• V128FBPT
• FA1660C
• FA168CPS
• FA1660CE
• FA1660CT
• FA1670C-9
• FA148CP
• FA148CPSIA
• FA1600C
• FA168CPS-CN
• FA148CP-CN
• FA168C
• FA1700C
• FA1700C-9
• FA168CPSSIA
