4590 - Uplink Cellular Alarm Communicator (for Interlogix Simon XT/XTi Control Panels)

4590 - Uplink Cellular Alarm Communicator (for Interlogix Simon XT/XTi Control Panels)
Please Note: The Uplink 4590 Simon XT/XTi cellular alarm communicator has been discontinued without replacement.

Uplink 4590 Product Description:


The Uplink 4550-CF is a cellular alarm communicator for the Interlogix Simon XT and XTi wireless control panels. The Uplink 4590 module expands the capabilities of the Simon XT/XTi panel to transmit real-time alarm events to the GeoArm central station over GSM cellular networks.

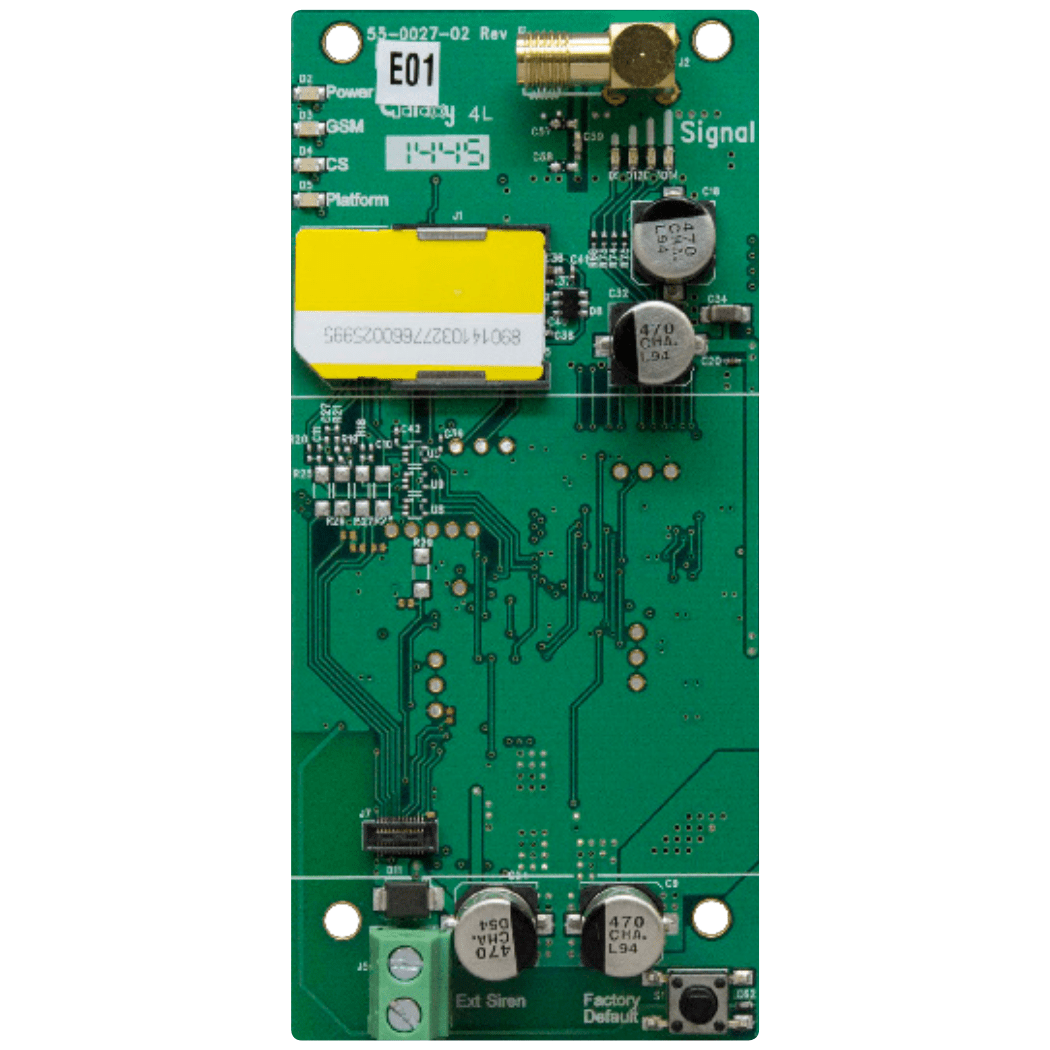

The Uplink 4590 mounts directly onto the Interlogix Simon XT/XTi panel motherboard, allowing dealers to remotely configure and manage the panel. Uplink 4590 supports Uplink® Remote to provide remote arming and disarming of alarm systems from any internet enabled computer or smartphone.

Product Features:

  • Supports Simon XT and XTi systems using Contact ID
  • Report all panel events
  • Add and modify user and installer codes
  • Assign sensor groups and configure zone types
  • View panel and zone status
  • Program keypad zones with alpha text
  • Set clock
  • Access history log
  • Install in minutes with complete end-to-end signal verification
  • Programmable periodic test intervals
  • Uplink Remote for interactive control and end-user notifications

Uplink 4590 Product Specifications:


Product Dimensions: 2.0" x 4.0" x 0.5"
Power: Supplied by panel
Current: 230mA nominal, 2A peak
Operating Temperature: 32° - 104°F (0° - 40°C)
Storage Temperature: 0° - 122°F (-17° - 50°C)
Humidity: 0% - 90% relative humidity (non- condensing)

Q & A's : Uplink 4590 Cellular Alarm Communicator (for Interlogix Simon XT/XTi Panels)
