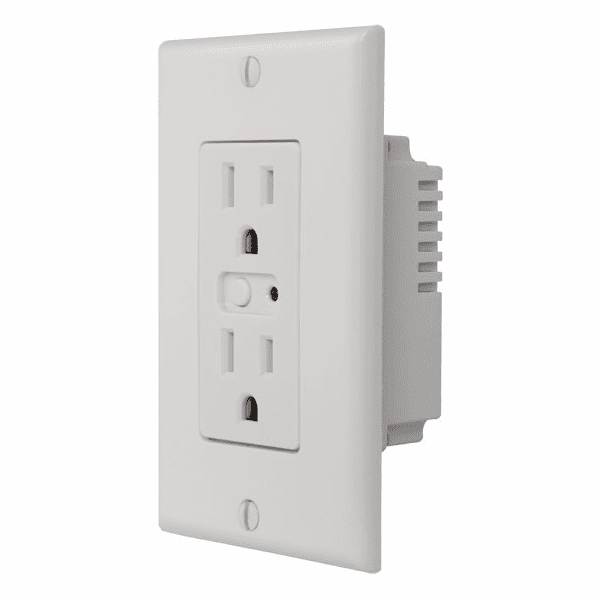

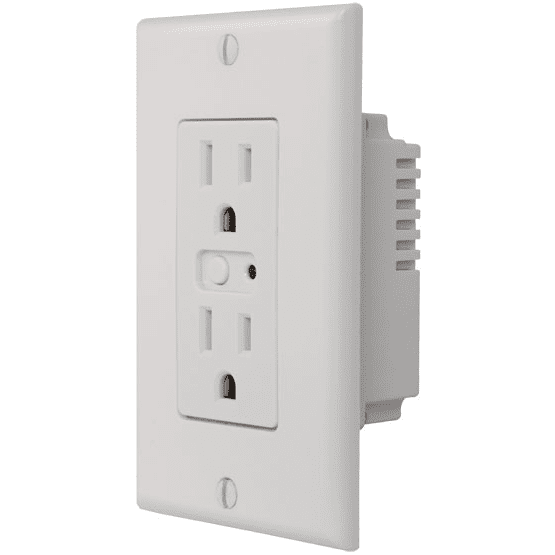

2GIG-WO15Z-1 - Wireless Z-Wave Single Wall Outlet

2GIG-WO15Z-1 - Wireless Z-Wave Single Wall Outlet
Please Note: The 2GIG-WO15Z-1 wireless Z-Wave single wall outlet has been discontinued without replacement.

2GIG-WO15Z-1 Product Description:


The 2GIG-WO15Z-1 is a Single Wall Outlet that is wired in place of a standard duplex receptacle. This device allows remote ON/OFF control of loads connected to the bottom outlet (the other outlet remains powered at all times). A button on the face of the 2GIG-WO15Z-1 receptacle is used to add the module to the wireless network and be controlled from the wireless controller. This Outlet integrates with other Nortek Security and Control Z-Wave enabled products, and can also act as a wireless repeater to ensure that commands intended for another device in the network are received (useful when a device would otherwise be out of radio range). With the wireless controller, the WO15Z-1 receptacle can be included in groups that operate at the same time (a group can be a single module), and in scenes that set a lighting mood.

2008 National Electric Code Compliance: The 2008 NEC requires that all new installations of single and multi-family homes install tamper-resistant outlets. The WO15Z-1 is fully compliant with this code.

Product Features:

  • Tamper resistant as required by 2008 National Electric Code for new and renovated dwellings
  • Z-Wave compatible
  • Network wide inclusion
  • Scene: Command class
  • Security beaming
  • Requires a Neutral

2GIG-WO15Z-1 Product Specifications:


  • Maximum Load Resistive: 15 amps (1800 watts) max., 120 VAC
  • Maximum Load Motor: 1/2 H.P. maximum, 120 VAC
  • Maximum Load Incandescent: 600W maximum, 120 VAC
  • Signal (Frequency): 908.42 MHz
  • Range: Up to 100 feet between the wireless controller and/or the closest Z-Wave device
  • Power Input: 120VAC, 60Hz
