2GIG-TAKE1e-345 - 2GIG Wired to Wireless eSeries Super Switch Converter Module

2GIG-TAKE1e-345 - 2GIG Wired-to-Wireless eSeries Super Switch Converter Module
2GIG-TAKE1e-345 - 2GIG Wired-to-Wireless eSeries Super Switch Converter Module
Item# 2GIG-TAKE1e-345
List Price: $95.61
Your Price: $63.74
Availability: In Stock
QTY:

2GIG-TAKE1e-345 Product Description:

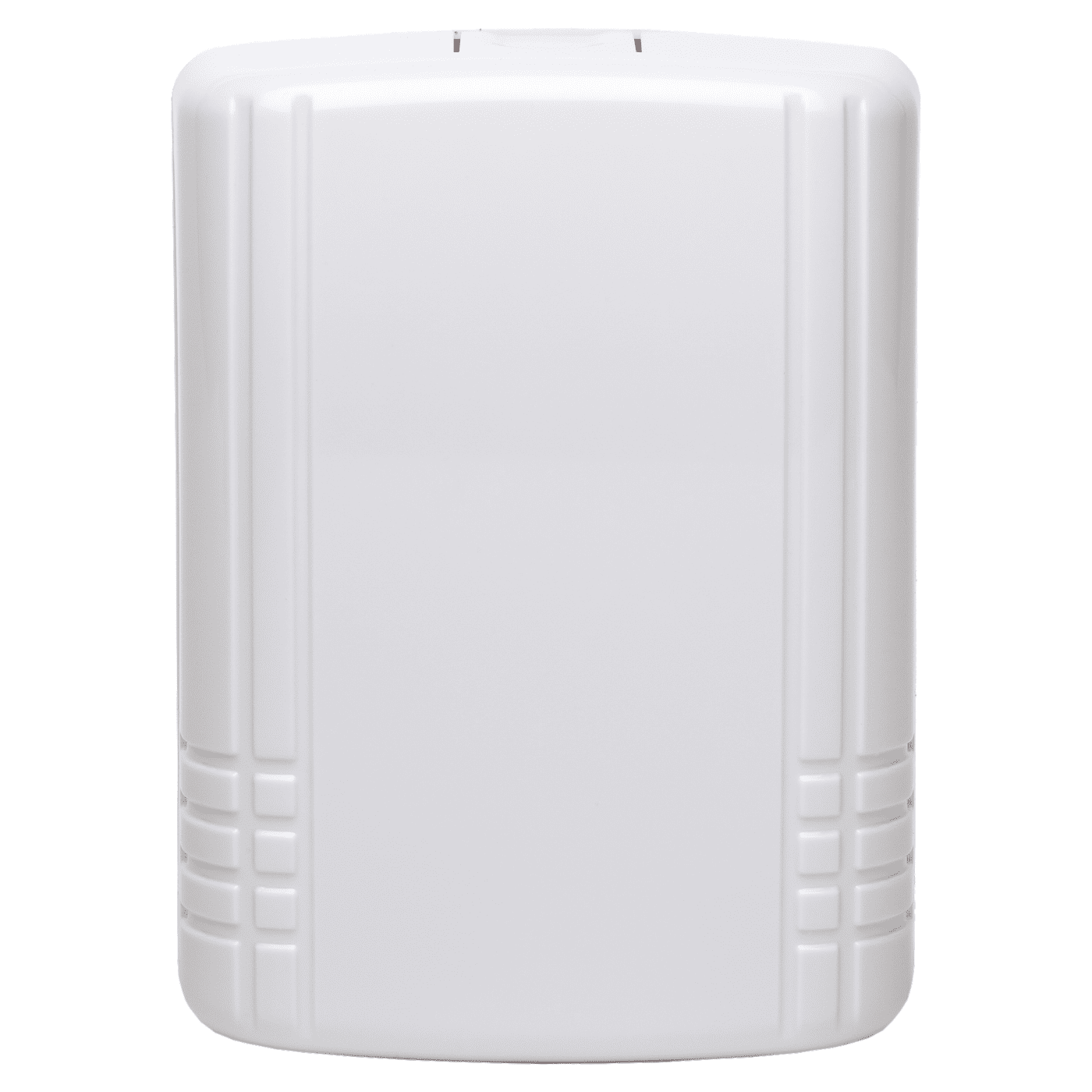

The 2GIG-TAKE1e-345 is a wireless super switch takeover module that boosts wireless capabilities and coverts 8 hardwired zones into 8 wireless zones. The 2GIG-TAKE1e-345 is an encrypted wired-to-wireless converter module that allows you to use existing hardwired security sensors with 2GIG GC2e, GC3e or EDGE wireless control panels. The module is to be mounted next to the existing control panel where the hardwired zones are connected. All of the zones on the super switch act as supervised wireless zones has a 350 feet wireless signal range, and is very easy to install.

Please note, that if the control panel has been removed then a 12?volt power supply with battery backup is required (not supplied).

Product Features:

  • Each module can convert 8 hardwire zones into 8 wireless zones (dry contacts only)
  • Stack multiple Takeover Modules on one 2GIG eSeries security system
  • Needs to use existing hardwired system or separate power supply (12-volt)
  • Not used in every installation; only used when converting hardwire system from another manufacturer
  • ETL Listed

2GIG-TAKE1e-345 Product Specifications:


  • Wireless Signal Range: 350 ft, open air, with 2GIG Wireless Control Panel
  • Code Outputs: For each of 8 serialized zones: Fault; Restore; Tamper; Low Battery
  • Transmitter Frequency: 345.00 MHz (crystal controlled)
  • Transmitter Frequency Tolerance: ±15kHz
  • Transmitter Bandwidth: 24kHz
  • Modulation Type: Amplitude Shift Keying?On/Off Keying (ASK?OOK)
  • Unique ID Codes: Over one (1) million different code combinations
  • Supervisory Interval: 70 minutes
  • Peak Field Strength: Typical 50,000 uV/m at 3m
  • Sensor Dimensions (L x W x H): 3.54 x 2.56 x 1.13 in. (9.0 x 6.5 x 2.9 cm)
  • Weight (including battery and bracket): 2.85 oz. (80.8 g)
  • Housing Material: ABS Plastic
  • Color: White
  • Operating Temperature Limits: 32°F (0°C) to 120°F (49°C)
  • Relative Humidity: 5-95% Non-Condensing
  • Operating Voltage: 9?16 volts DC, 50mA

2GIG-TAKE1e-345 Product Includes:


  • (1) Takeover Module
  • (1) Mounting Plate
  • (2) Philips head screws
  • (2) Plastic drywall anchors
