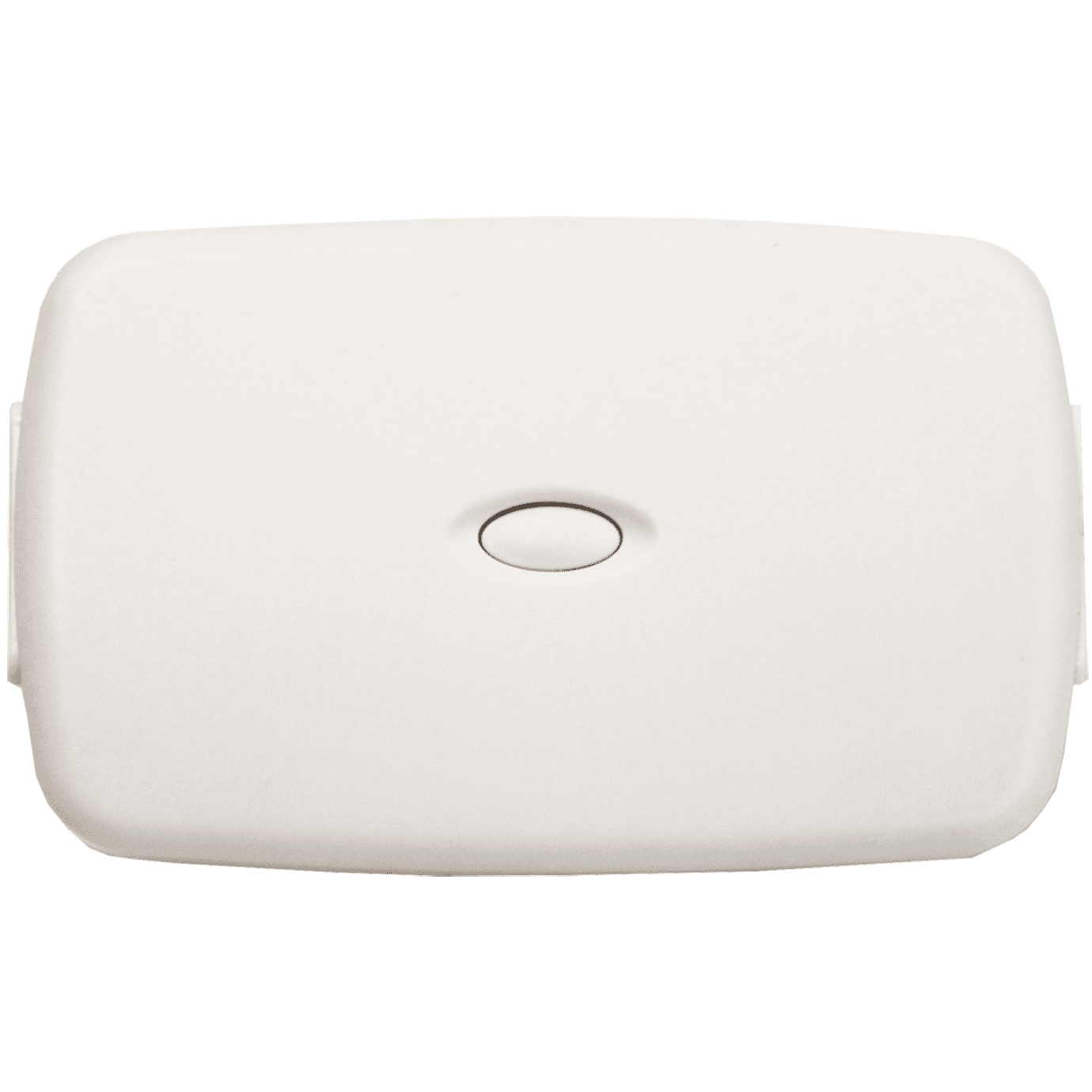

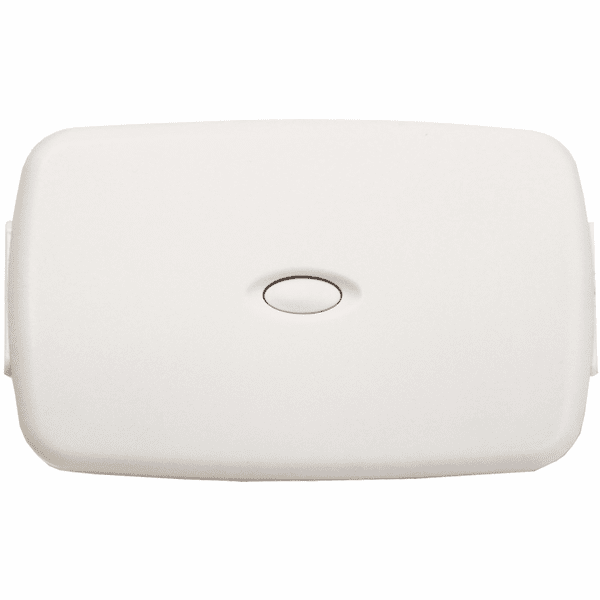

2GIG-PS15Z-2 - Plug-In Z-Wave Appliance Module

2GIG-PS15Z-2 - Plug-In Z-Wave Appliance Module
Please Note: The 2GIG-PS15Z-2 plug-in appliance module has been discontinued and replaced by the Z-ZW4104 model number.

2GIG-PS15Z-2 Product Description:


The PS15Z-2 Plug-in Appliance Module is designed to provide Z-Wave control to a connected load. The PS15Z-2 module is plugged into any standard grounded AC wall outlet, and the appliance or other device is then plugged into the module. Once connected, the appliance/device can be turned on or off remotely via the Z-Wave controller. The module contains two power receptacles - one controlled, and one pass-through (powered at all times).

This plug-in Appliance Module integrates with other Nortek Security & Control Z-Wave enabled products, and can also act as a wireless repeater to ensure that commands intended for another device in the network are received (useful when a device would otherwise be out of radio range).

Product Features:

  • Signal (Frequency): 908.42 MHz
  • Maximum Load Resistive: 15 amps (1800 watts) maximum, 120 VAC
  • Maximum Motor: 1/2 H.P. maximum, 120 VAC
  • Maximum Incandescent: 600W maximum, 120 VAC
  • Range: Up to 100 feet line of sight between the wireless controller and/or the closest Z-Wave device
  • Network wide inclusion
  • One controlled and one pass-through outlet
  • Security beaming
  • Power Requirements: 120 VAC, 60 Hz
