2GIG-IMAGE1 - 2GIG Wireless Image Sensor (for 2GIG-CP21 Panel)
Please Note: The 2GIG-IMAGE1 wireless image sensor has been discontinued without replacement.

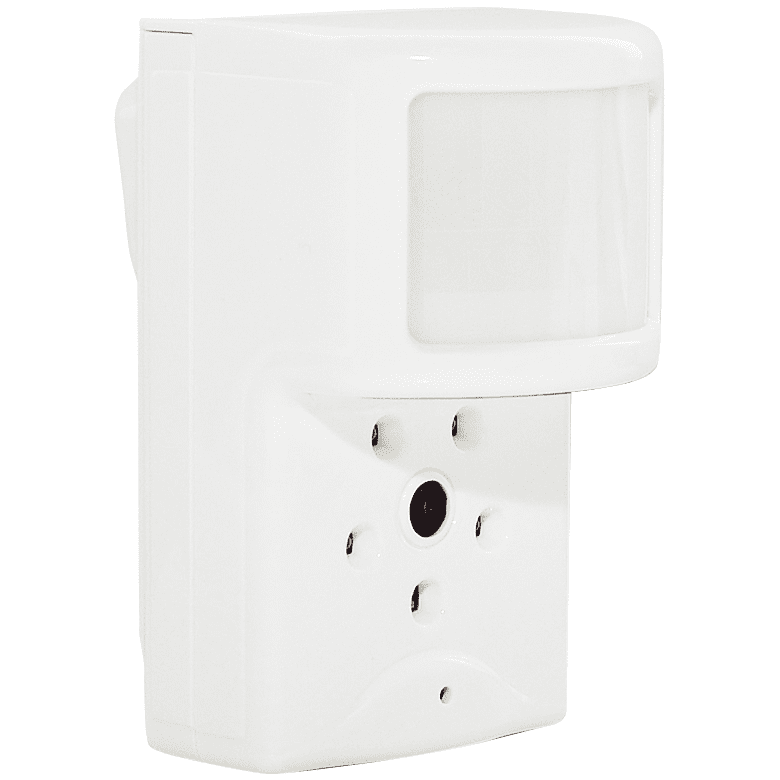

2GIG-IMAGE1 Product Description:
The 2GIG-IMAGE1 Image Sensor is a pet immune PIR (passive infrared) motion detector with a built-in camera. The 2GIG-IMAGE1 sensor is designed for the 2GIG-CP21 panel to capture images during alarm or non-alarm events. Users can also initiate image capture on-demand to peek in on their property. Images are stored locally and uploaded either automatically when motion is captured during alarm events or manually when requested by the user. Once uploaded, images are available for viewing on the Alarm.com Website or an Alarm.com Smart phone app. The 2GIG-IMAGE1 sensor is battery powered, all wireless, and simple to install and operate. A system with a 2GIG Cell Radio Module connected to an Alarm.com account with service plan subscription is required.
Product Features:
- PIR Motion Detection
- Battery Operated
- ETL certified for UL 639
- Wireless connectivity for easy installation
- 35 feet by 40 feet detection coverage area
- Configurable PIR sensitivity including pet immunity settings
- Required Radio: 2GIG-XCVR2-345
- Available Zones: One zone per Image Sensor installed (Up to 3 Image Sensors per system)
- Image Capture: QVGA (320 x 240 pixels)
- Resolution: 320×240 (QVGA)
- Color camera (except in night vision)
- Night vision capture with IR illumination flash (black & white)
- Black and white
- Receive email or MMS alerts with images attached
- Tamper detection, walk test mode, supervision
- Requires Alarm.com service plan
2GIG-IMAGE1 Product Specifications:
- Alarm.com Model Number: ADC-IS-100-GC
- Power Source: 2 AA 1.5v Energizer Ultimate Lithium Batteries
- Expected Battery Life: Approximately 1 year. Battery life varies by use case depending on certain factors such as frequency of motion activations, image captures, and IR flashes.
- Voltage Thresholds: Low battery alerts are issued at 3.05V. The sensor cannot operate when the voltage reads below 2.3V.
- Supervisory Interval: 1 hour
- Dimensions (H x W x D): 3.1" x 1.8" x 2.3" in.
- Weight (including battery): 3.1 oz. (with batteries, without mounting accessories)
- Color: White
- Operating Temperature: 32° to 110°F (for non-pet applications), 60° to 110°F (for pet applications)
- Recommended Mounting Height: 8 ft
- Recommended Mounting Angle: 6° for large coverage area and rooms greater than 30 ft ("teeth up" on mounting arm); 18° for rooms less than 30 ft ("teeth down" on mounting arm)
- Motion Profiles & Sensor Range: Normal (up to 30 ft, default), High (up to 35 ft), Low (up to 25 ft)
2GIG-IMAGE1 Compatibility & Requirements:
- Security Control Panel: 2GIG Go!Control with software 1.10 & up
- Communication Module: 2GIG Cell Radio Module
- Required Radio: 2GIG-XCVR2-345
- Available Zones: One zone per Image Sensor installed (Up to 3 Image Sensors per system)
