Please Note: The 2GIG-DW30e-345 wireless eSeries outdoor door/window alarm contact has been discontinued without replacement.

2GIG-DW30e-345 Product Description:

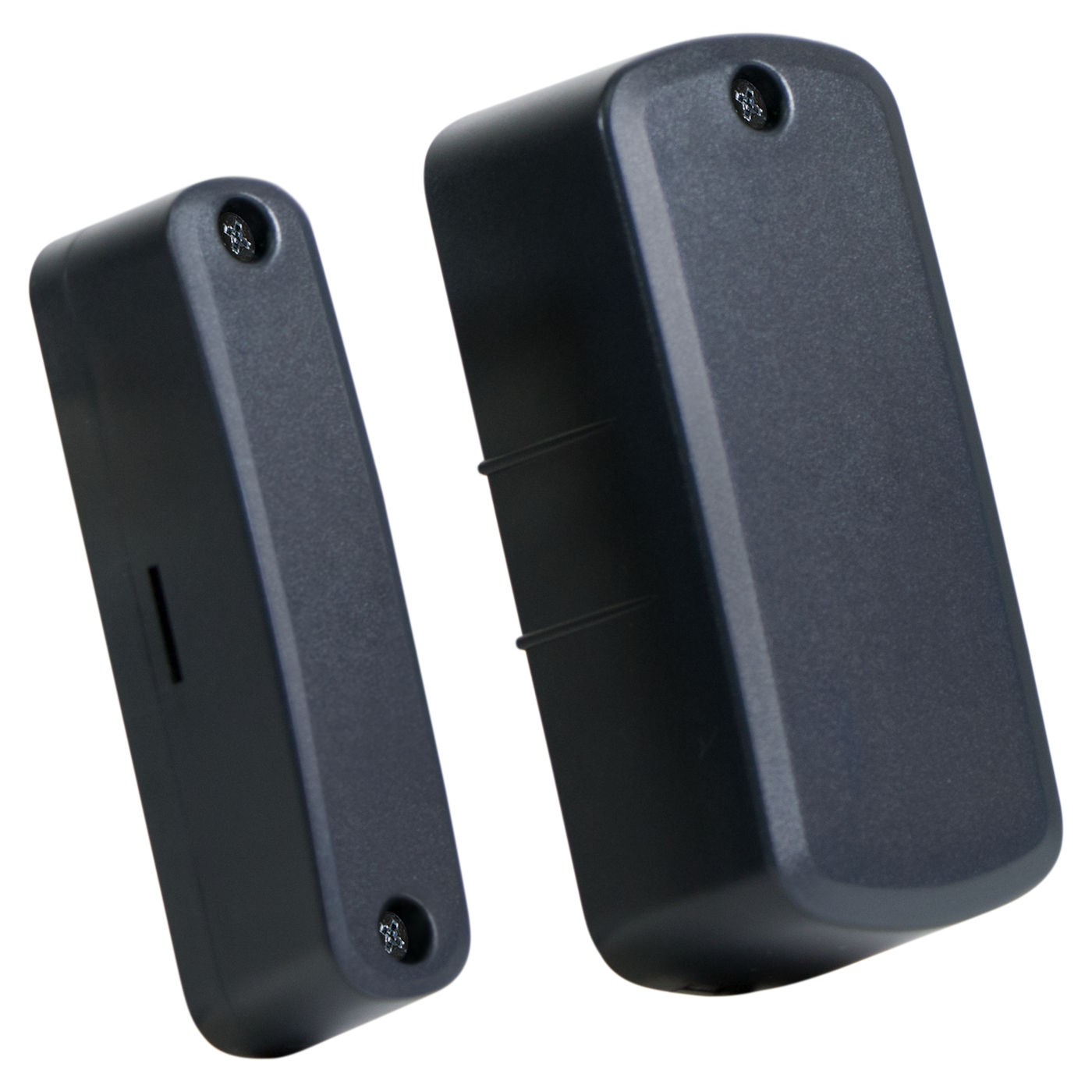

The 2GIG-DW30e-345 outdoor eSeries encrypted wireless contact sensor expands the reach of 2GIG GC2e and GC3e security systems to outdoor areas, providing timely notification when outdoor gates or doors are opened. Able to handle harsh temperature conditions, this sensor is ideal for wide gaps when a typical contact sensor is insufficient.

Product Features:

  • Sensor enables a wide gap (2 inch) enabling sensing for applications from yard gates, and swimming pool access to detached garages.
  • Designed for extreme weather conditions (IP56) (-40° to 150°F)
  • Sends a notification to the alarm panel when a door, gate or window is opened or closed.
  • Enables two unique zones. One is for an internal magnetic reed switch while the second is for a normally-closed circuit that can have external devices wired to it.
  • Can be painted to match its mounting surface
  • 345 MHz
  • eSeries encryption

2GIG-DW30e-345 Product Specifications:


  • Wireless Signal Range: 350 ft (106.7m), open air with Wireless Control Panel
  • Transmitter Frequency: 345 MHz (crystal controlled)
  • Code Outputs: Open, Restore, Supervisory, Low Battery, External Open, External Restore, Tamper, tamper Restore
  • Compatibility: 2GIG
  • Supervisory Interval: 70 minutes
  • Sensor Dimensions (L x W x H): 4.6 x 2.1 x 1.5 inch (116 x 54 x 39 mm)
  • Magnet Dimensions (L x W x H): 4.1 x 1.0 x 1.1 inch (103 x 25 x 28 mm)
  • Magnet Type: Rare Earth
  • Magnet Gap: Up to 2 inches
  • Supervision Interval: 70 minutes
  • Unique ID Codes: Over one (1) million different code combinations
  • Housing Material: Paintable ASA
  • Color: Black
  • External Input: Accepts N/C dry contact devices
  • Operating Temperature: -40° - 150°F (-40° ? 66°C)
  • Operating Relative Humidity: 0-100% Non-Condensing
  • IP Rating: Tested to IP56
  • Projected Battery Life: 5 years
  • Battery (included): Two (2) Lithium AA
  • Warranty: 2 years
  • Certifications: FCC, IC

2GIG-DW30e-345 Product Includes:


  • (1) Outdoor Sensor
  • (1) Magnet
  • (2) Lithium AA Batteries
  • (1) Mounting screws
