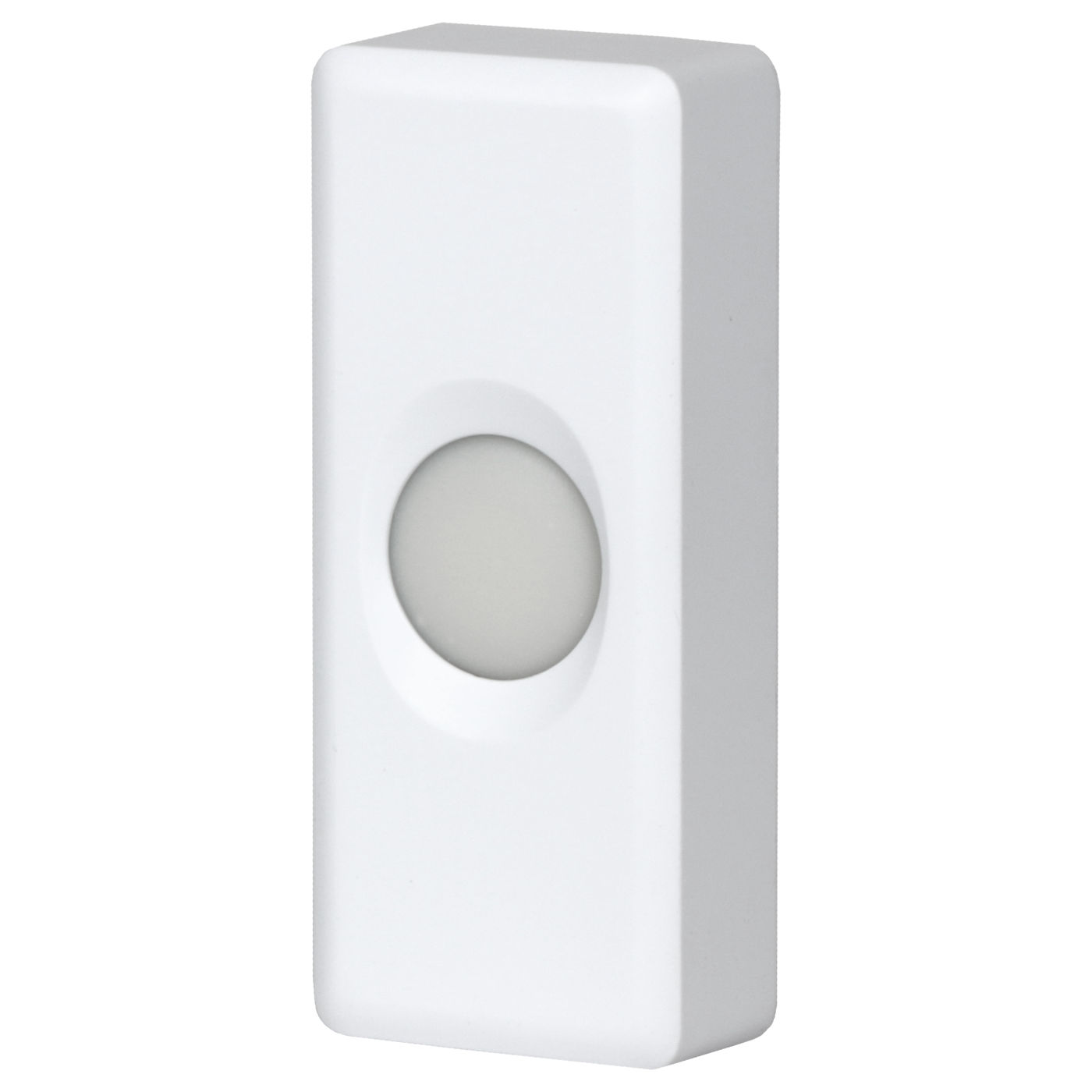

2GIG-DBELL1-345 - Wireless Door Bell

2GIG-DBELL1-345 - Wireless Door Bell
2GIG-DBELL1-345 - Wireless Door Bell
Item# 2GIG-DBELL1-345
List Price: $46.11
Your Price: $30.74
Availability: In Stock
QTY:

2GIG-DBELL1-345 Product Description:


The 2GIG-DBELL1-345 is a wireless doorbell with a dual-purpose that can be installed either with the dwelling's existing 24 V wiring or using the 345 MHz radio frequency.

Wired Installation. When installed as a wired doorbell with the home's existing 24 AC wiring, the bell is fully water-resistant and the push button remains illuminated.

Wireless Installation. When installed as a wireless doorbell, it features a fully water-resistant button. It communicates with the control panel using the 345 MHz frequency. The push button does not remain illuminated.

Product Features:

  • Smooth, modern design
  • White UV-resistant plastic
  • Simple wireless installation (can be hard-wired)
  • Surface mount
  • Weatherproof seal included
  • 350 ft. range (open air)
  • 11 selectable chimes
  • Doorbell can illuminate Z-Wave lights when engaged
  • Compatible with Scenes or Rules
  • Receive text/email from Alarm.com when doorbell engaged
  • Battery or low voltage for power
  • Low battery indicator
  • Battery included

2GIG-DBELL1-345 Product Specifications:


  • Wireless Signal Range: 350 ft (106.7 m), open air, with 2GIG Wireless Control Panel
  • Code Outputs: Alarm; Alarm Restore; Supervisory; Low Battery
  • Transmitter Frequency: 345.000 MHz (crystal controlled)
  • Unique ID Codes: Over one (1) million different code combinations
  • Supervisory Interval: 70 minutes
  • External Input Sampling Current: 20 µA
  • External Input: 24V AC Standard Doorbell Circuit
  • Dimensions (L x W x H): 2.75 x 1.17 x 0.63 in. (6.99 x 2.97 x 1.60 cm)
  • Weight (including battery): 1.1 oz (31.2 g)
  • Housing Material: ABS Plastic
  • Color: White
  • Operating Temperature: 14° to 104°F (-10° to 40°C)
  • Relative Humidity: 5?95% Non?Condensing
  • Battery (included, not installed): One (1) Panasonic CR 2032 3V or equivalent Lithium battery
  • Certification: Anatel, ETL, FCC, IC, IFETEL, and NOM

2GIG-DBELL1-345 Product Includes:


  • (1) Doorbell
  • (1) Auxiliary Analog Video Test Cable
  • (2) Wood Screws
  • (2) Machine Screws
  • (1) O-Ring
  • (1) Lithium Coin Battery (installed)
