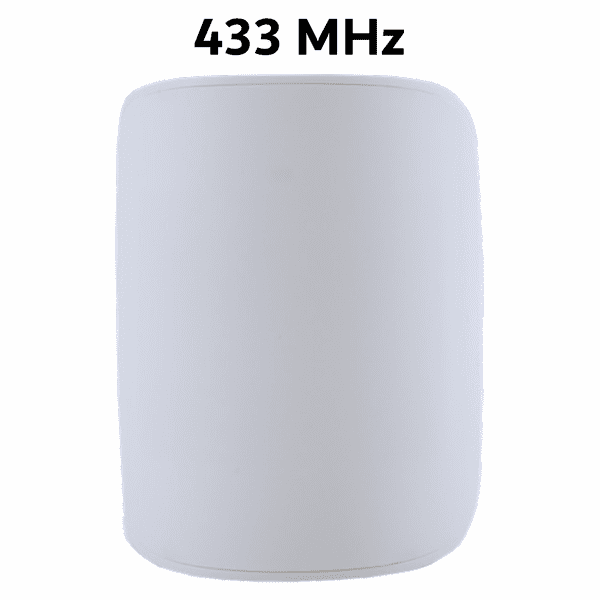

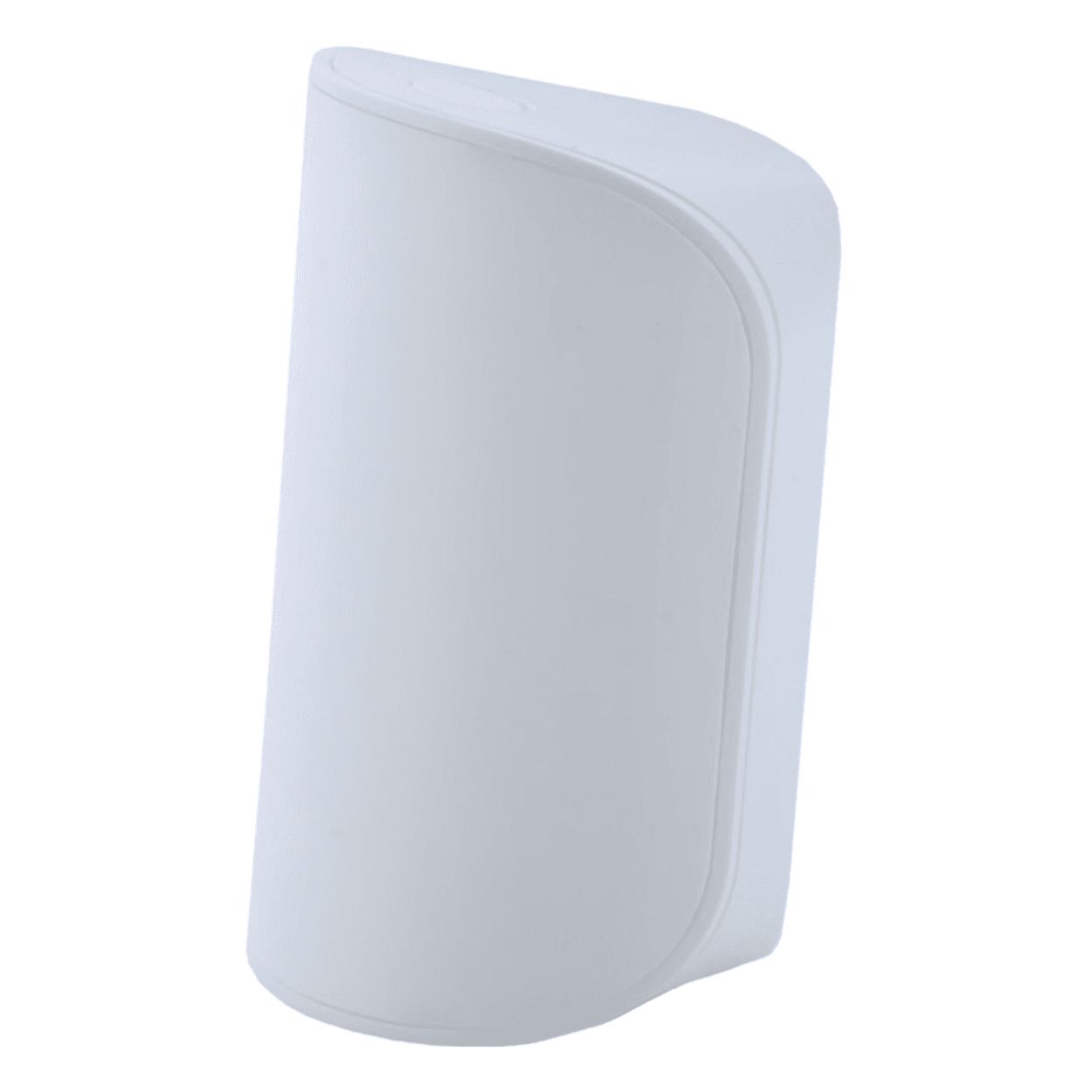

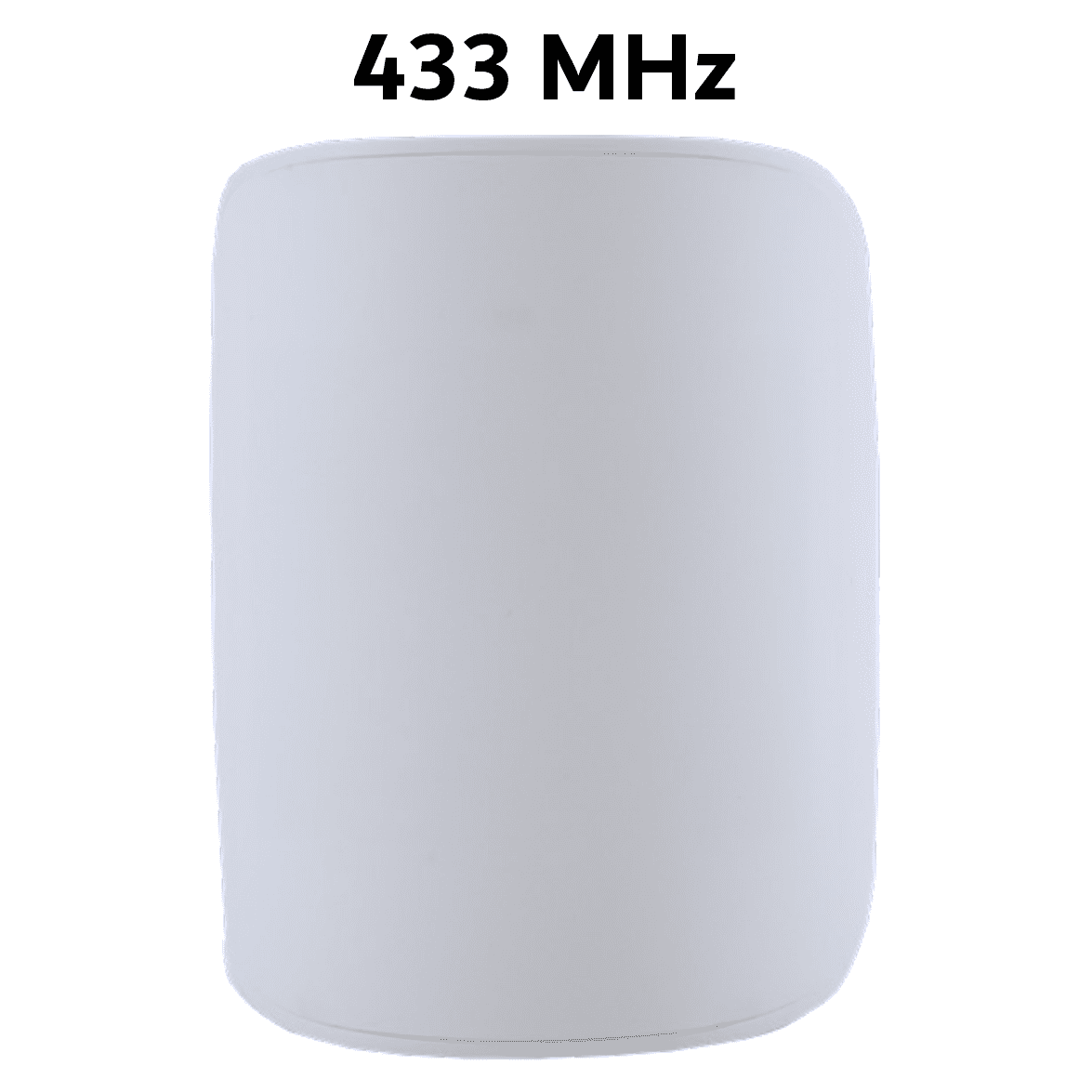

0E-PIR433V2 - ADI PRO Wireless 433 MHz Motion Detector (DSC Compatible)
The ADI PRO 0E-PIR433V2 is a mini, wireless 433 MHz motion detector with a 44' and 90° field of view that is compatible with DSC control panels. Sleek and stylish the 0E-PIR433V2 motion detector comes equipped with up to 85 lb. of improved pet immunity with "best-in-class" false alarm rejection. The 0E-PIR433V2 is state-of-the art motion sensor that directly converts the infrared detector signal into digital form, for best reliability and stability. With an coverage area and over five years of battery life, powered by a CR123 lithium battery, this motion detector is designed for low maintenance.
Product Features:
Wireless 433 MHz frequency motion detector
Compact mini design
Improved 85 lb. pet immune
44' Range and 90° field of view
Aesthetically pleasing white-color
Perfect for professional or DIY installs
Field replaceable CR123 lithium battery (5+ years)
Tamper resistant case
Mounting tape and mounting screw included
FCC and IC approved
Dimensions (L x W x H): 3.54" x 2.64" x 1.72" (90 x 67 x 43.6mm)
Frequency: 433.92 MHz
Color: White
Operating Temperature: 32° to 100°F (0° to 49°C)
Operating Humidity: 5-95% RH non-condensing
Battery: (1) CR123A Panasonic Lithium 3VDC
Average Battery Life: 5 years
Compatibility: DSC receivers
Pet Immunity: Up to 85 lbs. (38.6 kg)
Supervisory Interval: Approximately 60 minutes
Coverage Area: 40' x 40' (12.2 x 12.2 m), 90° angle
Light Immunity: 2000 Lux
Coverage Pattern: 7.5' (2.3m)
Approvals: FCC and IC approved
1 x Sensor
4 x Screws and Wall Anchors
2 x Sensor Case Screws
1 x Sensitivity Jumper
1 x CR123A battery (installed)
1 x Back Mounting 2-Sided Adhesive Tape
1 x Back Mounting 2-Sided Adhesive Tape
1 x Manual
DSC Control Panels
Qolsys Control Panels (with 433 MHz Receiver)
