0E-DRWD433 - ADI PRO Wireless 433 MHz Door/Window Alarm Contact (DSC Compatible)
ADI PRO 0E-DRWD433 Product Description:

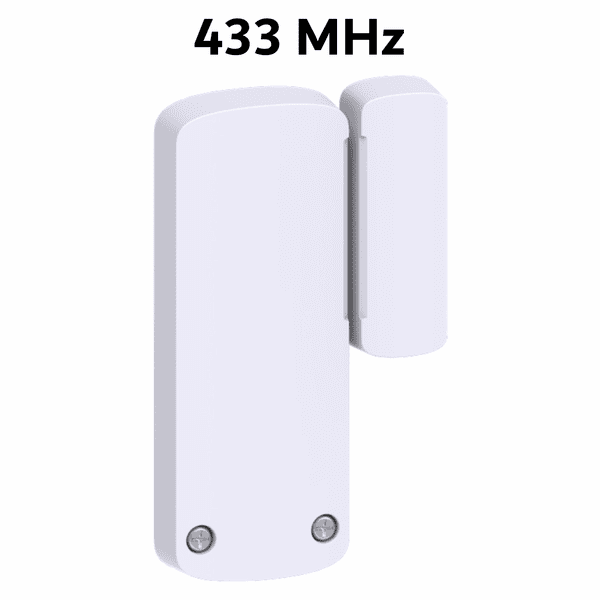

The ADI PRO 0E-DRWD433 is a surface mount wireless 433 MHz door/window sensor that is compatible with DSC panels and receivers. Its small, low-profile design and wireless range are ideal for most residential or light commercial applications. With exceptional range and over five years of battery life, powered by a CR2032 lithium battery, the 0E-DRWD433 contact is designed for low maintenance.
Product Features:
- Thin design, strong rare earth magnet, 0.625" gap
- Snap-on interchangeable white/brown covers included
- Proven reliable wireless technology
- Compatible with 433 MHz wireless protocol (DSC)
- 5-8 year battery life, CR2032 replaceable lithium battery
- FCC and IC approved
ADI PRO 0E-DRWD433 Product Specifications:
- Sensor Dimensions: 2.25" x 1" x .25" in (57.2 x 24.5 x 6.4 mm)
- Magnet Dimensions: 1.37" x .5" x .25" in (34.8 x 12.7 x 6.4 mm)
- Operating Temperature: 32° to 120°F (0° to 49°C)
- Operating Humidity: 5-95% RH non-condensing
- Color: White
- Transmitter frequency: 433 MHz
- Battery: 3V lithium CR2032
- Average Battery Life: 5-8 years
- Magnet Gap: 5/8" (15.875mm) max
- Supervisory Signal Interval: 60 min. (approximately)
- Compatibility: 433 MHz wireless protocol (encrypted formats excluded)
- Approvals: FCC and IC approved
ADI PRO 0E-DRWD433 Product Documents:
• Data Sheet - ADI PRO 0E-DRWD433 Wireless 433 MHz Door/Window Alarm Contact
• User Manual - ADI PRO 0E-DRWD433 Wireless 433 MHz Door/Window Alarm Contact
ADI PRO 0E-DRWD433 Product Includes:
- 1 x Sensor
- 4 x Screws and Wall Anchors
- 2 x Sensor Case Screws
- 1 x Sensitivity Jumper
- 1 x CR123A battery (installed)
- 1 x Back Mounting 2-Sided Adhesive Tape
- 1 x Back Mounting 2-Sided Adhesive Tape
- 1 x Manual
ADI PRO 0E-DRWD433 Product Compatibility:
- DSC Control Panels
- Qolsys Control Panels (with 433 MHz Receiver)
