RE657W - Resolution Products Wireless HeliTouch Alarm Keypad (Cryptix-Encrypted)
Please Note: The Resolution Products RE657W wireless Cryptix HeliTouch alarm keypad has been discontinued and replaced by the Alula RE657W model number.
Resolution Products RE657W Description:

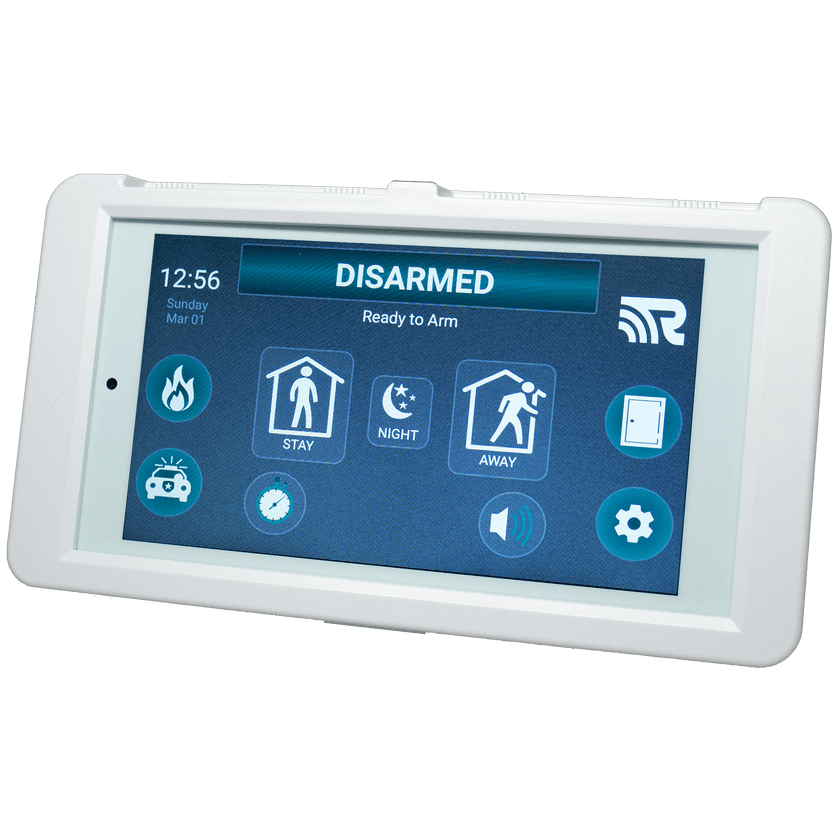

The Resolution Products RE657W is an intuitive 7" touchscreen interface for the Helix security panel. The RE657W HeliTouch is a Cryptix-encrypted, wireless keypad which does not include the WiFi expansion card (RE926RX). The HeliTouch keypad is AC-powered and communicates wirelessly to the Helix panel. For a more professional installation, choose whether to table mount or wall mount the RE657W with the included mounting materials. Select a mounting location (wall or table) within reach of the 10-foot power cable.
Product Features:
- Encrypted, Helix-enabled, optional battery-backed WiFi connection
- Full status reporting
- Vibrant 7" Android tablet display
- Clean and modern appearance
- Mounts over holes left by previous panels or on table top
- Ergonomic angle for comfortable use
- Real time status
- Wall or table mounting
- AC Adapter Part Number: RE012-13
- 2 year warranty
Resolution Products RE657W-R Specifications:
- Dimensions With Feet: 8.8 x 4.8 x 3.3 inches (22 x 12 x 8.4 cm)
- Dimensions Without Feet: 8.8 x 4.8 x 1.2 inches (22 x 12 x 3.0 cm)
- Weight: 18 oz (510 grams)
- Mounting Fasteners: #4 or #6 screws (not included)
- Operating Temperature: 32°F to 120°F (0°C to 49°C)
- Maximum Humidity: 85% non-condensing relative humidity
- Battery Life: 4 hours
- Wireless Range: 300 feet in open air
- Screen Resolution: 1024 x 600 pixels
- Screen Size: 7 inches diagonally
- Power Supply: RE012-13
- WiFi DeviceLink: RE926RX (not included)
- Certification: FCC, IC
