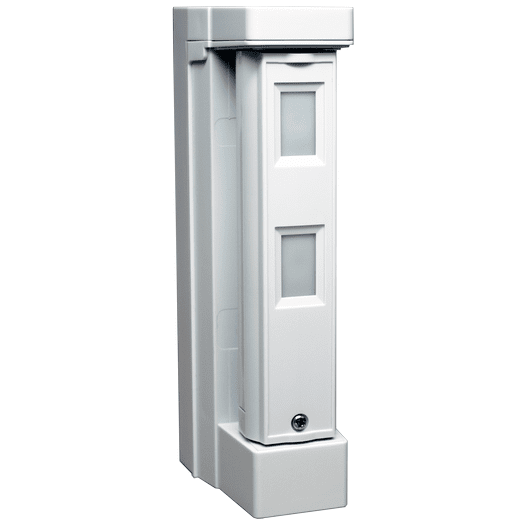

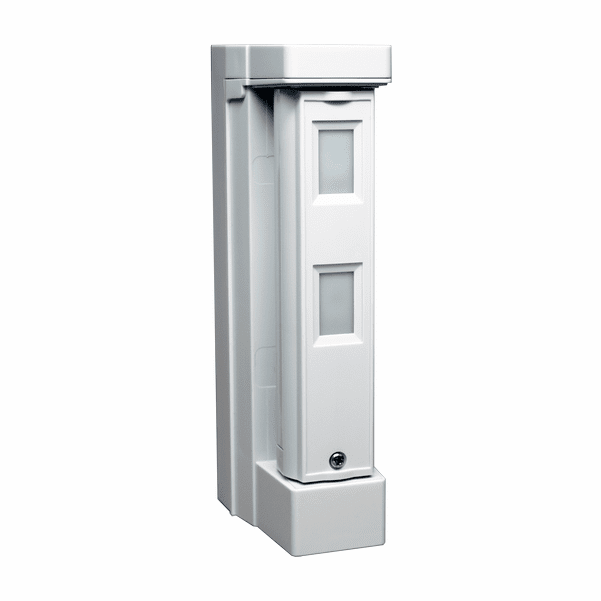

RE653 - Resolution Products Wireless Outdoor Optex PIR Motion Detector (Cryptix-Encrypted)

RE653 - Resolution Products Wireless Outdoor Optex PIR Motion Detector (Cryptix-Encrypted)
Please Note: The Resolution Products RE653 wireless Cryptix outdoor optex PIR motion detector has been discontinued and replaced by the Alula RE653 model number.

Resolution Products RE653 Description:


The Resolution Products RE653 is a CryptiX-encrypted, weatherproof, wireless outdoor PIR motion detector. The RE653 protects outdoor areas with two IR sensors, for advanced animal immunity, and transmits an alarm when motion is sensed from up to 15 feet (5 meters) away. The RE653 is battery-powered and enclosed in a IP55 weatherpoof casing to operate in harsh environmental conditions.

To enroll the RE653, begin by placing the panel into wireless enrollment mode and sending an enrollment signal from the motion sensor. Alternatively, the motion sensor can be enrolled by scanning its bar code using the HeliLink app or by entering its 8-character serial number on the interactive GeoArm web portal.

To install the RE653, begin by loosening the mounting plate screw and removing the motion sensor body. Next punch out the mounting holes and secure the mounting plate to a surface. Finally place the motion sensor body back onto the mounting plate and tighten the mounting plate screw.

To change the RE653 sensor direction, you have to remove the cover and adjust the direction locking part to turn the sensor. After changing the sensor direction replace the direction locking part and cover. The detection length can be also be changed from the default 16.5 feet (5m) detection length to a 6.5 feet (2m) detection length by rotating the lower lens 180 degrees. Do not remove the upper lens.

Product Features:

  • IP55 weatherproof enclosure
  • Adjustable detection range
  • Two IR sensors for advanced animal immunity
  • 5m or 2m range and 190 degree field of view (95 degrees to each side)
  • Wall mounted
  • Walk test LED
  • Battery operated (CR123A battery)
  • 8-10 year battery life
  • Cover tamper
  • Low Battery indication
  • Strong, reliable RF signal
  • 5 year warranty

Resolution Products RE653 Specifications:


  • Dimensions: 7.0 x 2.7 x 2.1 inches (17.7 x 6.8 x 5.2 cm)
  • Weight with Battery: 6.4 ounces (180 grams)
  • Mounting Fasteners: #4 or #6 screws (not provided)
  • Operating Temperature: -4 to 140°F (-20 to 60°C)
  • Maximum Humidity: 95% non-condensing relative humidity
  • Weatherproof: IP55
  • Frequency: 433.92 MHz
  • Replacement Battery: One Panasonic CR123A
  • Nominal Battery Life: 2 years (500 trips per day), 5 years (150 trips per day)
  • Battery Voltage: 3.0 VDC (Nominal), 2.3 VDC (Low)
  • Current Draw: 30 mA (Maximum), 11.2 uA (Quiescent)
  • Mounting Height: 2.5 to 4 feet (0.8 to 1.2m)
  • Detection Length: Default: 16.5 feet (5m), Optional: 6.5 feet (2m)
  • Detectable Speed: 1 to 5 feet per second (0.3 to 1.5 metres per second)
  • Transmitted Indications: Motion, Cover Tamper, Wall Tamper, Low Battery, Supervision
  • Certification: UL639, ULC-S309-03, ETL, FCC, IC, RCM
