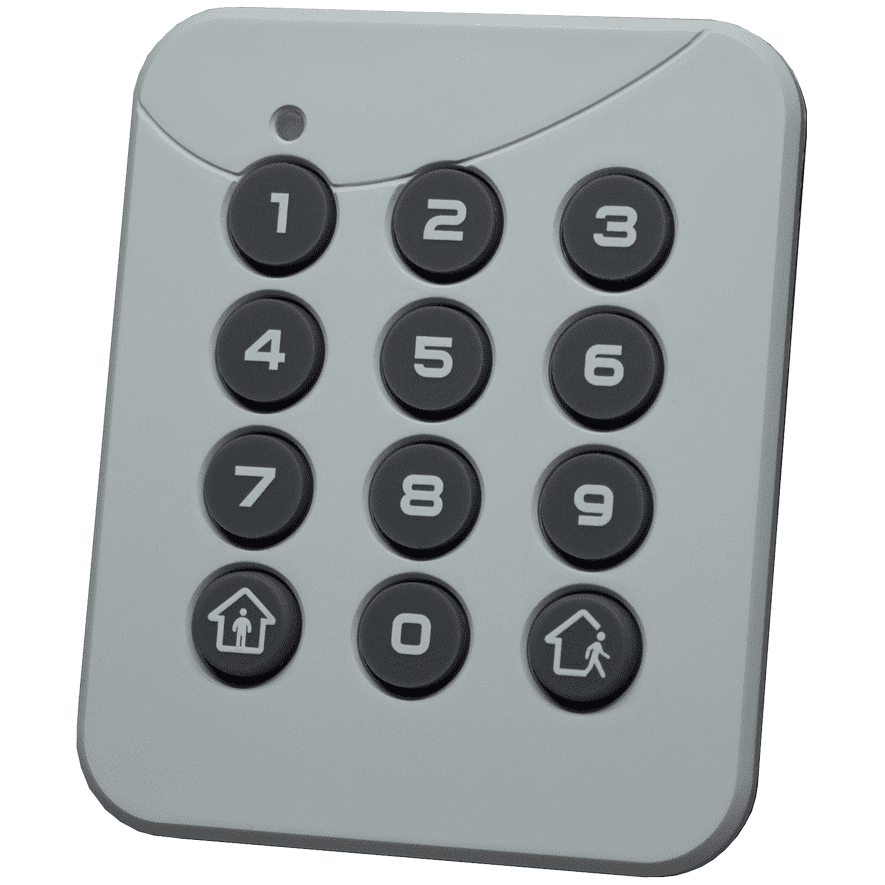

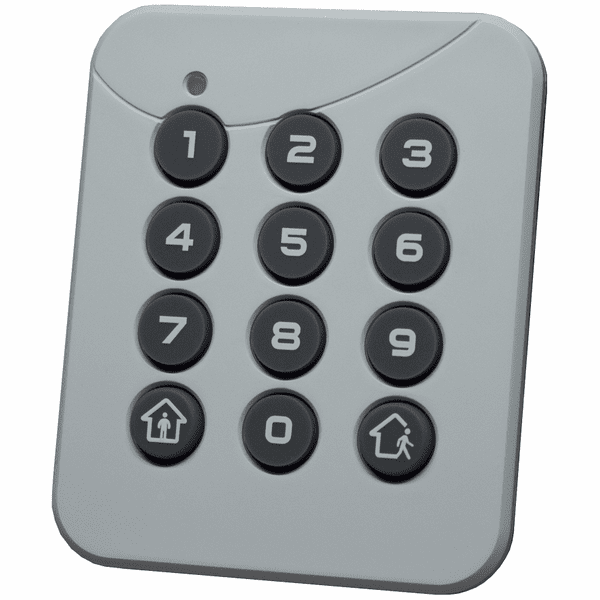

RE652 - Resolution Products Wireless Secondary PINpad Alarm Keypad (Cryptix-Encrypted)

RE652 - Resolution Products Wireless Secondary PINpad Alarm Keypad (Cryptix-Encrypted)
RE652 - Resolution Products Wireless Secondary PINpad Alarm Keypad (Cryptix-Encrypted)
Item# RP-RE652

Please Note: The Resolution Products RE652 wireless Cryptix secondary PINpad alarm keypad has been discontinued and replaced by the Alula RE652 model number.

Resolution Products RE652 Description:


The Resolution Products RE652 is an Cryptix-encrypted, wireless alarm keypad. The RE652 PINPad is a simple arming station that allows local control of the Helix panel. It is battery powered and requires no installation tools. Many can be installed throughout the home to provide convenient system control.

To enroll the RE652 PINPad, begin by placing the panel into wireless enrollment mode and then sending an enrollment signal from the PINPad. Alternatively, the PINPad can be enrolled by scanning its bar code using the HeliLink app or by entering its 8-character serial number on the interactive GeoArm web portal.

To install the RE652 PINPad, proceed by using the 3M VHB® tape on the back of the PINPad to adhere it to a wall.

It is easy to operate the RE652 PINPad too! To disarm enter a valid 4-10 digit user code on the number pad. To Arm Away by pressing the AWAY button until the PINPad LED flashes red. To Arm Away by pressing the AWAY button until the PINPad LED flashes red. And, you may trigger a panic alarm by pressing the STAY & AWAY buttons together until the PINPad LED flashes red.

Product Features:

  • Mounts on wall via VHB® tape, or screws
  • Secure for carrying in purse or mounting on car visor
  • Strong, reliable RF signal
  • Red/Green LED arming feedback
  • Secure 4 to 10 digit disarming
  • Supports 1-button arming
  • Small yet comfortable
  • 5 year warranty

Resolution Products RE652 Specifications:


  • Dimensions: 2.28 x 1.97 x 0.40 inches (5.8 x 5.0 x 1.0 cm)
  • Weight with Battery: 0.70 ounces (20 grams)
  • Mounting Fasteners: 3M VHB™ Tape or #4/#6 screws (Mounting screws not provided)
  • Operating Temperature: 32°F to 120°F (0°C to 49°C)
  • Maximum Humidity: 85% non-condensing relative humidity
  • Frequency: 433.92 MHz
  • Replacement Battery: One Panasonic CR2032
  • Nominal Battery Life: 4 to 6 years
  • Battery Voltage: 3.0 VDC (Nominal), 2.2 VDC (Low)
  • Current Draw: 20 mA (Maximum), 1 uA (Quiescent)
  • Transmitted Indications: Low Battery, Supervision
  • Certification: UL634, ULC634, FCC, IC
