RE614 - Resolution Products Wireless Smoke Detector (Cryptix-Encrypted)

RE614 - Resolution Products Wireless Smoke Detector (Cryptix-Encrypted)
Please Note: The Resolution Products RE614 wireless Cryptix smoke detector has been discontinued and replaced by the Alula RE614 model number.

Resolution Products RE614 Description:

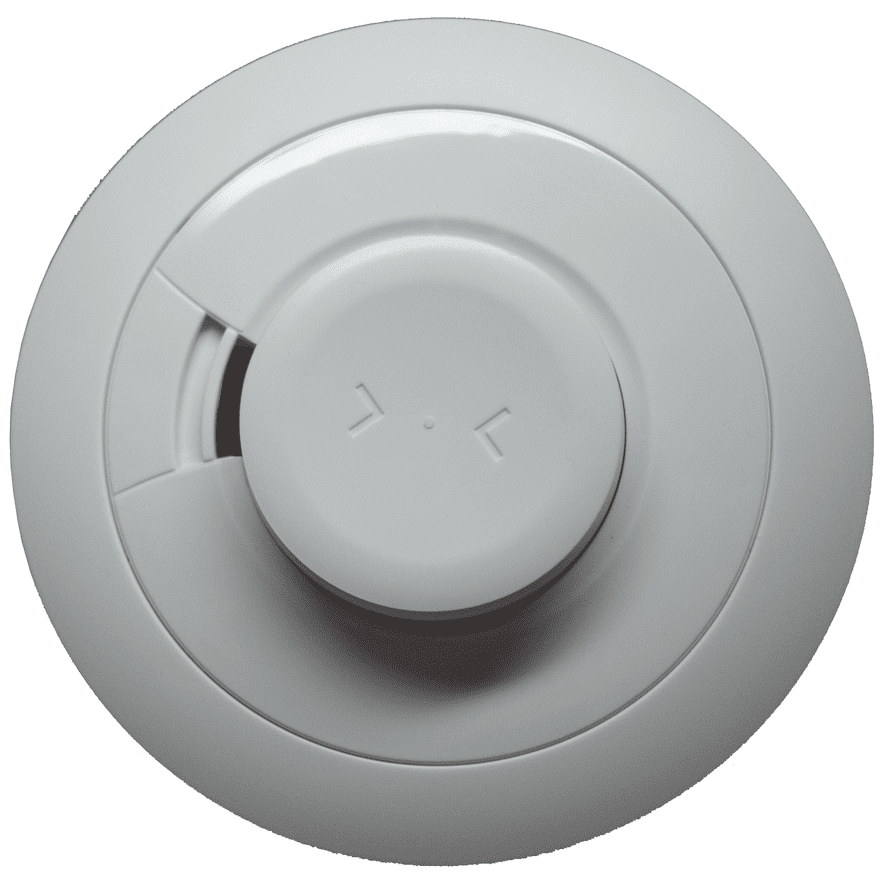

The Resolution Products RE614 is a CryptiX-encrypted, wireless smoke and heat alarm sensor. The RE614 smoke alarm detector is a fire-protection device that alarms when it detects smoke or temperatures above 135°F (57°C).

Product Features:

  • Highly reliable smoke detector
  • Photoelectric detection element
  • Heat Alarm - 135°F
  • Rate of Rise - 15°/min
  • Built-in temporal 3 sounder
  • Long range transmitter and a detection element that is UL217 certified
  • Two Panasonic CR123A batteries
  • Strong, reliable RF signal
  • Low battery indication
  • 5 year warranty

Resolution Products RE614 Specifications:


  • Dimensions: 4.7 x 1.8 inches (12.0 x 4.6 centimeters)
  • Weight with Batteries: 7.36 ounces (210 grams)
  • Mounting Fastener: #6 screws and anchors (provided)
  • Operating Temperature: 40°F to 100°F (4.4°C to 37.8°C), Long Term
  • Maximum Humidity: 15% to 95% non-condensing relative humidity
  • Water Resistance: IP67 rated (waterproof for over 30 minutes at 1 meter depth)
  • Frequency: 433.92 MHz
  • Transmitted Indications: Low Battery, Supervision
  • Loudness: 85 dBA at 10 feet (3m) minimum
  • Smoke Sensitivity: 1.95% to 4% OBS/Foot
  • Heat Sensor: 135 ± 5°F (57 ± 2°C)
  • Certification: FCC, IC, UL217, ULC531
