RE601 - Resolution Products Wireless Standard Door/Window Contact (Cryptix-Encrypted)

RE601 - Resolution Products Wireless Standard Door/Window Contact (Cryptix-Encrypted)
Please Note: The Resolution Products RE601 wireless Cryptix standard door/window alarm contact has been discontinued and replaced by the Alula RE601 model number.

Resolution Products RE601 Description:

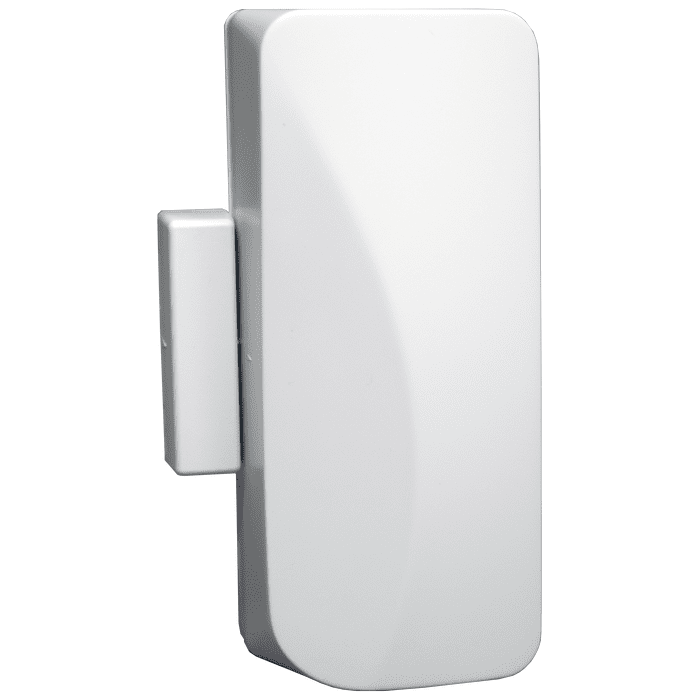

The Resolution Products RE601 is a CryptiX-encrypted, standard-sized, wireless door or window sensor. The RE601 is a full-featured security transmitter with industry-leading wireless range and battery life. It is typically used to sense opening and closing of doors and windows, but can secure just about anything using its two external contact zones. The RE601 will alarm when the magnet is pulled away from the sensor or when an external contact is opened.

To enroll the RE601, begin by placing the panel into wireless enrollment mode and then sending an enrollment signal from the sensor. Alternatively, the sensor can be enrolled by scanning its bar code using the HeliLink app or by entering its 8-character serial number on the interactive GEOARM web portal.

To install the RE601, begin by mounting the sensor and magnet on a door or window using the mounting screw locations. Make sure to align the alignment marks on the sensor and magnet when mounting. Additionally, the sensor can be used with up to two external contacts.

Product Features:

  • Industry-leading wireless range and battery life
  • One door window zone and two external contact zones
  • Secure encrypted wireless transmissions
  • For sensing things that open or separate
  • Magnet and Internal reed switch operation
  • 2 supplemental hardwire zones
  • Cover tamper
  • Strong, reliable RF signal
  • 10-15 year battery life on CR123A battery
  • Low Battery indication
  • 5 year warranty

Resolution Products RE601 Specifications:


  • Dimensions: 3.25 x 1.40 x 1.05 inches (8.3 x 3.6 x 2.7 cm)
  • Weight with Battery: 1.90 ounces (54 grams)
  • Mounting Fastener: #4 or #6 screws (not provided)
  • Operating Temperature: 32 to 120°F (0 to 49°C)
  • Maximum Humidity: 85% non-condensing relative humidity
  • Frequency: 433.92 MHz
  • Replacement Battery: One Panasonic CR123A
  • Nominal Battery Life: 10 to 15 years
  • Battery Voltage: 3.0 VDC (Nominal), 2.2 VDC (Low)
  • Current Draw: 20 mA (Maximum), 0.6 uA (Quiescent)
  • Transmitted Indications: Cover Tamper, Low Battery, Supervision
  • Certification: UL634, ULC634, ETL, FCC, IC
