QS5535-840 - Qolsys IQ Temp-S Wireless S-Line Temperature Sensor
Please Note: The Qolsys QS5535-840 wireless temperature sensor has been discontinued without replacement.

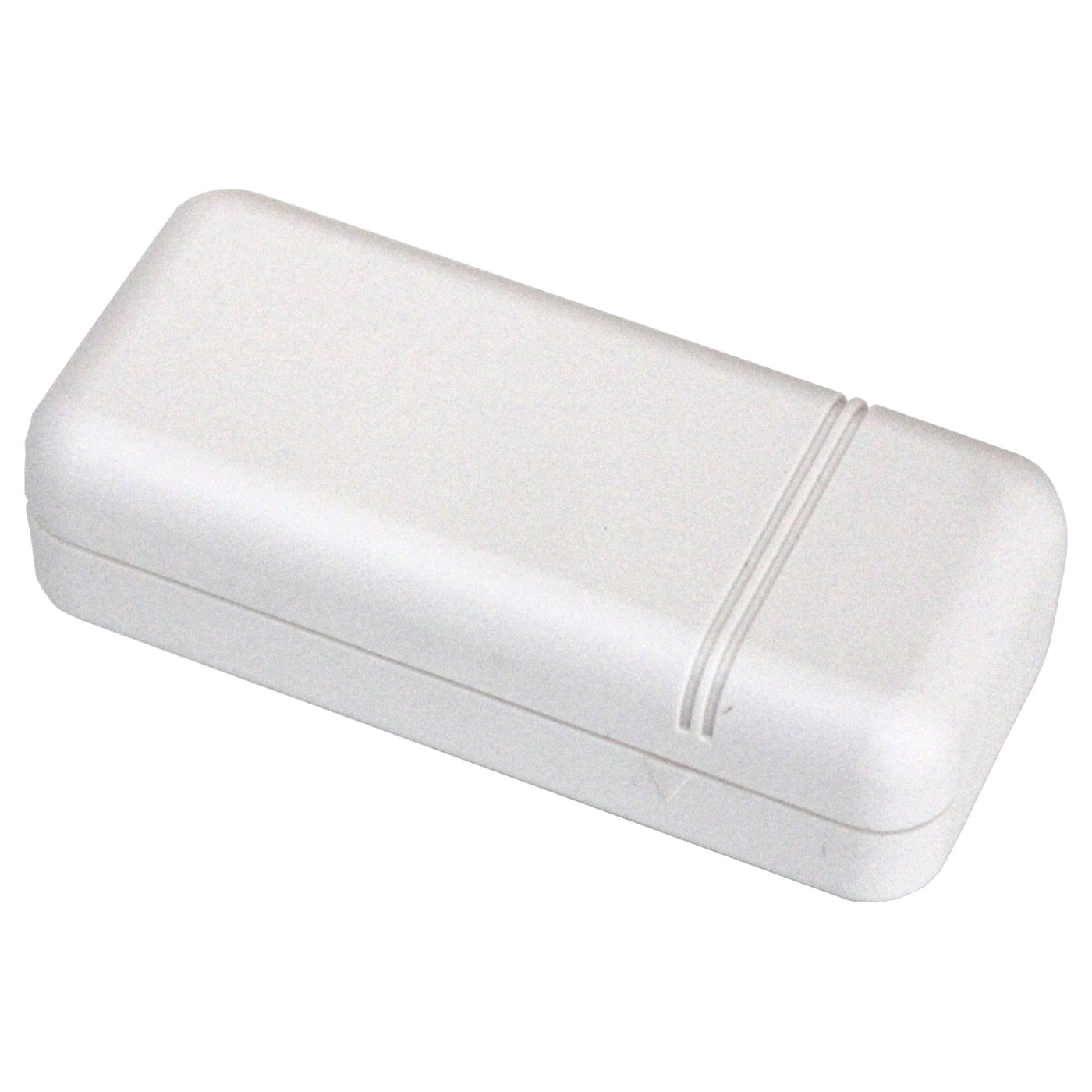

Qolsys QS5535-840 Product Description:
The Qolsys QS5535-840 IQ Temp-S is wireless S-Line encrypted temperature sensor designed to alert you if temperatures drop below 40°F or rise above 100°F. The IQ Temp-S temperature sensor works with any S-Line compatible security system control panel.
The QS5535-840 sensor warns against severe temperature changes, depending on the users desired monitoring (i.e. freezing pipes or home comfort). The low temperature alarm restores when temperatures rise above 45°F, and the high temperature alarm restores when temperature drops below 95°F.
This early warning may help you protect your valuables, pets and home from extreme heat or cold in the event of a HVAC or thermostat failure. Homeowners are alerted to the danger via text message and on-screen notifications on the IQ Panel. The QS5535-840 is ideally suited for a wide range of mounting applications including; bathrooms, laundry rooms and basements. The IQ Temp-S uses a new antenna design enabling better performance on a variety of surfaces, including metal doors, and has a 8-10 year battery life. With the IQ Temp-S, you will know there is a problem before it becomes a disaster.
Product Features:
- Encrypted S-Line sensor technology protects signals sent to the compatible panel (while still providing support for legacy 319.5 systems)
- Freeze detection alerts panel if temp. drops below 40°F
- High temp. sensor alerts panel if temp. exceeds 100°F
- Great to detect HVAC failure
- Protect elderly, infirm, pets
- Get a text notification sent to your phone if the IQ Temp-S detects a potential problem
Qolsys QS5535-840 Product Specifications:
- Cover Tamper: Protects against deliberate tampering
- Wireless Signal Range: 600ft (200M), open air
- Unique ID: for each function
- Transmitter Frequency: 319.5MHz
- Temperature Checked: every 5 minutes
- Battery Checked: every hour
- Batteries (2): Panasonic CR2032, Energizer CR2032, Duracell DL2032
Qolsys QS5535-840 Product Documents:
• Quick Installation Guide for Qolsys QS5535-840 Temperature Sensor

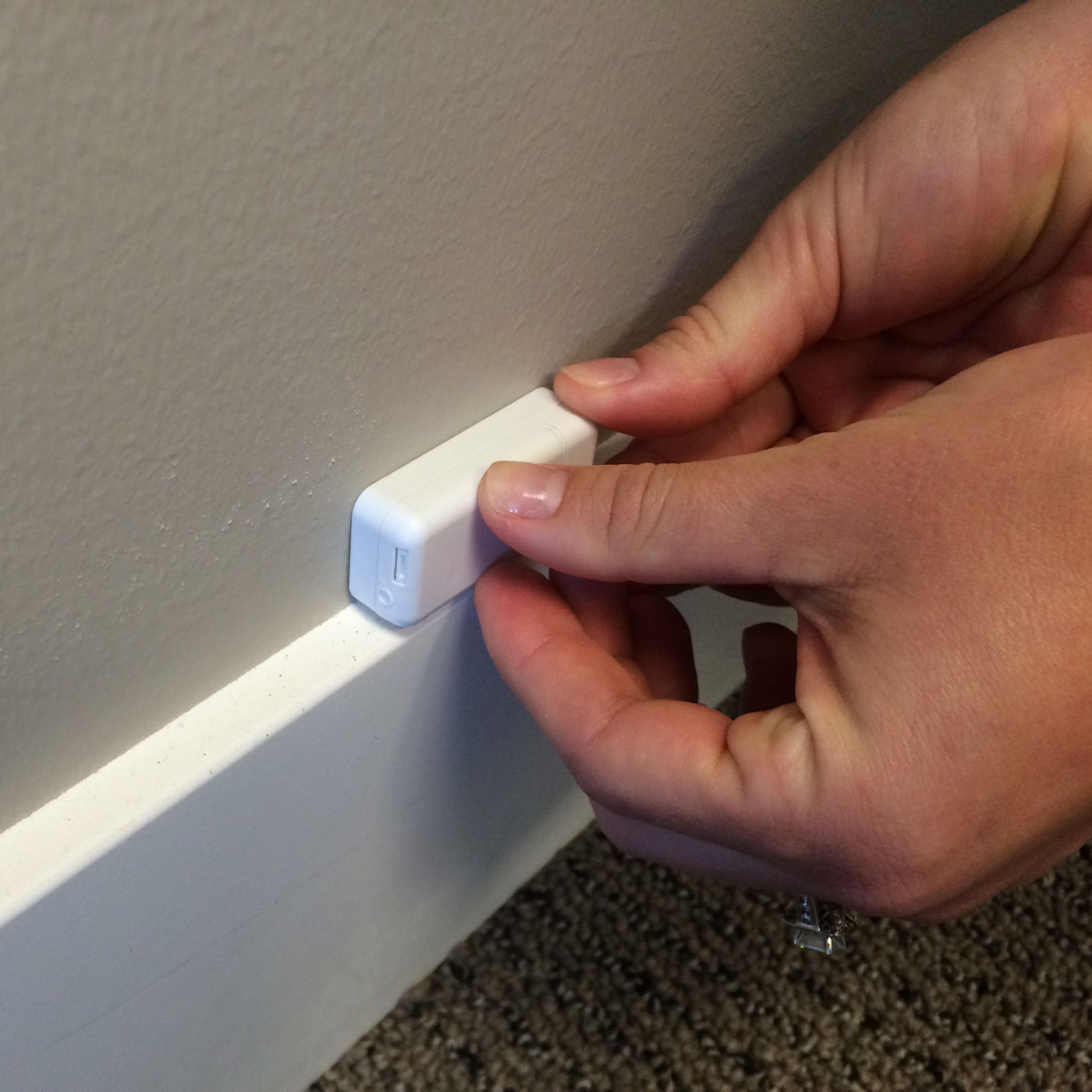

Qolsys QS5535-840 Product Mounting:
- Bathrooms
- Laundry Rooms
- Basements
NOTE: Avoid areas that may retain heat, such as furnace rooms or near hot water pipes.
Qolsys QS5535-840 Product Compatibility:
- Qolsys IQ Panel 2 (Model Numbers: QS9201-1200-840, QS9202-1200-840)
- Qolsys IQ Panel 2+ (Model Numbers: QS9201-1208-840, QS9202-1208-840)
- Qolsys IQ Panel 4 (Model Numbers: IQP4001, IQP4004, IQP4007)
- Qolsys IQ Hub (Model Numbers: QS9301-1200-840, QS9302-1200-840, QS9307-1200-124)
- Qolsys IQ4 Hub (Model Number: IQPH051)
