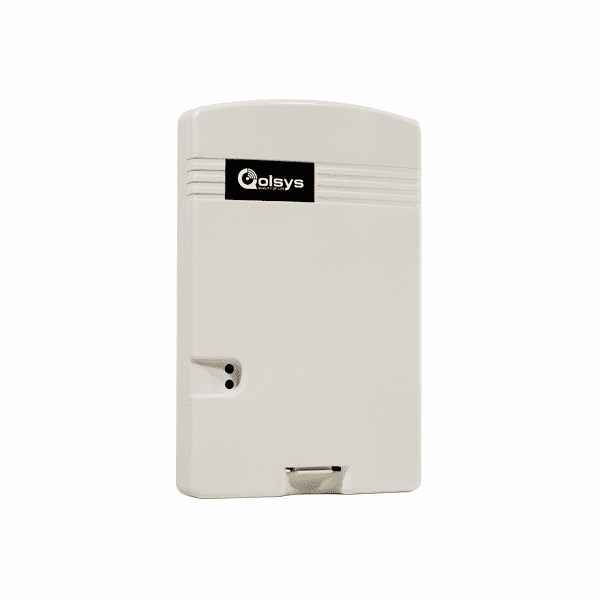

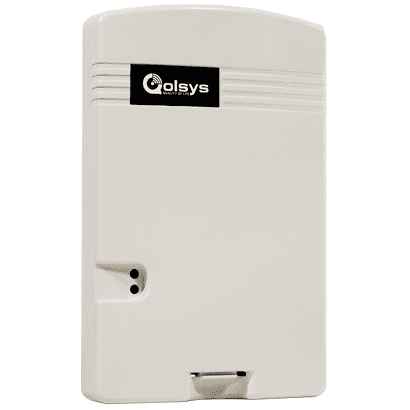

Qolsys IQ Wireless HT Alarm Translator for 345 MHz Devices (QS-8130-840)
Qolsys IQ Wireless HT Alarm Translator for 345 MHz Devices (QS-8130-840)
Item# QS-8130-840
List Price: $92.65
Your Price: $61.76

Qolsys QS-8130-840 Wireless Translator:

The Qolsys IQ Wireless Translator interprets the signals sent from non-native security frequencies into a signal the IQ panel can understand. The IQ Wireless Translator QS-8130-840 translates radio frequency (RF) 345 MHz. The QS-8130-840 allows existing devices such as keyfobs, door/window contacts, motion sensors already installed in the home or business to be paired with the IQ Panel.

Product Features:

  • Translates 2GIG and Honeywell protocol wireless devices
  • Transmits Qolsys-compatible wireless
  • Translate multiple zones with a single device
  • Significant cost savings over replacing every sensor
  • Works within 100' range of the IQ Panel
  • 72 hour battery backup
  • Enrolls up to 63 devices
  • All sensor alarm, supervisory and trouble signals are passed through
  • Dual antennas for both receive and transmit diversity for reliable range
  • Back-up battery operation
  • Unique wireless ID for each zone, plus 1 for main device

Qolsys QS-8130-840 Specifications:

  • Dimensions: 4 x 6 x 1 inches
  • Connects Using Security RF 319.5MHz
  • Backup batteries: Three (3) AAA Alkaline
  • External supply: 8.5 to 13VDC or 6-9VAC
  • Standard: Resolution RE012: 12VDC, 50mA
  • Optional: GE 60-898-ITI, for securing screw, Wire connection polarity doesn't matter
  • Current draw with supply: 4mA, normal operation
  • Power Fail Conditions: 12V DC gone. Translator device ID supervisories (including low battery reports) are stopped during 12V DC loss
  • Back-up Battery Life on 12V DC Fail: 72 hours (cumulative)
  • Device Low Battery: When approximately 48 hours remain in back-up
