Item# ADC-V610PT

Please Note: The Alarm.com ADC-V610PT wireless pan/tilt IP security camera has been discontinued without replacement.

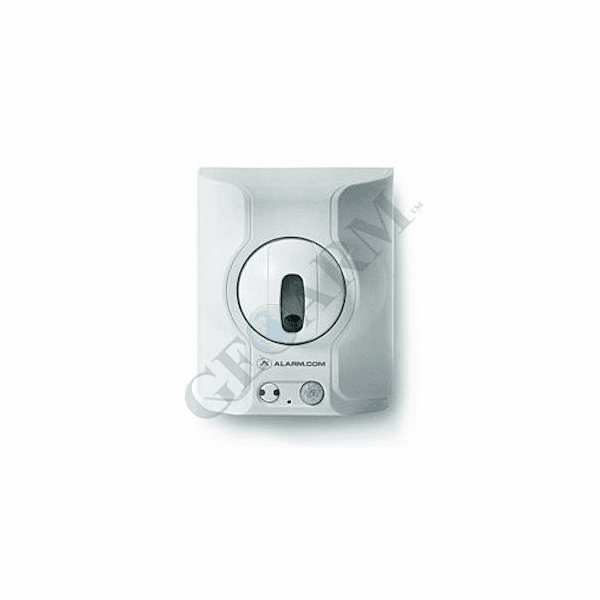

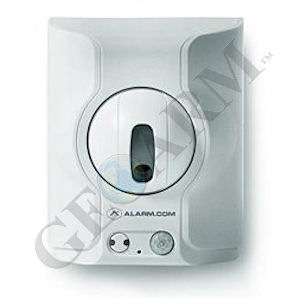

Alarm.com ADC-V610PT Product Description:


The Alarm.com ADC-V610PT captures color video at up to 640 x 480 resolution while providing for low-light sensitivity and adjustable video motion detection. Plug this wireless pan/tilt security camera into a standard A/C wall outlet and, with an active wireless internet connection, you are ready to view live video from anywhere. You also can add a 9' power extension cable if there isn't an outlet near where you want to mount the wireless pan/tilt security camera. Unlike the fixed wireless IP security camera, this camera can be remotely controlled to look around. The camera can pan back and forth and/or tilt up and down using the web based controls of the interactive monitoring service. The privacy button on the wireless pan/tilt security camera allows you to turn off remote viewing and recording as an added security feature. If the privacy button is activated, you would only be able to view the wireless pan/tilt security cameras if you were on site at the protected premise.

This wireless security camera can be used as a standalone video surveillance system, or it can be integrated with a GE Simon XT Wireless Security System when you choose one of GeoArm's Alarm.com interactive and video alarm monitoring plans. Alarm.com interactive alarm monitoring with video surveillance allows you to look in live to your property anytime and anywhere as long as you have a web enabled PDA, cell phone, or computer. You also would have the ability to record video whenever an alarm event occurs or a the security camera detects motion. Unlike an expensive traditional digital video recorder (DVR) surveillance system which stores its data on site, the ADC-V610PT transmits its data to an offsite remote location ensuring the security of your recordings.

Unlike other video surveillance solutions, this wireless pan/tilt security camera does not need a digital video recorder (DVR). The only requirement is power and broadband internet service at the location, as well as a wireless router if you want true wireless flexibility. The recorded video gets stored securely offsite in the Alarm.com Operations Center so there is never a threat of video being destroyed onsite. With standalone video surveillance you would be able to remotely log in from a computer, PDA, or cell phone to view live video footage or recorded clips and receive notification of new recorded video.

Product Includes:

  • Access live and recorded video clips via the internet using iPhone, Blackberry, Android or other supported mobile device
  • View live video from one or more of the cameras simultaneously and remotely pan/tilt cameras
  • Receive alerts with optional video attachments whenever new video is recorded
  • Customize recording settings based on events, video motion detection, or time of day
  • Record and store video securely on Alarm.com's remote servers (no local DVR or computer required)
  • Cameras include built-in 802.11/WiFi connectivity

Alarm.com ADC-V610PT Product Specifications:


  • Dimensions (D x W x H): 81.28 x 83.82 x 99.06 (mm), 3.2 x 3.3 x 3.9 (in)
  • Weight: 10oz (283.50g)
  • Live Resolution Options: 640x480, 320x240, 176x144
  • Recording Resolution Options: 640x480, 320x240
  • Operation temperature: 32° to 104°F (0° to 40°C)
  • Live Quality: High, Medium and Low compression options
  • Recording Quality: High, Medium and Low compression options
  • Recording Compression: MPEG-4
  • Image Sensor: ¼" CMOS, Progressive Scan
  • Iris: Fixed, f=4.5mm, F2.8
  • Field of View: 43.6° x 33.4° (Horizontal x Vertical)
  • Low-Light Sensitivity: 1.0 lux at F2.0
  • Image Adjustments: Brightness, Contrast, Saturation, Sharpness, Exposure
  • Pan/Tilt Range: +45 to -45 Pan, +22 to -35 Tilt
  • Video Motion Detection: 3 Windows, Adjustable sensitivity and threshold
  • Digital Input Trigger: Yes
  • Ethernet Connection: 10/100 Mbps RJ-45
  • Wireless Protocol: 802.11 b/g
  • Wireless Encryption: WEP, WPA or WPA2
  • Password Authentication: "Digest" authentication
  • Simultaneous Viewers: 5
  • Privacy Button: Yes
  • Operating Humidity: 20% ~ 80% relative humidity
  • Max Power Consumption: 12VDC at 1.1Amps
