CT601 - Videofied Wireless Door/Window Alarm Contact

CT601 - Videofied Wireless Door/Window Alarm Contact
CT601 - Videofied Wireless Door/Window Alarm Contact
Item# CT601

Please Note: The Videofied CT601 wireless door/window alarm contact has been discontinued and replaced by the IDC601 model number.

Videofied CMA601 Product Description:

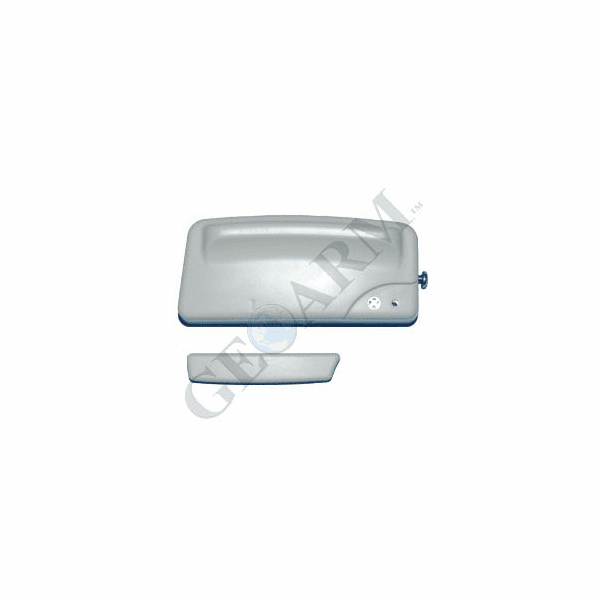

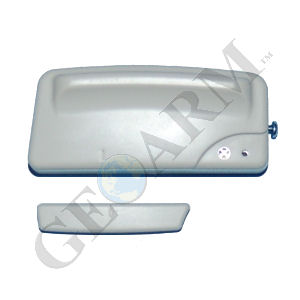

The Videofied CMA601 is a battery-operated wireless door/window contact that is compatible with Videofied control panels. A door/window contact is intended for use in detecting the opening and closing of doors, windows, or cabinet doors/drawers. When the Videofied system is armed and the door/window is opened, the sensor transmits an alarm signal. The control panel receives this signal and transmits it to GeoArm's Central Station where the operators respond accordingly.

The CMA601 door/window contact is powered by (1) AA cell 3.6V lithium battery, which is included with this item. Typical battery life is four years under normal conditions. The CT601 comes backed by RSI Video Technologies' 2 year limited warranty.

Videofied CMA601 Product Specifications:


Physical Properties

  • Dimensions (L x W x D): 80 x 35 x 23 (mm) or 3.125" x 1.375" x 1" (in)
  • Material: Plastic, ABS-ULVO
  • Magnet: Alnico 5
  • Weight: 40g/1.4oz (without batteries)
  • Power Requirements: (1) 3.6V Battery
  • Battery Type: Lithium LS14500
  • Battery Life: Up to 4 Years
  • RF Technology: S²View©
  • Radio Type: Spread Spectrum Bidirectional RF
  • Operating Frequency: 868/915/920 MHz
  • Transmission security: AES encryption algorithm
  • Supervision: Polled Signal Every 8 Minutes
  • Antenna: Integrated
  • Tamper Detection: Wall and Cover Tampered
  • External Terminal Input Type: Normally Closed (NC)
  • Working Modes: (1) Internal Reed Switch Only, (2) External Input Only, (3) Internal Switch and External Input
  • Mode Selection: Jumper Wire on (3) Position Terminal Block
  • Maximum External Wire Length: 16m/50ft.
  • Operating Temperature: 0° - 40°C (32° - 104°F)
  • Maximum Relative Humidity: 70%, Non-Condensing
  • Installation/Mounting (Detector): (1) screw secures detector to base, (2) screws secure detector to mounting surface
  • Installation/Mounting (Magnet): (2) screws secure magnet to mounting surface
  • Spacing: Maximum 10mm (3/8) in gap between detector and magnet
  • Approvals: FCC (CT601)
