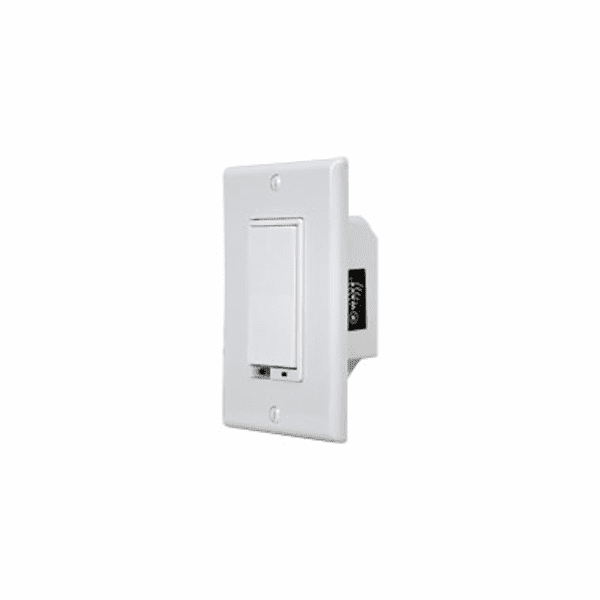

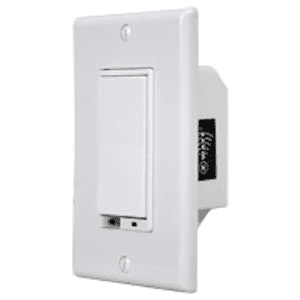

The 2GIG-WD1000Z-1 is a wall mounted dimmer that allows for remote ON/OFF control and dimming of connected lights connected to the 2GIG control panel. The smart dimmer switch is easily wired in place of a standard wall dimmer, and requires a Neutral connection. The WD1000Z-1 dimmer has a field replaceable trim ring - the color of the device can be altered with the Trim ring kit model in black, brown, and almond. Unique to Nortek Security & Control, the Auto-Sense feature allows for local lamp activation independent of the Z-Wave controller status.
Maximum Load: 1000 Watts for control of permanently installed lighting fixtures only (Not for control of receptacles)
Signal (Frequency): 908.42 MHz
Range: Up to 100 feet line of sight between the wireless controller and/or the closest Z-Wave device
Input: 120v 15A 60Hz
Network wide inclusion
Scene: Command class
Requires a Neutral connection
Auto Sense allows for local lamp activation independent of the Z-Wave controller status
Fits in standard J-box
Decorator wall plate included
Replaceable trim ring design
Also available in 500W (Part #WD500Z-1)
Note to Installers: When installing a Z-Wave 3-Way Light setup utilizing Nortek Security & Control products, you will need a Load Bearing switch (WS15Z-1, WD500Z-1 or WD1000Z-1) and a non-load bearing WT00Z-1. Multiple WT00Z-1 switches can be utilized to control multiple Load Bearing devices. Please refer to the linked Technical Bulletin on Z-Wave 3-Way Light Switch Setup for more information.
