RFK5508 - DSC LED Hardwired Alarm Keypad with 433 MHz Transceiver (for DSC PowerSeries Control Panels)

RFK5508 - DSC LED Hardwired Alarm Keypad with 433 MHz Transceiver (for DSC PowerSeries Control Panels)
RFK5508 - DSC LED Hardwired Alarm Keypad with 433 MHz Transceiver (for DSC PowerSeries Control Panels)
Item# RFK5508

Average Customer Rating:
Read Review(s) | Write a Review

Please Note: The DSC RFK5508 hardwired alarm keypad with 433 MHz transceiver has been discontinued without replacement.

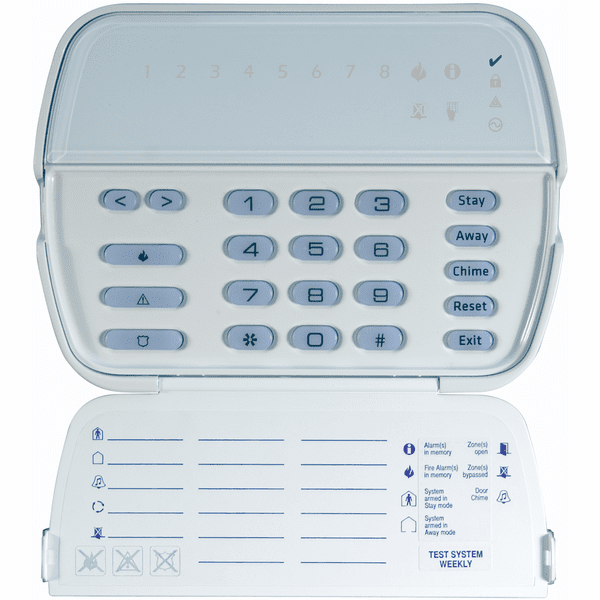

DSC RFK5508 Product Description:


The DSC RFK5508 is a LED hardwired 8-zone alarm keypad with built-in 32-zone wireless receiver that is compatible with the DSC PowerSeries control panels. The RFK5508 keypad is designed with a clean, unobtrusive look that homeowners welcome and installers will appreciate for their easy programming and installation.

The DSC RFK5508 keypad an input/output terminal that can be programmed to operate as a zone input, programmable output or as a low temperature sensor. The keypads also include adjustable backlit keys that address low-light situations. The RFK5508 full-message keypad supports eight languages, global partition status and full, 32-character programmable phrases.

To simplify usage, the RFK5508 keypad features five programmable keys for easy one-button activation of system functions. The default tasks assigned to the five function keys are stay arming, away arming, door chime, smoke detector reset and quick exit. With the quick exit function there's no need to disarm and re-arm the system every time an occupant leaves the house or lets the dog out, for example. DSC offers a large portfolio of reliable 433 MHz wireless devices and detectors to help make your toughest installations simpler. The integrated DSC approach has resulted in an unparalleled spectrum of unique interchangeable component alternatives. They can be configured for every circumstance, providing safe, reliable protection.

You should mount the RFK5508 keypad where it is accessible to designated points of entry and exit. Select a dry and secure location. The RFK5508 keypad can be used on security systems with up to 64 zones.

Product Features:

  • Modern, slim-line landscape keypad
  • Enlarged keypad buttons
  • 1 keypad zone input/PGM output
  • Connects to control panel via 4-wire Keybus
  • 5 programmable function keys
  • Input/Output terminal can be programmed to operate as a zone input, programmable output or as a low temperature sensor
  • 3 one-touch emergency keys
  • Adjustable backlight and keypad buzzer
  • Wire channel
  • Dual wall-mount and front cover tamper
  • Easy-to-install mounting hinge
  • Surface or single-gang box mount
  • AC status ICON
  • Multiple door chime per zone
  • 8 hardwired zones
  • Supports 32 wireless zones and 16 wireless keys
  • Backed by DSC's 1-year limited manufacturer's warranty

DSC RFK5508 Product Specifications:


  • Dimensions: 6 1/16" x 4 7/16" x 13/16" (154 mm x 113 mm x 20.5 mm)
  • LCD Viewable Area: 3 9/10" x 15/16" (99 mm x 24 mm)
  • Current Draw: 125 mA (Max)
  • Voltage Rating: 12 VDC Nominal
  • Operating Environment: 14° to 131°F (-10° to 55°C)
  • Relative Humidity: 93% Maximum (non-condensing)
  • Plastic Enclosure Protection Degree: IP30, IK04
  • Frequency: 433.92 MHz

DSC RFK5508 Product Includes:


  • One Power keypad
  • Four mounting screws
  • 2 end-of-line resistors
  • Keypad inner door labels
  • 1 tamper switch
  • Installation instructions

DSC RFK5508 Product Compatibility:


  • PC580
  • PC585
  • PC1555MX
  • PC1565
  • PC1616
  • PC1832
  • PC1864
  • PC5005
  • PC5008
  • PC5010
  • PC5015
  • PC5016
  • PC5020
